AT-OMNI-121 / AT-OMNI-122
34
Basic Conguration Tutorial

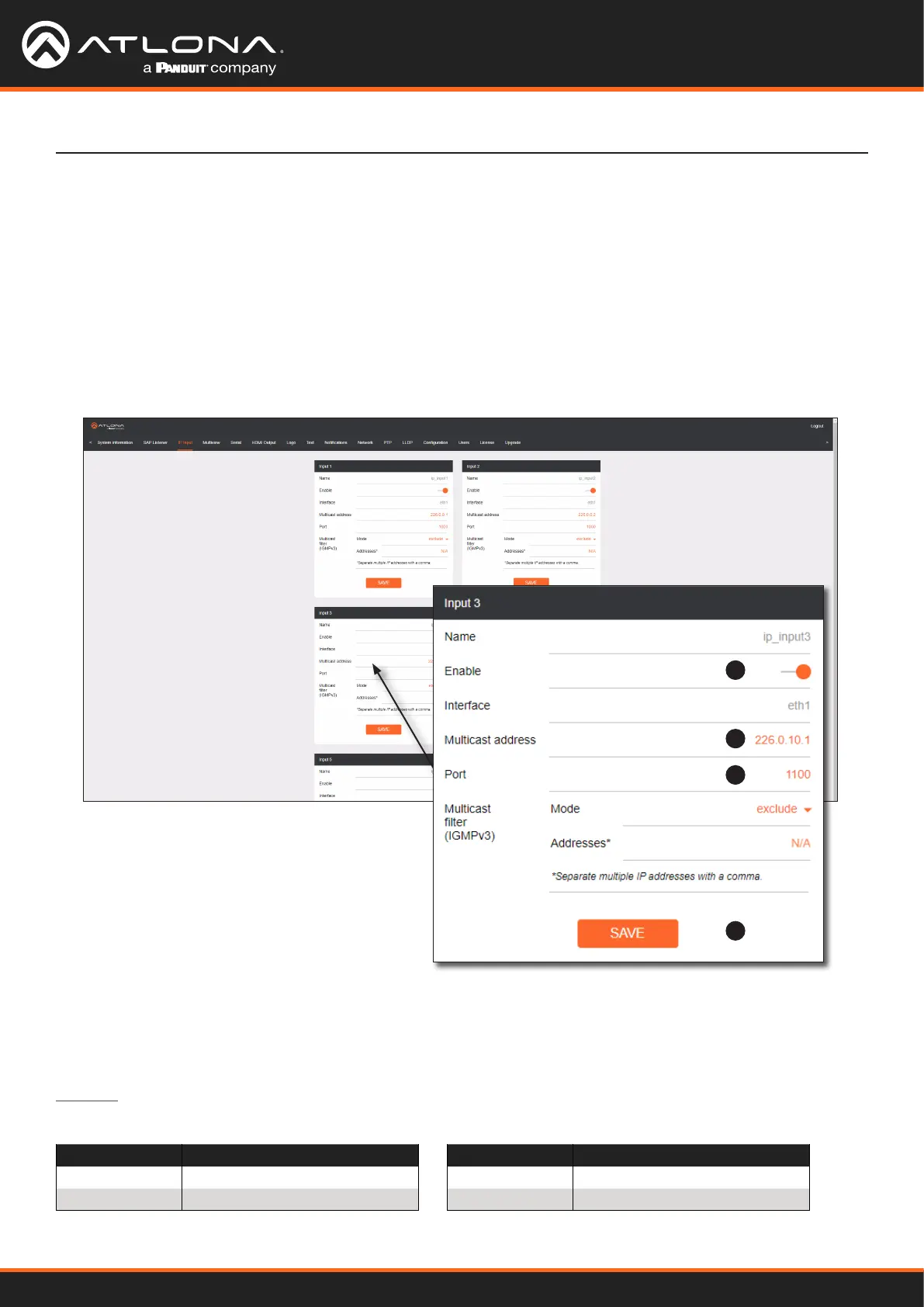

1. Locate the Input 3 window group and verify that the Enable toggle switch is enabled. When enabled, the toggle
switch will be orange. Perform the same procedure for the Input 4 window group.
2. Under the Input 3 window group, enter 226.0.10.1 in the Multicast address eld. Under the Input 4 window
group, enter 226.0.10.2 in this eld. These multicast IP address are the same addresses that were specied
under the Audio > Destination IP address eld for the encoders.
3. In the Port eld, enter 1100 under both Input 3 and Input 4 window groups. These are the same port settings
that were entered under the Audio > UDP Port section of the encoder.
4. Click the SAVE button, under the Input 3 and Input 4 window groups to commit changes.
1
2
3
4
Audio Conguration
Although there is no hard and fast rule for which Input window groups should be used for video, audio, and/or
control, it can be helpful to visualize the Input window groups as columns and rows to better organize the IP data.
Here, each column of Input window groups represents an encoder.
Input Conguration Notes
Table 2.3 - Video and Audio information for each encoder.
Input Multicast Address
Input 1 Video (226.0.0.1:1000)
Input 3 Audio (226.0.10.1:1100)
Input Multicast Address
Input 2 Video (226.0.0.2:1000)
Input 4 Audio (226.0.10.2:1100)
Encoder #1 Encoder #2
