CE840 User Manual
12

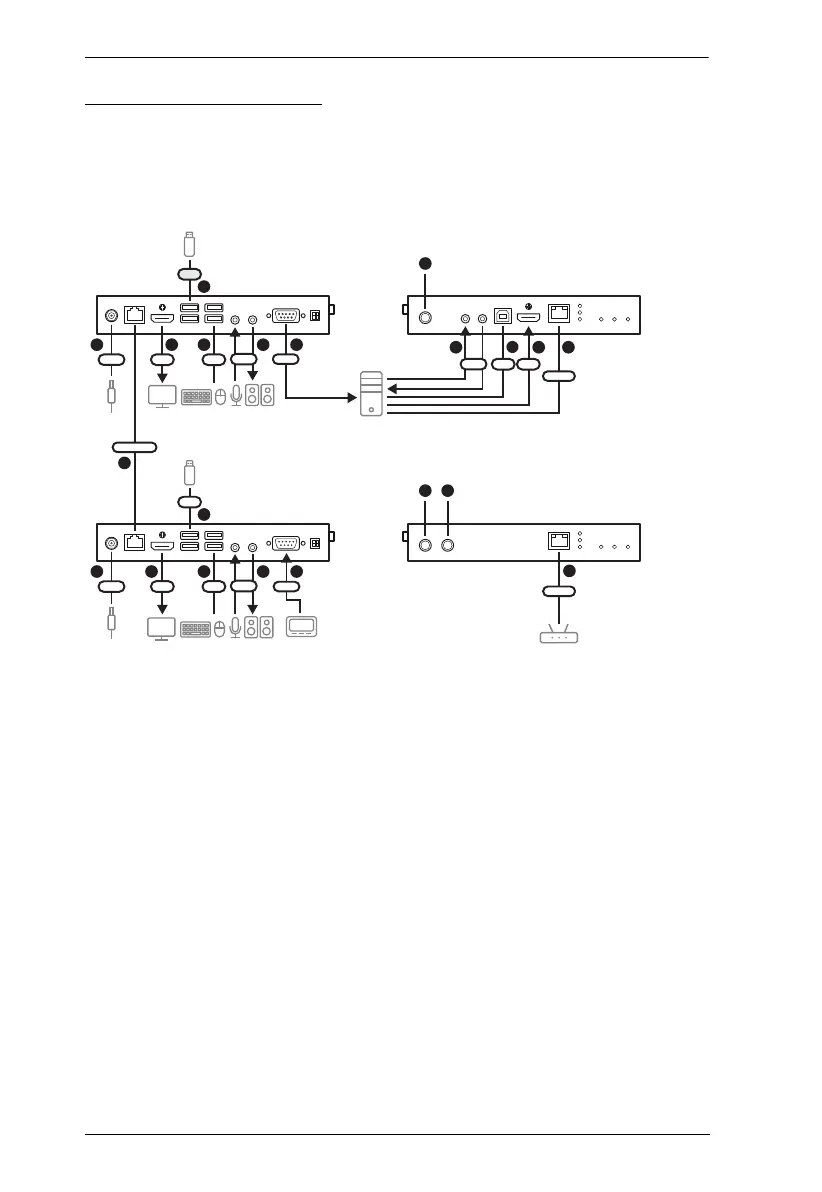

Connecting the Device
Before you proceed with the setup, make sure that all the equipment to be
connected is powered off and then follow the procedure below to safely install
your devices.
1. Connect one end of the supplied microphone cable to the audio input jack
located on the front of the CE840L, and the other end to a local computer.
Do the same using the supplied speaker cable for the audio output jack.
2. Connect the supplied USB cable to the USB Type-B port on the CE840L,
and the other end to a USB Type-A port on the local computer.
3. Connect the supplied HDMI cable to the HDMI input port on the CE840L,
and the other end to a local computer.
4. Connect one end of an Ethernet cable to the Ethernet port on the CE840L,
and the other end to a local computer.
5. Connect one end of an Ethernet cable to the HDBaseT output port on the
CE840L, and the other end to the HDBaseT input port on the CE840R.
6. Connect up to two HDMI-enabled monitors to the HDMI output ports on
the CE840L and CE840R via HDMI cable(s).
CE840L
Rear View
CE840R
Rear View
CE840R
Front View
CE840L
Front View
Network
Switch
Power
Adapter
Hardware /
Software Controller
PC
RS-232
USB HDMI
Audio
Ethernet
Power
HDMI USB
HDBaseT 3.0
USB
Audio
RS-232
Ethernet
1 3 4
9
10
11
12b
87
7
6
2
Monitor Mic
USB
Flash Drives
Speakers
Power
Adapter
Power
HDMI USB
Audio
12a
87
5
6
MouseKeyboard
USB
7
Monitor Mic SpeakersMouseKeyboard
USB
Flash Drives
107
7
