Chapter 2: Motherboard information
• The M.2 SSD module is purchased separately.
• This socket supports M Key and 2242/2260/2280 storage devices.
• We recommend using a PH1 screwdriver with a torque of 2.0 +/- 0.2 kgf.cm
when tightening the screw.

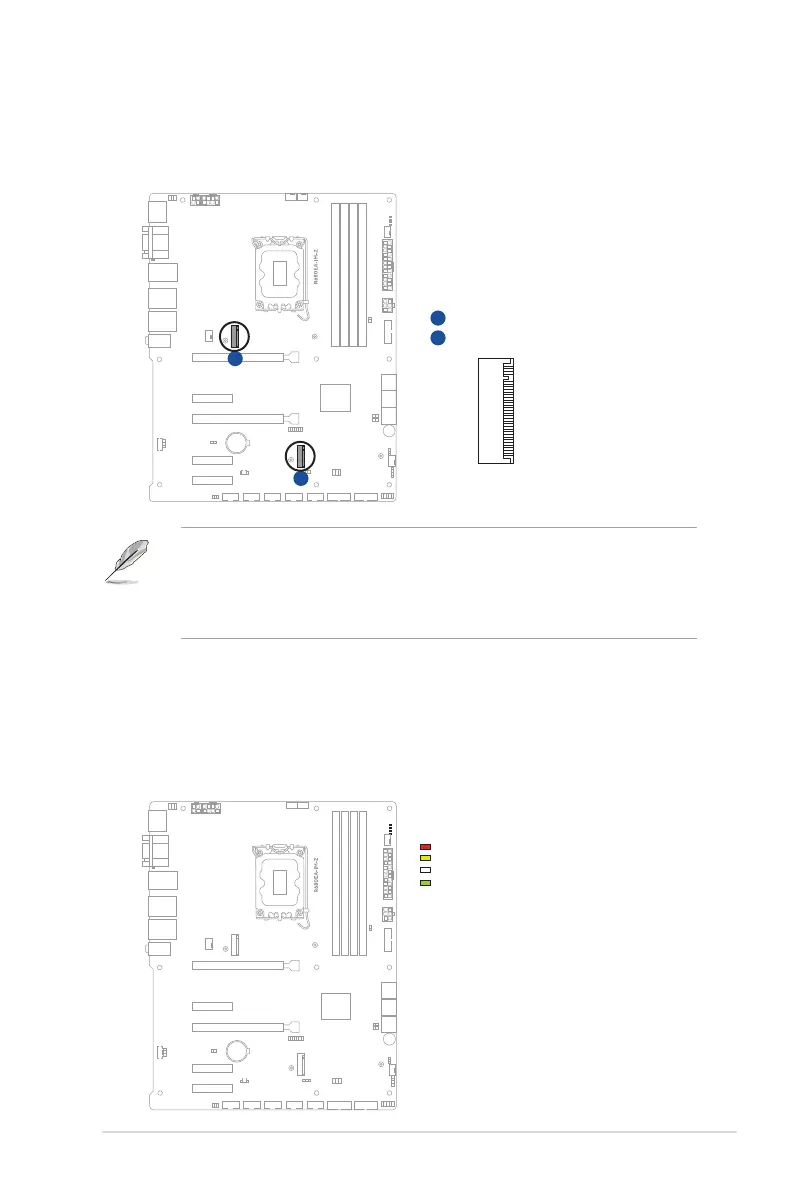

3. M.2 Slots (M.2(SOCKET3))
These slots allow you to install M.2 SSD modules and support PCIE and SATA
modes.
M.2_2(SOCKET3)
M.2_1(SOCKET3)
A
B
A
B
4. Q-LEDs
The Q-LEDs check key components (CPU, DRAM, VGA, and booting devices)
during the motherboard booting process. If an error is found, the critical
component’s LED stays lit up until the problem is solved.
Q-LEDs
CPU (RED)
DRAM (YELLOW)
VGA (WHITE)
BOOT (YELLOW GREEN)
