R680EA-IM-Z
2-20
Do not forget to connect the fan cables to the fan headers. Insufficient air flow
inside the system may damage the motherboard components. These are not
jumpers! Do not place jumper caps on the fan headers!

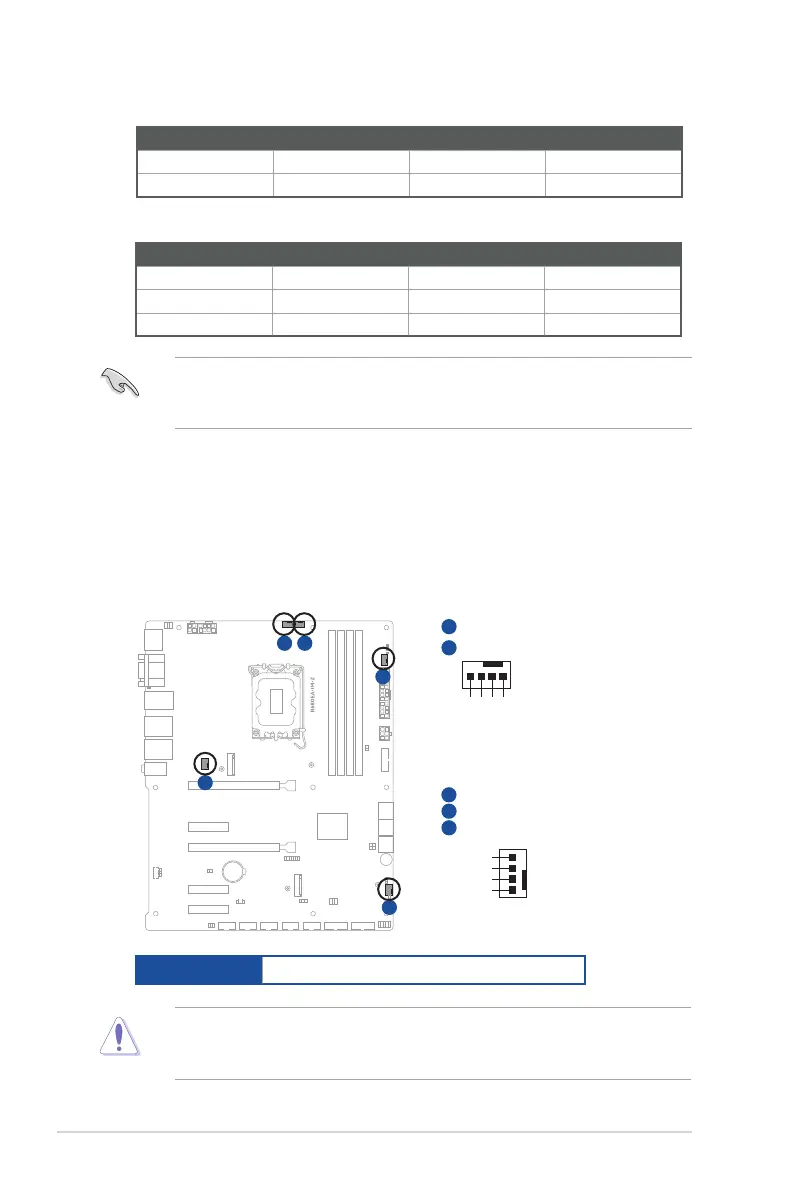

2. CPU and Chassis Fan headers (4-pin CPU_FAN, 4-pin CPU_OPT, 4-pin CHA_
FAN1-3)
Connect the fan cables to the fan headers on the motherboard, ensuring that
the black wire of each cable matches the ground pin of the header.
Connector type WAFER HD 4p, 2.54mm pitch, S/T
CHA_FAN1
C
A B
C
D
E
D
CHA_FAN2
E
CPU_OPT
CHA_FAN3
A
CPU_FAN
B
CPU FAN PWM
CPU FAN IN
CPU FAN PWR
GND
CHA FAN PWM
CHA FAN IN
CHA FAN PWR
GND
PIN 1
PIN 1
Pins Signal Pins Signal
1 GND 3 +12V in
2 GND 4 +12V in
DC Mode ATX12V_2
We recommend that you use a PSU with a higher power output when configuring
a system with more power-consuming components. The system may become
unstable or may not boot up if the power is inadequate.
Pins Signal Pins Signal
1 +12V in 4 GND
2 +12V in 5 GND
3 +12V in 6 GND
PCE_PWR
