R680EA-IM-Z
2-22

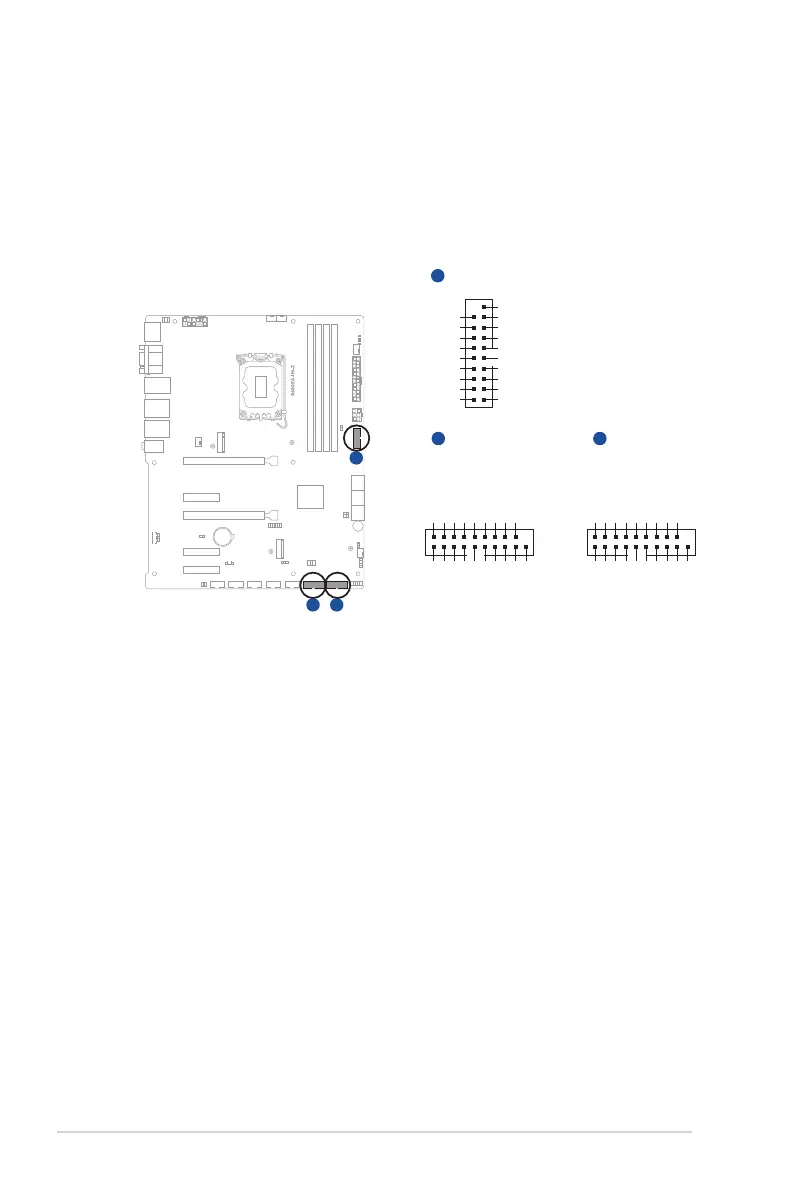

5. USB 3.2 Gen 1 connectors (20-1 pin U32G1_56, U32G1_78, U32G1_910)
Connect a USB 3.2 Gen 1 module to any of these connectors for additional
USB 3.2 Gen 1 front or rear panel ports. These connectors comply with USB
3.2 Gen 1 specifications and provide faster data transfer speeds of up to
5 Gbps, faster charging time for USB-chargeable devices, optimized power
efficiency, and backward compatibility with USB 2.0.
A
B C
+5V_USB3_P56
S_U3RXDN5
S_U3RXDP5
GND
S_U3TXDN5
S_U3TXDP5
GND
S_USB_PN5
S_USB_PP5
GND
PIN 1
PIN 10PIN 11
+5V_USB3_P56
S_U3RXDN6
S_U3RXDP6
GND
S_U3TXDN6
S_U3TXDP6
GND
S_USB_PN6
S_USB_PP6
U32G1_56
A
GND
S_USB_PP9
S_USB_PN9
GND
S_U3TXDP9
S_U3TXDN9
GND
S_U3RXDP9
S_U3RXDN9
+5V_USB3_P910
PIN 1PIN 10
PIN 11
S_USB_PP10
S_USB_PN10
GND
S_U3TXDP10
S_U3TXDN10
GND
S_U3RXDP10
S_U3RXDN10
+5V_USB3_P910
U32G1_910
B
GND
S_USB_PP7
S_USB_PN7
GND
S_U3TXDP7
S_U3TXDN7
GND
S_U3RXDP7
S_U3RXDN7
+5V_USB3_P78
PIN 1PIN 10
PIN 11
S_USB_PP8
S_USB_PN8
GND
S_U3TXDP8
S_U3TXDN8
GND
S_U3RXDP8
S_U3RXDN8
+5V_USB3_P78
U32G1_78
C
