2.6.6.6 Power Supply Connectors
NOTE External power voltage, 12-20 (±5%) V DC, is dependent on the type of power supply
used. System power requirements depend on actual system configurations chosen by the integrator,
as well as end user expansion preferences. It is the system integrator’s responsibility to ensure an
appropriate power budget for the system configuration is properly assessed based on the system-
level components chosen.
CAUTION
There is no isolation circuitry between the external DC jack and the internal 2 x 2 power
connector. It is the system integrator’s responsibility to ensure no more than one power supply
unit is or can be attached to the board at any time and to ensure the external DC jack is
covered if the internal 2 x 2 power connector is to be used. Simultaneous connection of both
external and internal power supply units could result in potential damage to the board, power
supplies, or other hardware.

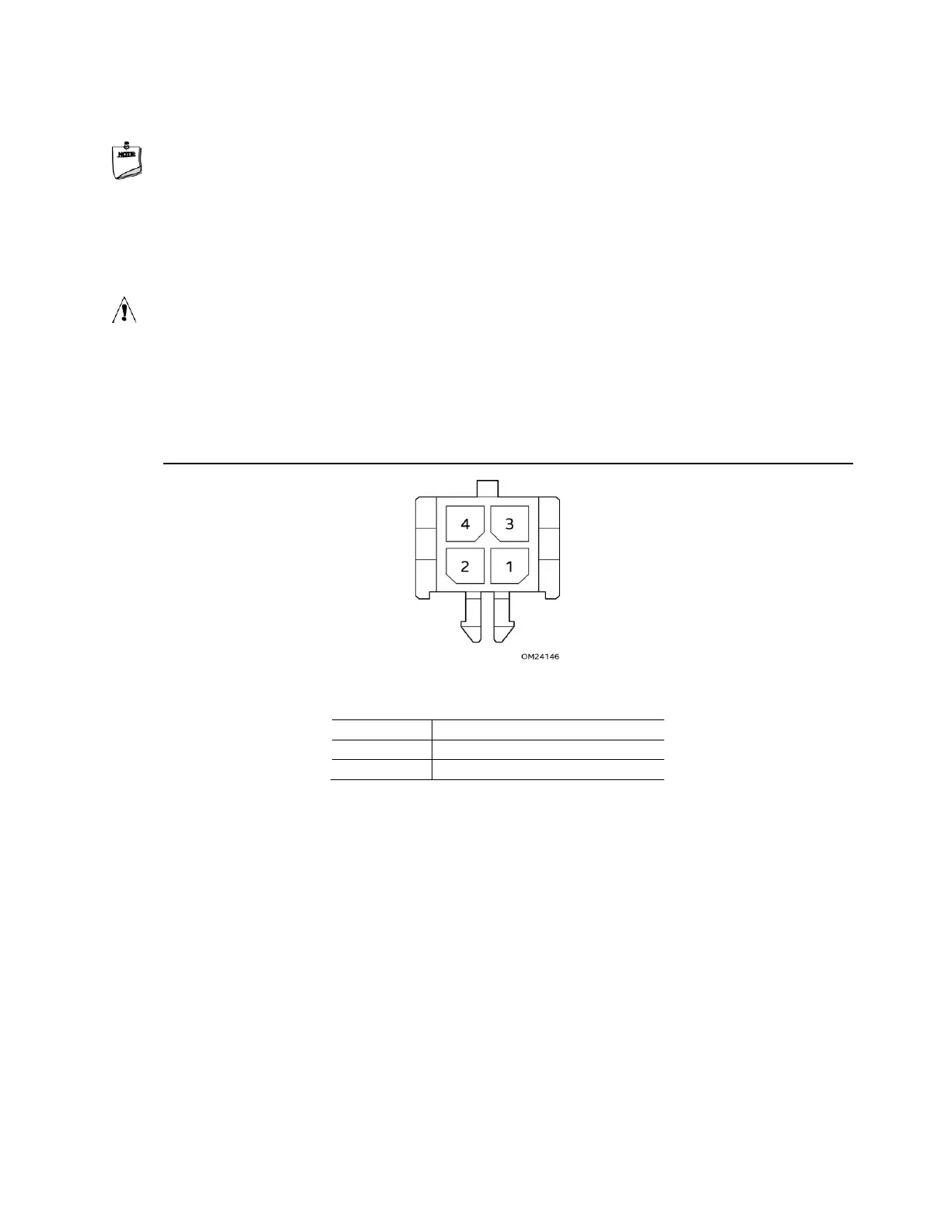

Table 21. Internal Power Supply Connector Pins
Pins
Signal Name
1,2
+12-20V
3,4
GND
The board has the following power supply connectors:
• External Power Supply – the board can be powered through a 12-20 V DC connector
on the back panel. The back-panel DC connector is compatible with a 5.5 mm/OD
(outer diameter) and 2.5 mm/ID (inner diameter) plug, where the inner contact is +12-
20 V DC, and the shell is GND. The maximum current rating is 10 A.
• Internal Power Supply – the board can alternatively be powered via the internal 12-20 V
DC 2 x 2 power connector, where pins 1 and 2 are +12-20 V DC and pins 3 and 4 are GND.
The maximum current rating is 10 A (5A per pins 1 and 2).
The connector used is Molex Micro-Fit (3mm pitch), right-angled, 4-pos/dual row (2x2).
