5.3. MID/HIGH
Audio frequencies above the Low & Mid/High Crossover Frequency are sent to the Mid/High
signal processing block, which consists of two independent processing engines, EQ, and a
transient shaper/tape clipper combination. The audio coming into this section is actually split
and recombined multiple times, so that filtering can be applied to limit the frequency ranges
of dry, saturated, and/or distorted audio.
5.3.1. Tape
The Tape Drive is an adjustable tape character based on Arturia's Mello-Fi tape saturation
effect. It has two controls:
• Drive: Amount of tape drive, from 0% to 100%. Double click for the default setting
of 0%.
• Level: The amount of makeup gain applied after the Tape drive stage. Settings
range from Off to 24 dB, default is 0 dB (unity gain).
5.3.2. Tone and Tilt
The Mid/High module has an easy-to-use EQ adjustment whose controls are called Tone and
Tilt.
• Tone comes after Tape and before Distortion. It's a bidirectional control with a
center (default) setting of 0.00% effect. Turning the control to the left (–100% to
0) causes the lower mids to be increased via a gentle "bell" filter with a center
frequency of 700 Hz. Turning the control to the right (0 to +100%) engages a
boost to the upper mids, a "bell" centered at 2500 Hz.
• Tilt comes after Distortion. It lets you adjust the overall brightness by controlling
the blend of "tilted" audio vs. the un-equalized signal. Its setting covers a range of
±12.0 dB, with a default of 0.00 dB (unity gain).

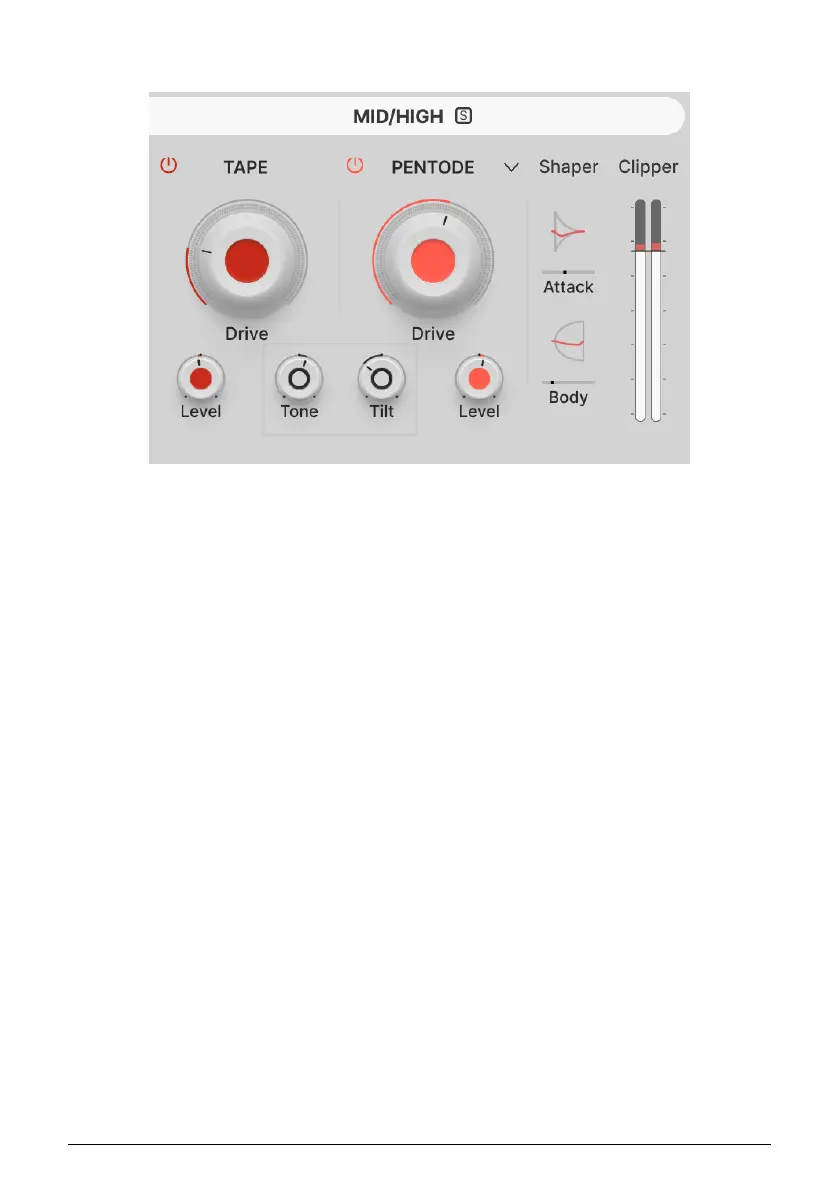

The MID/HIGH module
Arturia - User Manual Mix DRUMS - The Audio Path 34
