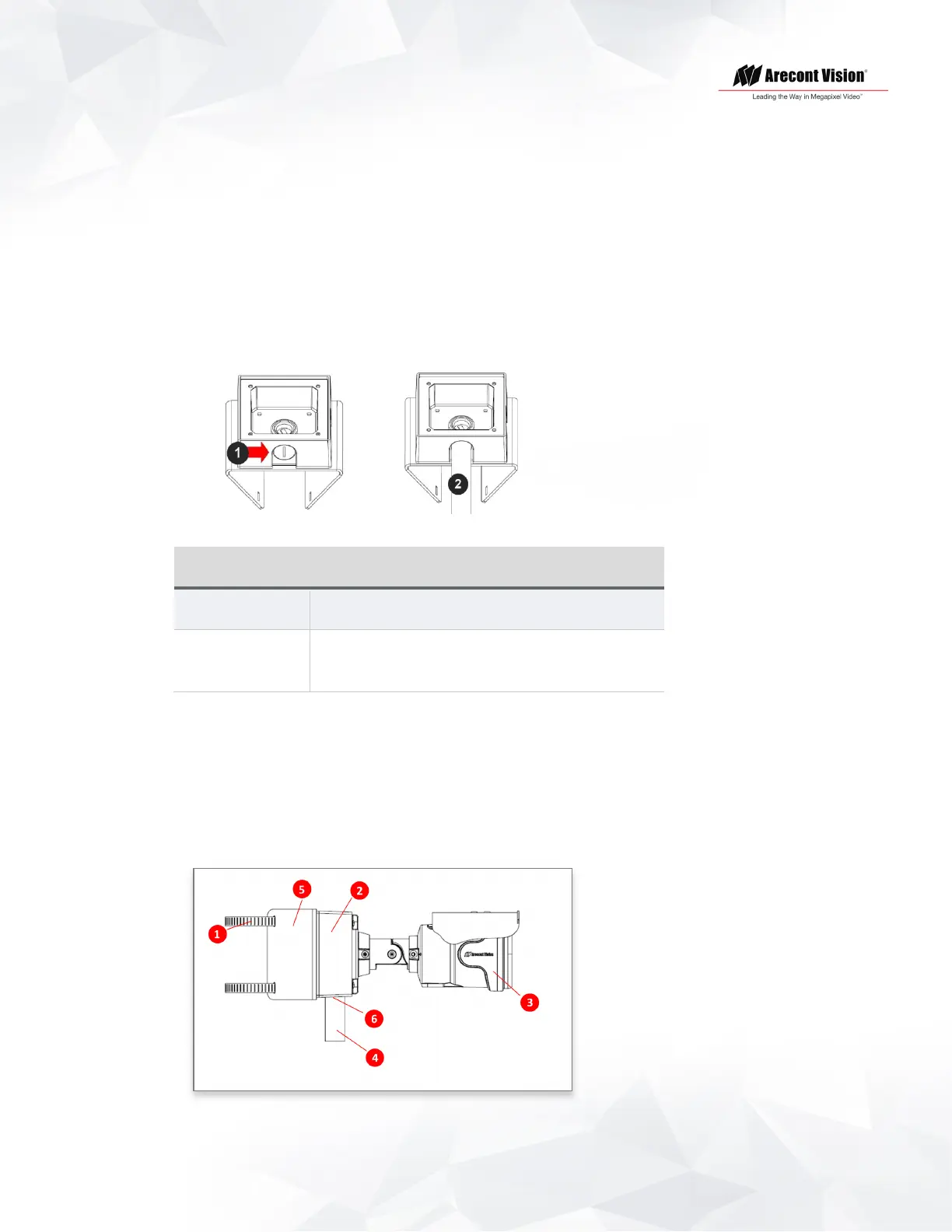

Contera Bullet | Installation Manual

Pole Mount

For a pole mount installation, the AV-JBA-W junction box adapter and AV-PMA pole mount are

required (sold separately).

1. Using the Mounting template, prepare the mounting provisions for the camera installation.

2. Attach the Junction Box Adapter to the Pole Mount Adapter.

3. Remove the conduit plug on the junction box adapter and connect ¾” NPT conduit to the junction

box adapter.

NOTE: Use silicon or water pipe seal tape to make sure no water leakage between conduit

pipe and junction box adapter.

4. Run the Ethernet cable and outside power cable (if necessary) through the Junction Box Adapter.

Ensure the gasket is seated properly.

5. Attach the Contera Bullet camera to the Junction Box Adapter (AV-JBA-W).

Reference #

Description

1 Remove conduit plug

2 Connect ¾” NPT conduit to junction box adapter

(ensure use of water seal tape)
