TCS-II API
5
EQ BYPASS: Removes the 550A Equalizer from the signal flow
• 550A Equalizer will not be accessible via rear panel interface jacks
• Illuminates when engaged
IMPORTANT NOTE: The 550A Equalizer has an “IN” switch that must be engaged in order
for the equalizer to effect the signal when the EQ BYPASS switch is not
engaged.
2.2.4 Insert
Engaging the INSERT switch will route the signal present at the INSERT RETURN jack to the input
of the 325 Line-Driver. When the INSERT switch is engaged, the signal flow will be as follows:
Insert ---> Output
INSERT: Routes the signal present at the INSERT RETURN jack to the 325 Line-Driver
input
• Replaces the SECOND EFFECT OUT as the input to the 325 Line-Driver
• Illuminates when engaged
NOTE: Since the signal can be externalized at multiple points in the audio path, the TCS-II
does not have a dedicated “insert send” output. PRE OUT, FIRST EFFECT OUT, and
SECOND EFFECT OUT are intended to be used as “insert sends” as needed.
2.3 512C Preamp Signal Flow

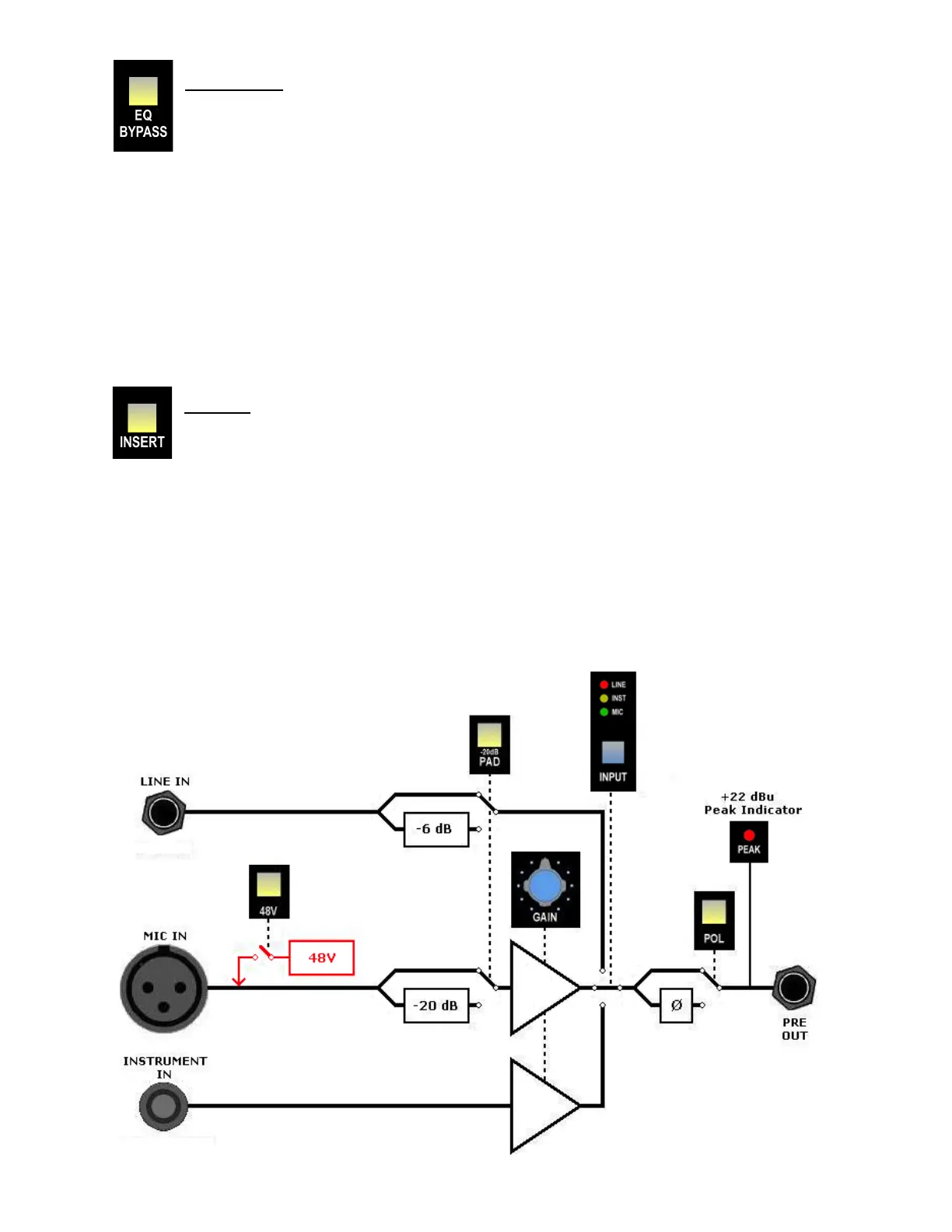

The block diagram below illustrates signal flow through the 512C Preamp section of the TCS-II with
no switches engaged.
