POST EQ: Moves the 527A Compressor to after the 550A Equalizer
• 527A will use Second Effect rear panel interface jacks
• Illuminates when engaged

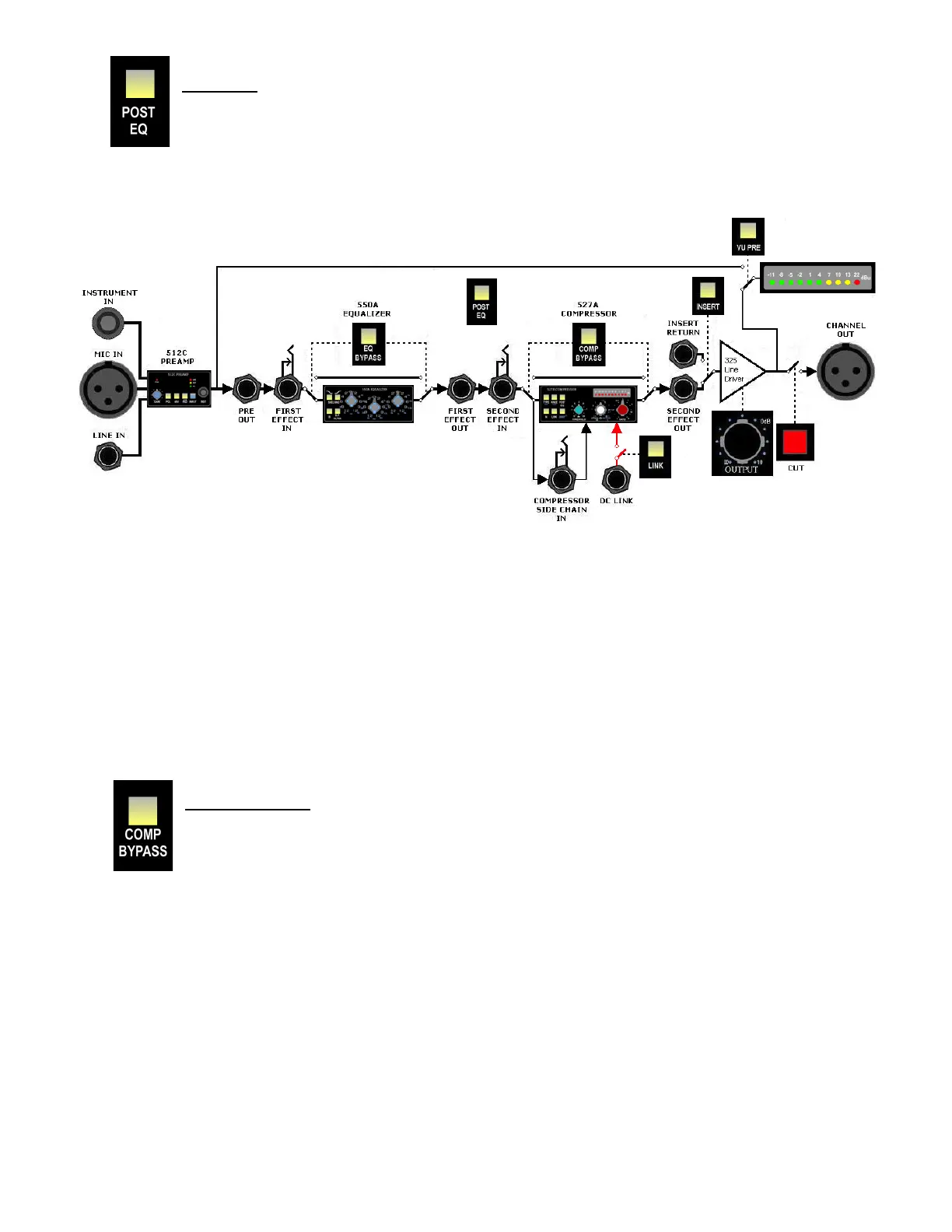

The block diagram below illustrates the TCS-II signal flow with the POST EQ switch engaged. No
other switches are engaged except the CUT button.
NOTE: The order of the First and Second Effect jacks on the rear panel does not change
with the compressor when the POST EQ switch is engaged.
2.2.2 Compressor Bypass
Engaging the COMP BYPASS switch will completely remove the 527A Compressor from the signal
path using a relay-based hard bypass. The 527A Compressor will be bypassed regardless of its
assigned position in the signal flow. When the COMP BYPASS switch is engaged, the signal flow
will be as follows:
512C Preamp ---> 550A Equalizer ---> Insert ---> 325 Output
COMP BYPASS: Removes the 527A Compressor from the signal flow
• 527A will not be accessible via rear panel interface jacks
• Illuminates when engaged
IMPORTANT NOTE: The 527A Compressor has an “IN” switch that must be engaged in order
for the compressor to effect the signal when the COMP BYPASS switch
is not engaged.
2.2.3 Equalizer Bypass
Engaging the EQ BYPASS switch will completely remove the 550A Equalizer from the signal path
using a relay-based hard bypass. When the EQ BYPASS switch is engaged, the signal flow will
be as follows:
512C Preamp ---> 527A Compressor ---> Insert ---> 325 Output
