12 - Connector for metadata

16 - Engraved zoom gear ring

18 - Zoom & iris index ring

15 – engraved iris gear ring

17 - Deco red ring

14 - PL mount

11 - Rear cap

13 - Rear Filter Sub assembly

For a standard installation on camera please proceed as below:

- Remove the rear cap (11) and make sure the rear filter (13) is clean. If not, please refer to maintenance (section 7).

- Make sure the Optimo Ultra Compact PL mount (14) and camera mount are perfectly clean.

- Mount the Optimo Ultra Compact on the camera mount with electronic pins (12) in the correct orientation. Install the lens with a

standard lens support unit. Lock the camera mount.

- Remove the front cap (1)

and make sure the front element (2) is clean. If not, please refer to maintenance (section 7).

- While using motors, to prevent damaging the lens mechanisms make sure the motors are calibrated properly before operating

them.

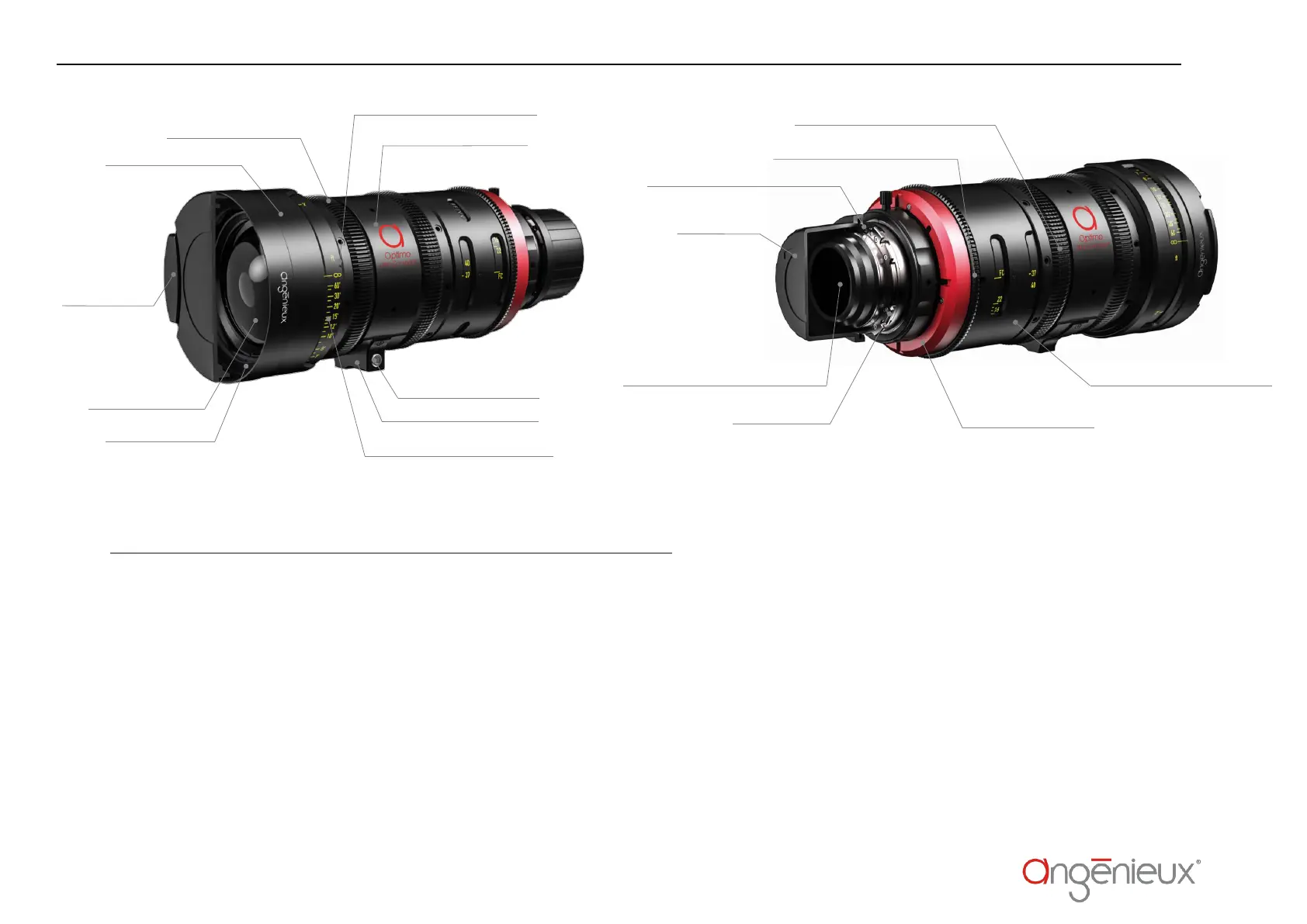

3 - General view and installation

1 - Front cap

2 - Front element

4 - Front brand ring

5 - Engraved focus ring

Swappable feet ◄►meter

(see more in section 7)

6 - Focus gear ring

7 - Lens support

8 - LEMO connector

9 - Focus ring screws (x3)

10 - Middle brand ring

3 - Front cover
