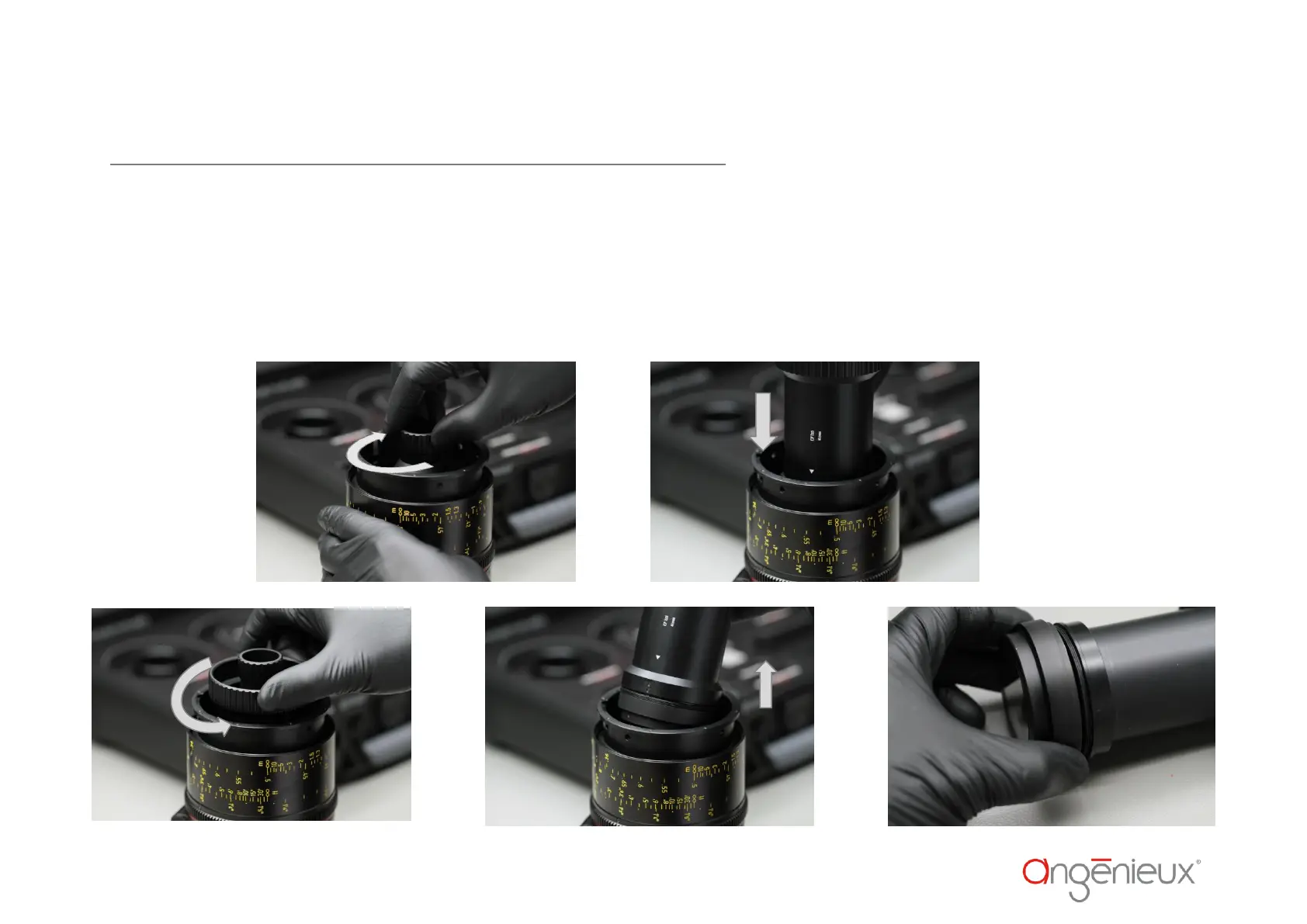

STEP 4: REMOVE IOP INTERNAL FILTER AND IRIS SUB-ASSEMBLY
THE BELOW PROCEDURE APPLIES FOR ALL OPTIMO PRIME SERIES
1 - Put in position the inner part of the IOP element spanner 66067121AA and rotate it anti-clockwise so it falls in the correct thread position.
2 - Rotate clockwise up to the end-stop. Do not apply more torque after you reached the end-stop.
3 - Put in position the outer part of the IOP element spanner and rotate it left or right so the two pins fit perfectly with the retainer holes.
4 - Untighten the IOP internal filter retainer.
5 - Pull out straightly the IOP element spanner. The IOP internal filter and the retainer will come out with the spanner.
6 - Untighten and remove the inner filter barrel from the IOP element spanner.
2
3
6
4
5
