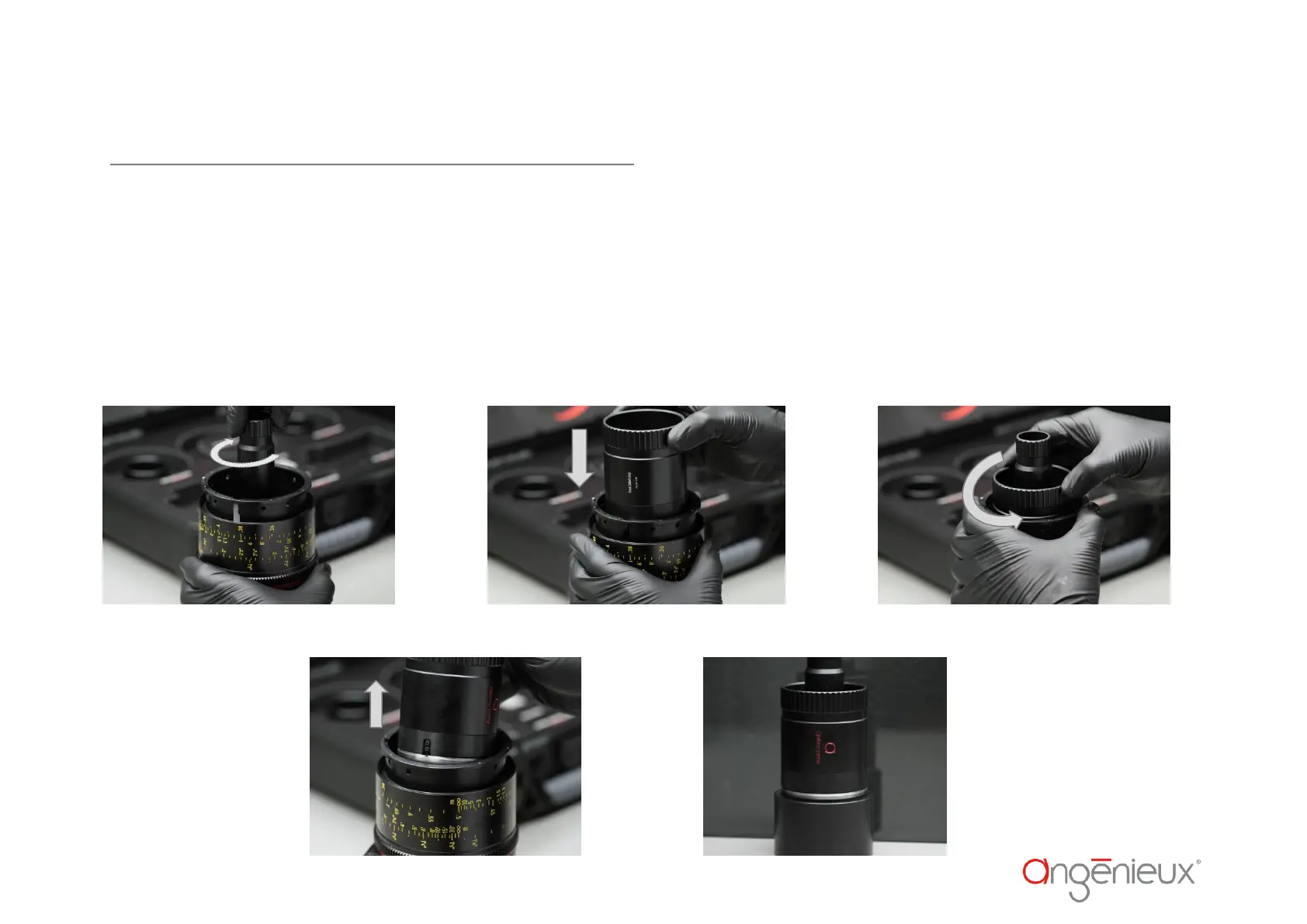

STEP 3B: REMOVE THE FOCUS GROUP - ONLY FOR F18-F21-F135
THE BELOW PROCEDURE APPLIES FOR ALL F18-F21-F135
1 - Put in position the inner part of the focus group spanner 66067115AA and rotate it anti-clockwise so it falls in the correct thread position.
2 - Rotate clockwise up to the end-stop. Do not apply more torque after you reached the end-stop.
3 - Put in position the outer part of the focus group spanner and rotate it left or right so the two pins fit perfectly with the retainer holes.
4 - Untighten the focus group retainer.
5 - Pull out straightly the focus group. As there is an o-ring around the focus group mechanics you need to pull out with enough force. The focus
group and the retainer will come out with the spanner.
6 - Put in a secure area the focus group with the spanner on onto the front group holder 66067075AA.
