MN-37234 (Rev. 0) 03/15 • Hot Food Drop-In Well • 35
SERVICE

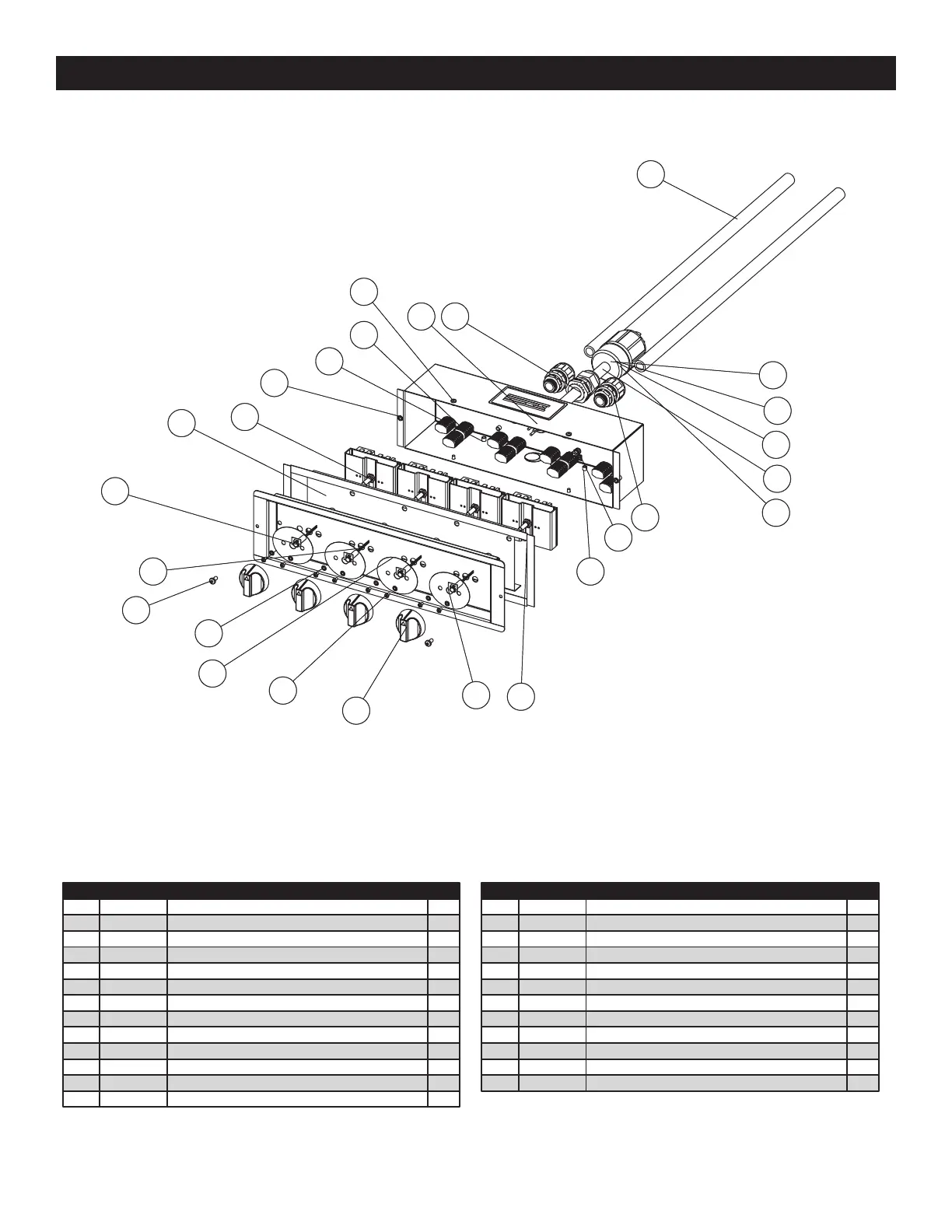

CONTROL SERVICE VIEW (400-HWI shown)
Item Part Description Qty
1 5014997 BS 1363 CORDSET FERRULE ASSEMBLY 1
1a 5016998 CH2-16P CORDSET FERRULE ASSEMBLY 1
1b CD-33840 CORDSET 15A 208-240V 1
1c CD-33366 CORDSET 6' 125V 30A 10/3
1d CD-3922 CORDSET-16AWG, 3/C, INT’L HARM 1
3 CC-36859 CONTROL 4
4 1015726 SHELL, CONTROL POD, 4 KNOB 1
5 SC-22271 SCREW, M4 x 0.7 x 6mm PAN 4
6 BU-33505 BUSHING, STRAIN RELIEF, 230V 1
7 BU-34606 BUSHING, STRAIN RELIEF, 120V, 208-240V 2
8 CR-34646 CONNECTOR-5 CONDUCTOR 12
9 KN-36424 KNOB, T-STAT CONTROL 4
10 LI-37215 LIGHT, INDICATOR 4
Item Part Description Qty
11 SC-22766 SCREW, M5 x 0.8 x 10mm PAN 2
12 NU-36234 NUT, M5, KEPS 2
13 PE-36566 PANEL OVERLAY 4
14 PG-35411 1/4" HOLE PLUG 2
15 SC-22500 SCREW 6-32 x 1/4" PAN HD 8
16 TA-24637 TAPE, VHB, FOAM, 1/2" WIDE 1
17 TU-33178 CONDUIT FLEX LIQUID TIGHT 2
19 WS-2768 WASHER, #6, LOCK 8
20 1017290 PLATE, FACE 1
21 1015807 BOX, REMOTE, DECOR FACE, 4 KNOB 1
22 CL-37245 CLIP, LIGHT MOUNTING 4
23 NU-23909 NUT, HEX INSERT M5 2
1
17
1
1c
1d
1a
1b
6
7
8
14
23
4
12
14
5
3
20
21
19
22
10
16
11
13
15
9
17
1
1c
1d
1a
1b
6
7
8
14
23
4
12
14
5
3
20
21
19
22
10
16
11
13
15
9
Part numbers and drawings are
subject to change without notice.
