MN-37234 (Rev. 0) 03/15 • Hot Food Drop-In Well • 33
SERVICE

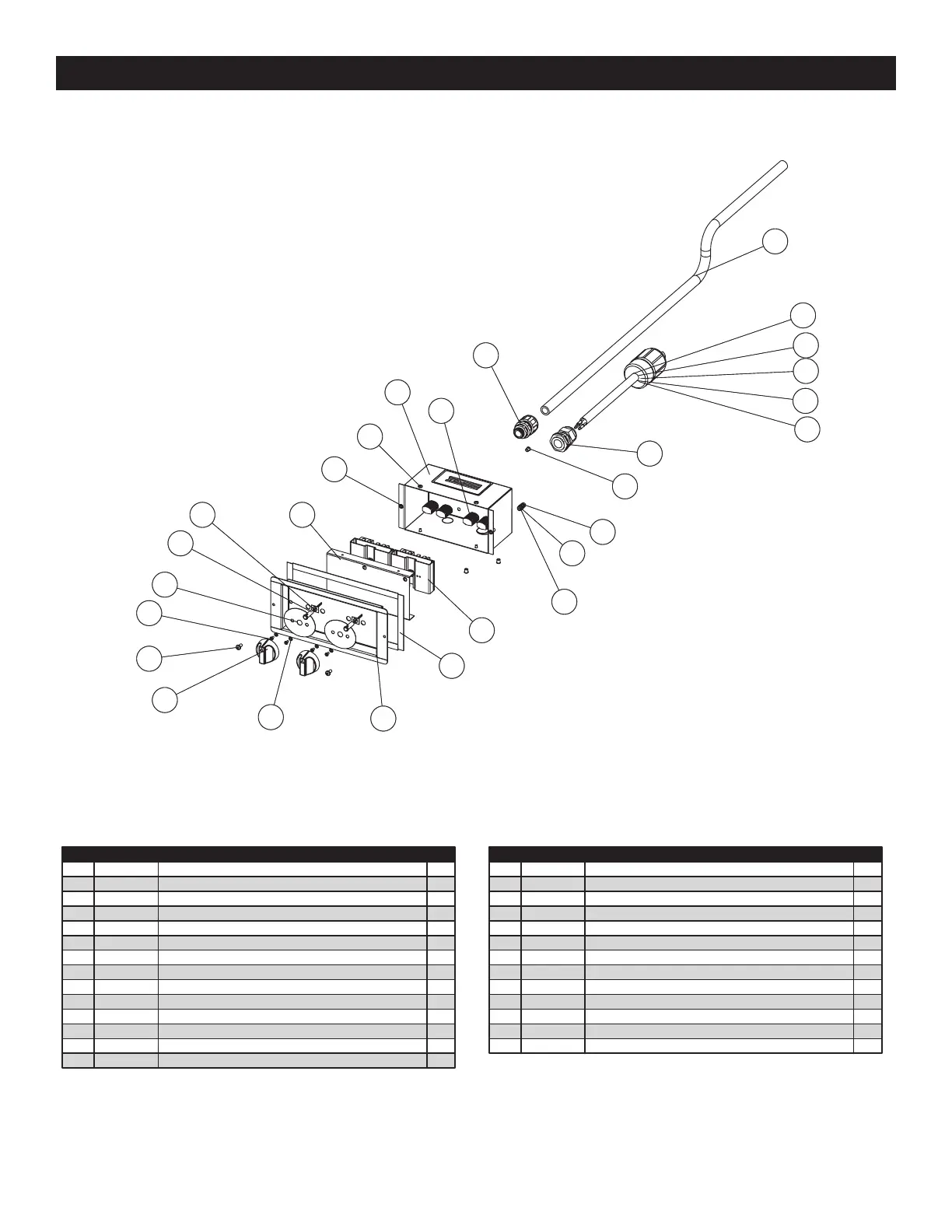

CONTROL SERVICE VIEW (400-HW shown)
Item Part Description Qty
1 5013668 NEMA L5-30P CORDSET FERRULE ASSEMBLY 1
1a 5014997 BS 1363 CORDSET FERRULE ASSEMBLY 1
1b 5016998 CH2-16P CORDSET FERRULE ASSEMBLY 1
1c CD-33840 CORDSET 15A 208-240V 1
1d CD-3922 CORDSET-16AWG, 3/C, INT’L HARM 1
2 1017288 PLATE, FACE 1
3 SC-22926 SCREW, M5 x 0.8 x 16mm HEX 1
4 CC-36859 CONTROL, DUTY CYCLE TIMING - SEE TABLE 2
5 CL-37245 CLIP, LIGHT MOUNTING 2
6 1015806 BOX, REMOTE, DECOR FACE 2 KNOB 1
7 1015724 SHELL, CONTROL POD, 2 KNOB 1
8 BU-33505 BUSHING, STRAIN RELIEF, 230V 1
9 BU-34606 BUSHING, STRAIN RELIEF, 120V, 208-240V 1
10 CR-34646 CONNECTOR-5 CONDUCTOR 4
Item Part Description Qty
11 KN-36424 KNOB, T-STAT CONTROL 2
12 NU-23909 NUT, HEX INSERT M5 2
13 NU-36234 NUT, M5, KEPS 2
14 PE-36566 PANEL OVERLAY 2
15 PG-35411 1/4" HOLE PLUG 3
16 SC-22766 SCREW, M5 x 0.8 x 10mm PAN 2
17 SC-22271 SCREW, M4 x 0.7 x 6mm PAN 4
18 LI-37215 LIGHT, INDICATOR 2
19 SC-22500 SCREW 6-32 x 1/4" PAN HD 4
20 TA-24637 TAPE, VHB, FOAM, 1/2" WIDE 4
21 WS-2768 WASHER, #6, LOCK 4
22 WS-22295 WASHER, FLAT M5 S/S
23 TU-33178 CONDUIT, FLEX, 6 FT 1
1
23
1d
1
1c
1b
1a
15
9
8
3
22
13
7
12
10
17
4
2
20
14
6
5
18
19
21
16
11
23
1d
1
1c
1b
1a
15
9
8
3
22
13
7
12
10
17
4
2
20
14
6
5
18
19
21
16
11
Part numbers and drawings are
subject to change without notice.
