MN-37234 (Rev. 0) 03/15 • Hot Food Drop-In Well • 32
SERVICE

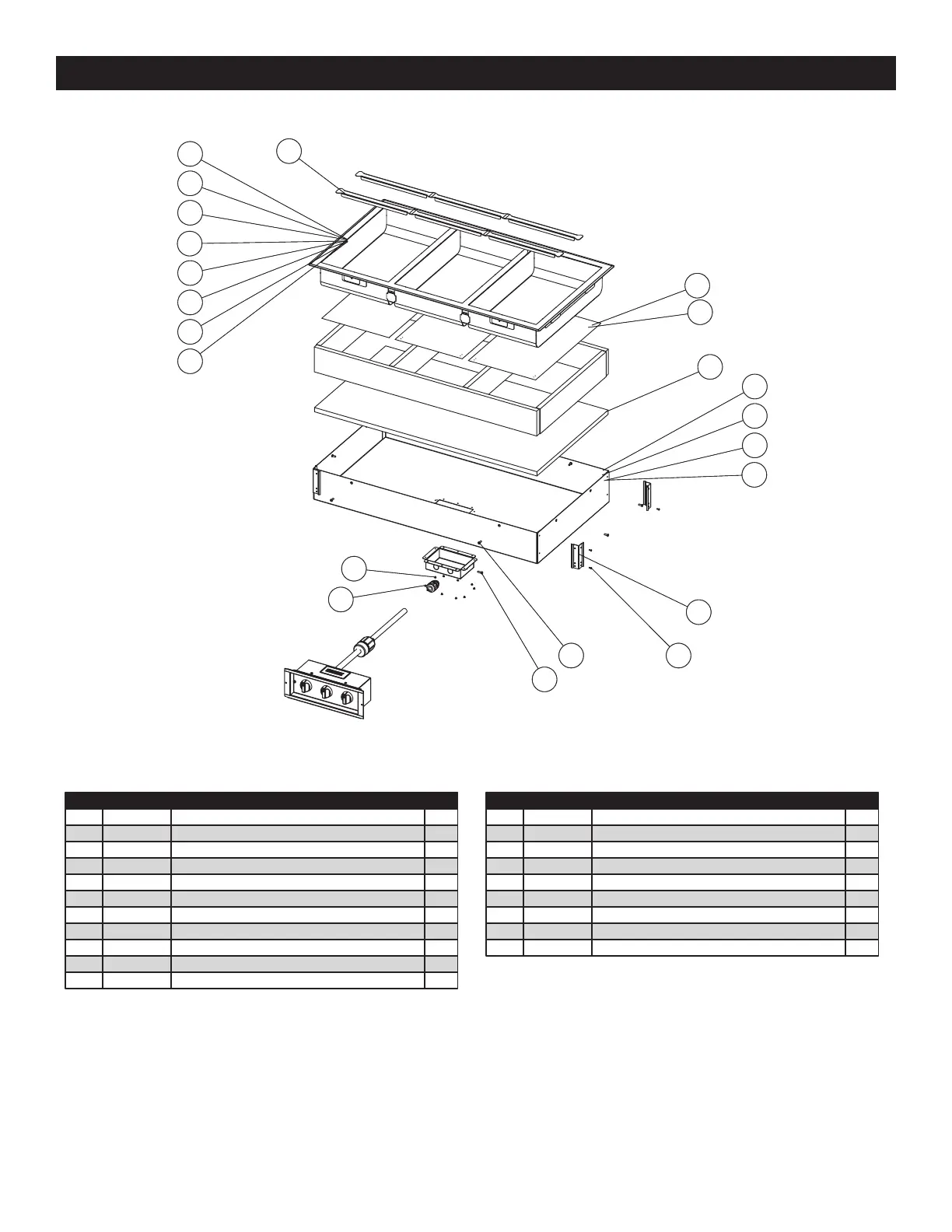

EXTERIOR SERVICE VIEW (300-HWI shown)
Item Part Description Qty
1 11318 PAN DIVIDER SHORT 6
2 5017216 WELDMENT, D6, STANDARD FLANGE 1
2a 5017615 WELDMENT, D4, STANDARD FLANGE 1
2b 5017692 WELDMENT, D643, STANDARD FLANGE 1
2c 5017696 WELDMENT, D443, STANDARD FLANGE 1
2d 5017705 WELDMENT, D6, LARGE FLANGE 1
2e 5017710 WELDMENT, D4, LARGE FLANGE 1
3 EL-36317 ELEMENT, FOIL HEATING PAD, 600W 3
3a EL-36860 ELEMENT, FOIL HEATING PAD, 810W 3
IN-24588 8# DENSITY, 39.3" x 21.8" x 1" 1
5 1015670 WRAPPER, 3 WELL, 6" DEEP 1
ItemPart Description Qty
5a 1016195 WRAPPER, 3 WELL, 4" DEEP 1
5b 1016205 WRAPPER, 3 WELL, 6" DEEP, 4/3 MODEL
5c 1016207 WRAPPER, 3 WELL, 4" DEEP, 4/3 MODEL
6 1017049 BRACKET, STANDOFF 4
RI-2097 #42 STAINLESS RIVET 9
8 SC-22281 SCREW, M5 x 0.8 x 16mm FLAT 8
9 SC-22926 SCREW, M5 x 0.8 x 16mm HEX
10 RI-27108 RIVET, SEALED 8
11 BU-34606 BUSHING, STRAIGHT, STRAIN RELIEF 1
1
1
1
7
4
7
9
5a
5
5c
5b
11
4
2d
2d
2e
2
2d
2b
2a
2c
3
3a
1
8 10
6
7
9
5a
5
5c
5b
11
4
2d
2d
2e
2
2d
2b
2a
2c
3
3a
1
8 10
6
Part numbers and drawings are
subject to change without notice.
