MN-37234 (Rev. 0) 03/15 • Hot Food Drop-In Well • 31
SERVICE

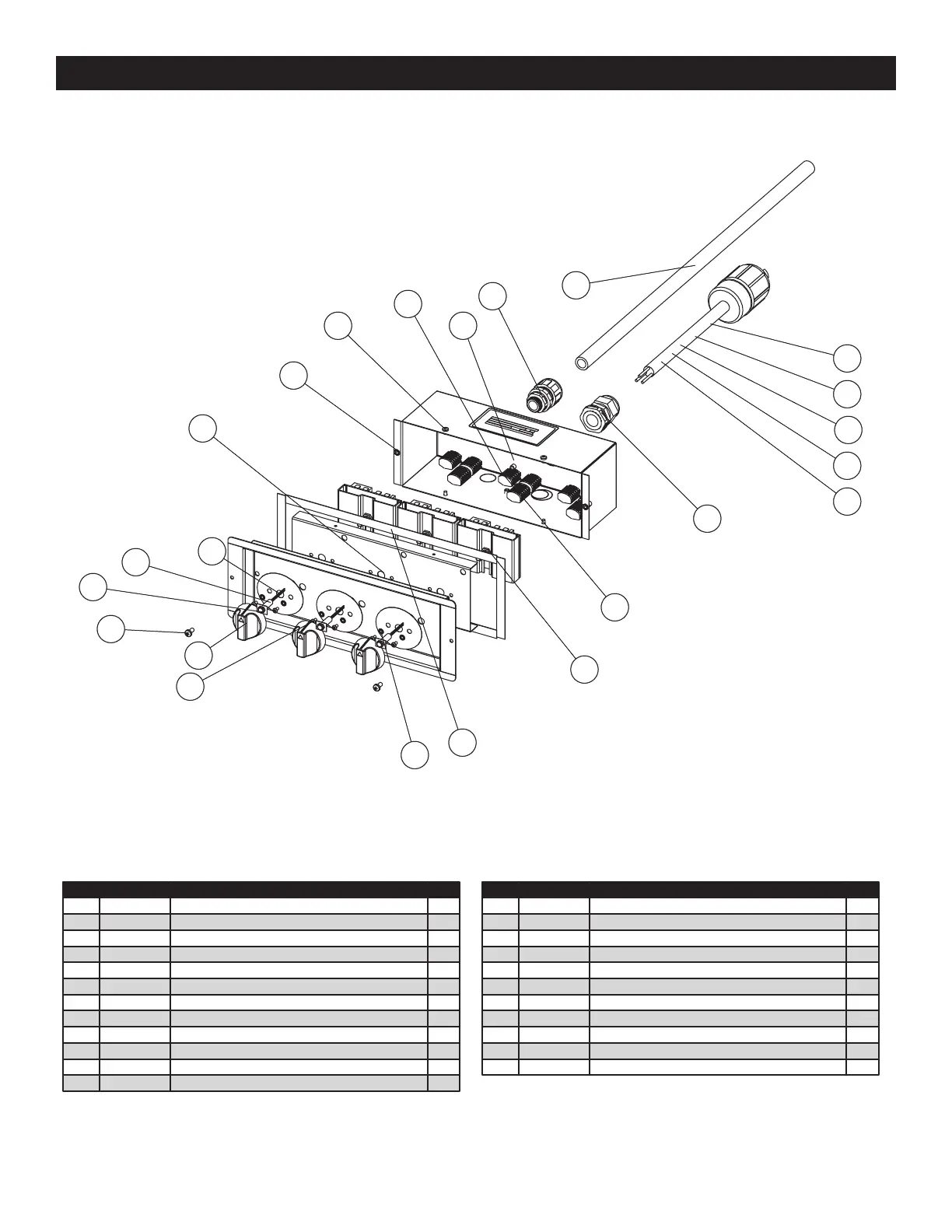

CONTROL SERVICE VIEW (300-HWI shown)
Item Part Description Qty
1 SC-22271 SCREW, M4 x 0.7 x 6mm PAN 4
2 CC-36859 CONTROL, 650F MAX 3
3 1015725 CONTROL POD SHELL 1
4 CL-37245 CLIP, LIGHT MOUNTING 3
5 BU-33505 BUSHING, STRAIN RELIEF 1
6 BU-34606 BUSHING, STRAIGHT, STRAIN RELIEF 1
7 CD-33366 CORDSET 6' 125V 30A 10/3
7a 5014997 BS 1363 CORDSET FERRULE ASSEMBLY 1
7b 5016998 CH2-16P CORDSET FERRULE ASSEMBLY 1
7c CD-33840 CORDSET 15A 208-240V 1
7d CD-3922 CORDSET-16AWG, 3/C, INT’L HARM 1
8 WS-2768 WASHER, #6, LOCK, SS 6
Item Part Description Qty
9 KN-36424 KNOB, T-STAT CONTROL 3
10 LI-37215 LIGHT, INDICATOR 3
11 SC-22766 SCREW, M5 x 0.8 x 10mm PAN 2
12 NU-36234 NUT, M5, KEPS 2
13 PE-36566 PANEL OVERLAY, CONTROL 3
15 SC-22500 SCREW, 6-32 x 1/4" PAN HEAD 6
16 TA-24637 TAPE, VHB, FOAM, 1/2" x 12.9" 1
17 TU-33178 CONDUIT FLEX LIQUID TIGHT 1
18 WS-22295 WASHER, FLAT M5 S/S 1
19 1017289 PLATE, FACE 1
20 NU-23909 NUT, HEX INSERT M5 2
1
17
7
7b
7c
7a
7d
6
5
20
3
12
18
1
2
19
16
13
15
9
8
11
10
4
17
7
7b
7c
7a
7d
6
5
20
3
12
18
1
2
19
16
13
15
9
8
11
10
4
Part numbers and drawings are
subject to change without notice.
