38 MN-29423 • Rev 6 • 02/18 • S-Series Hot Food Holding Cabinets
Service

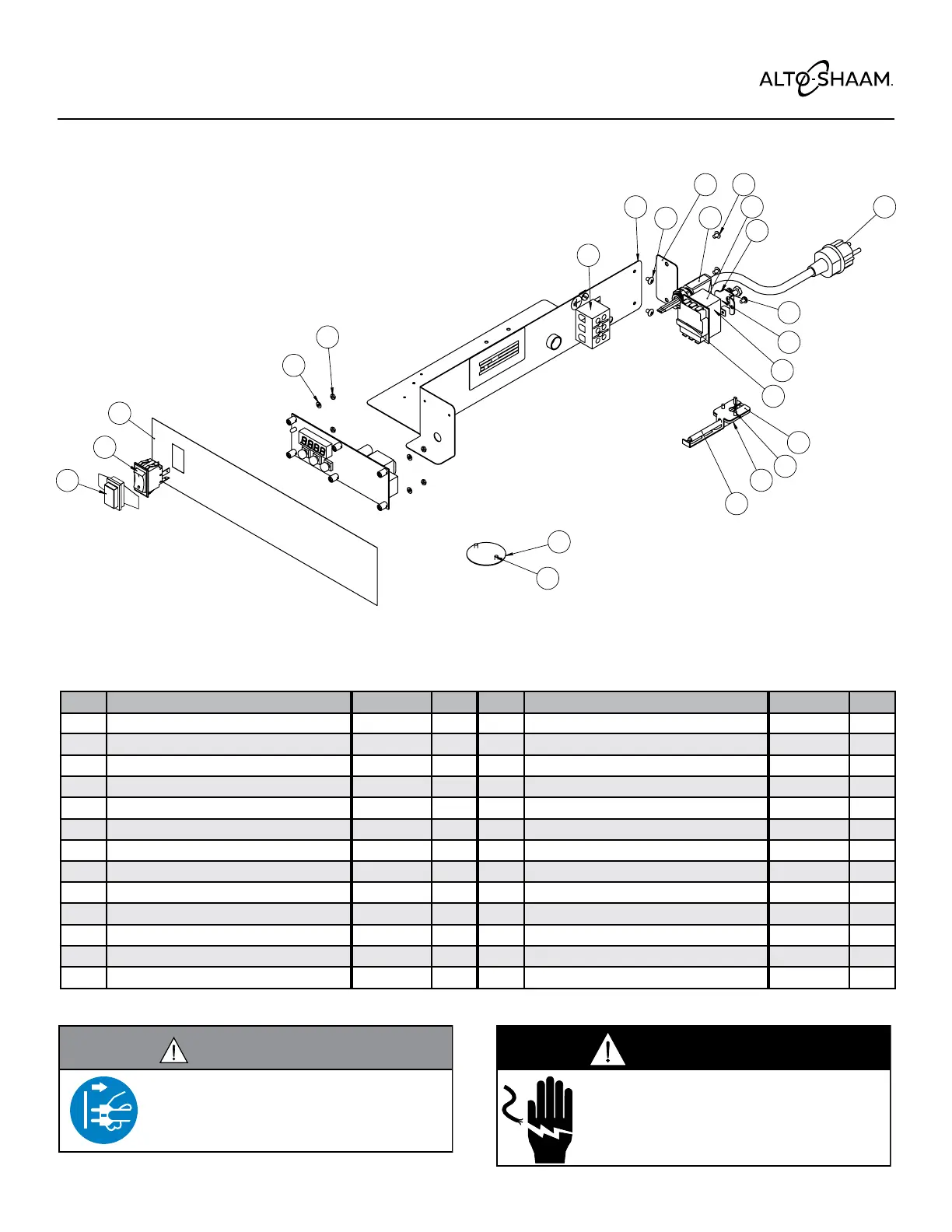

Electronic Components - 300-S
82
3
5
9
10
11
12
13
14
15
16
22
21
17
3
20
19
7
6
43
1
18
Part numbers and drawings are subject to change without notice.
Item Description Part No. Qty Item Description Part No. Qty
1 T-Block BK3019 1 11 Washer, Split Lock WS22302 2
2 Electric Chassis Assembly 5015058 1 12 Nut, Threaded Insert, M6 NU22770 1
3 Screw, 8-32 x 1/4" Phil SC2459 4 13 Bracket, Sensor Mtg. 1493 1
4 Switch Cover 11133 1 14 Screw, 6-32 x 3/8" Rnd Phh SC2254 2
5 Bushing, Strain Relief, 90°, Blk BU34898 1 15 Sensor Block BK29605 1
6 Hi-Limit Thermostat TT33476 1 16 Sensor, Oven Temperature SN38111 1
7 Hi-Limit Protection Cover 1003936 1 17 Probe Cover 1008807 1
8 Cordset 120V CD-3232 1 18 Switch Cover (230V only) CV38297 1
230V CEE 7/7 CD-3922 1 18 Switch, Rocker,125-277V, 20A SW34769 1
230V CH216P CD-36231 1 19 Panel, Overlay PE35188 1
230V BS 1363 CD-33925 1 20 Washer, 6-32, Flat, Nylon WS23148 4
9 Screw, Hhcs, M6 x 20 SC22924 1 21 Nut, 6-32 Hex, S/S NU2361 4
10 Washer, Flat WS22297 2 22* Screws, M4-0.7 x 6mm Phil SC22271 2
WARNING
To prevent serious injury, death, or property
damage, always disconnect the appliance
from the power source before cleaning
orservicing.
DANGER
To prevent serious injury, death, or property
damage, always lock‑out or post breaker
panel until service work has been completed.
*Not shown
