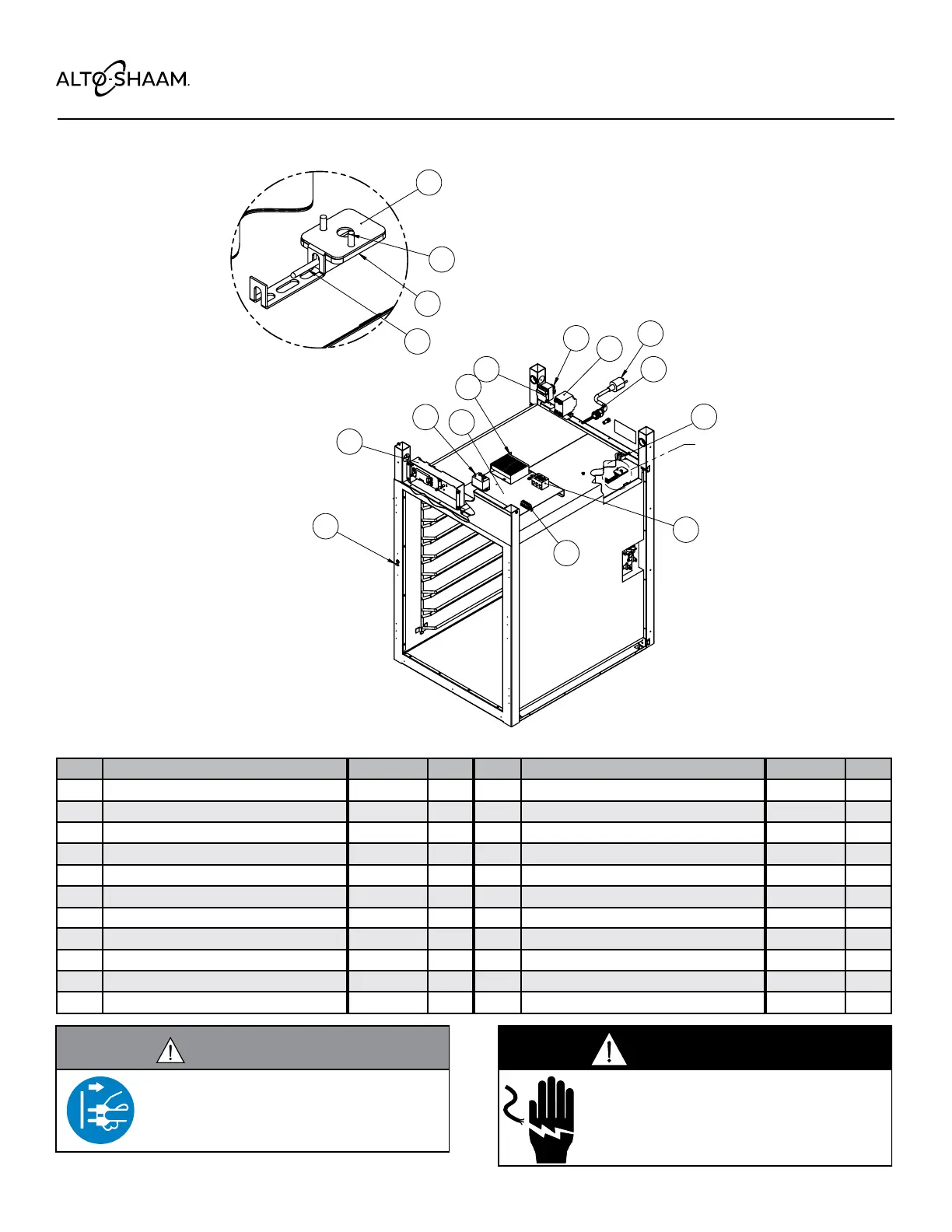

MN-29423 • Rev 6 • 02/18 • S-Series Hot Food Holding Cabinets 39
Service
B
14
15
16
17
B
1
13 4
5
3
2
12
10
6
7
11
9
8
Item Description Part No. Qty Item Description Part No. Qty
1 Hi-Limit Protection Cover 1003936 1 7 Terminal Strip TM33560 1
2 Switch, Circuit Breaker SW34769 1 8 Reed Switch (per door) SW33559 1
3 Cordset 120V CD3232 1 9 Control without Timers 5012946 1
208-240V CD3551 1 10 Relay RL33558 1
230V CEE 7/7 CD3922 1 11 Electric Chassis 5012122 1
230V CH216P CD36231 1 12 Power Supply Board BA38586 1
230V BS 1363 CD33925 1 13 T-Stat, Hi-Limit TT33476 1
230V AS/NZS 3112 CD38149 1 14 Sensor Guard 1493 1
4 Bushing, Straight, Strain Relief BU3964 1 15 Screw, 6-32 x 1/2, NC Phil, Flat SC2254 2
5 Terminal Block, Sensor BK33546 1 16 Block, Sensor Mounting BK29605 1
6 T-Block BK3019 1 17 Sensor SN33541 1
Deluxe Control Electronic Components
WARNING
To prevent serious injury, death, or property
damage, always disconnect the appliance
from the power source before cleaning
orservicing.
DANGER
To prevent serious injury, death, or property
damage, always lock‑out or post breaker
panel until service work has been completed.
Part numbers and drawings are subject to change without notice.
