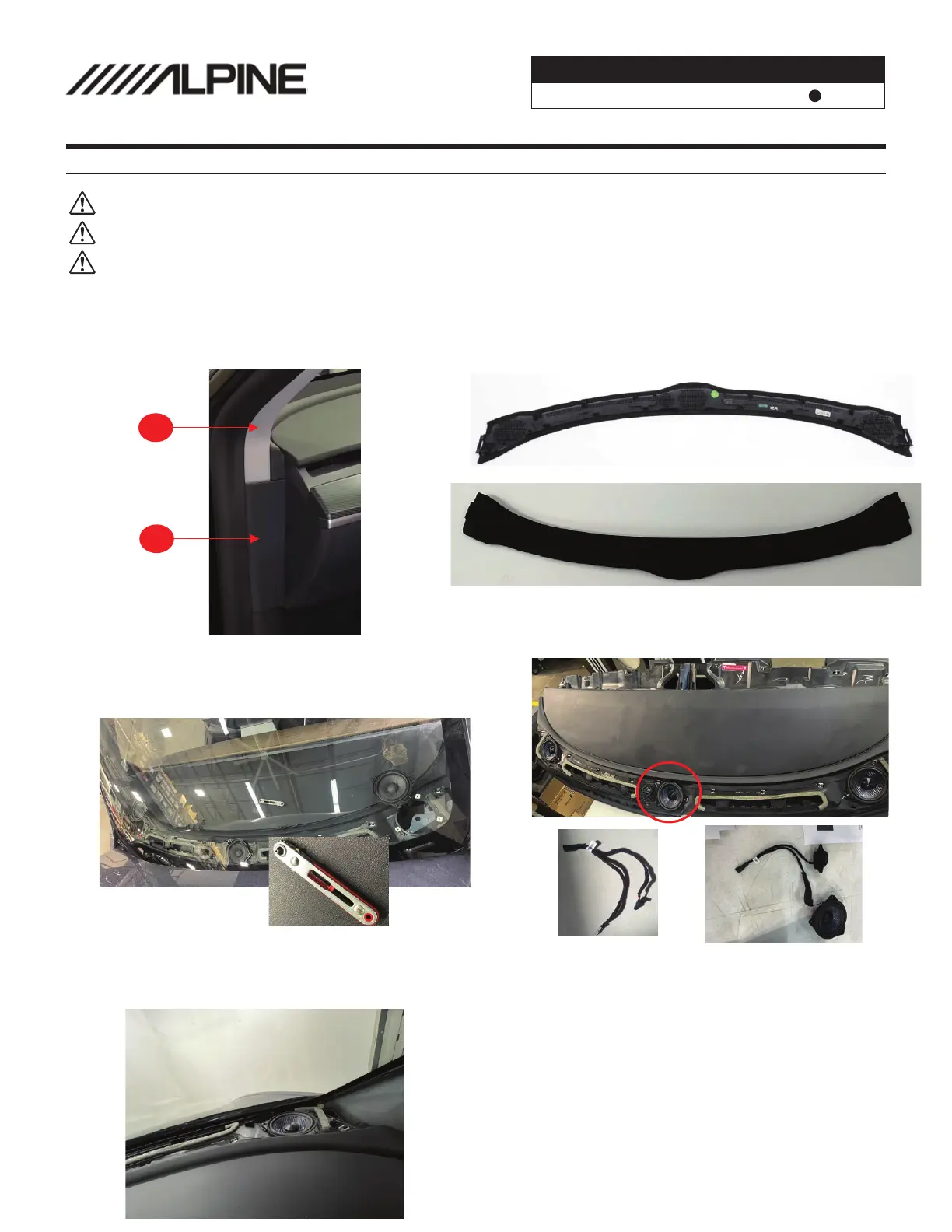

Dashboard Speaker Installation (EV-40MR-T)
IMPORTANT: For Optimal Sound Quality Sound Dampening Is Highly Recommended for Tesla Applications
1
Using a panel removal tool.
Remove dash side cover “A” followed by pillar cover “B” at
both sides of vehicle. Weather gasket can be peeled back
for easier aaccess
Use a Panel Removal Tool around the edge of the
dashboard speaker cover panel to release the factory
clips. Release the panel and pull upwards to detatch and
expose the center stage speakers.
2
3
Remove (3) T20 Torx bolts securing each factory speaker
Remove (2) T20 bolts securing the factory tweeter
Use T20 Torx. A Shallow Ratcheting Torx Bit is required.
4
If your vehicle is equiped with a center speaker connect
the Y-Harness between the center mid and tweeter &
Plug all speakers into the factory connectors
5
Secure all Alpine speakers to the dash by Re-installing all
remaining factory T20 Torx. After speakers are mounted
Install the dashboard speaker cover panel by applying
uniform pressure to engage the factory clips.
IMPORTANT: Re-install ALL Factory Plugs To Their Original Location, FAILURE TO DO SO CAN CREATE COMPUTER FAULTS.
FULLY POWER DOWN YOUR TESLA AND DISCONNECT BATTERY BEFORE CONTINUING. SEE POWER DOWN PROCEDURE
A
B
6
Re-install dash side cover “A” followed by pillar cover “B”
at both sides of vehicle.
