Tesla Model Y
PSS-TSLA 20240320v3
8/14

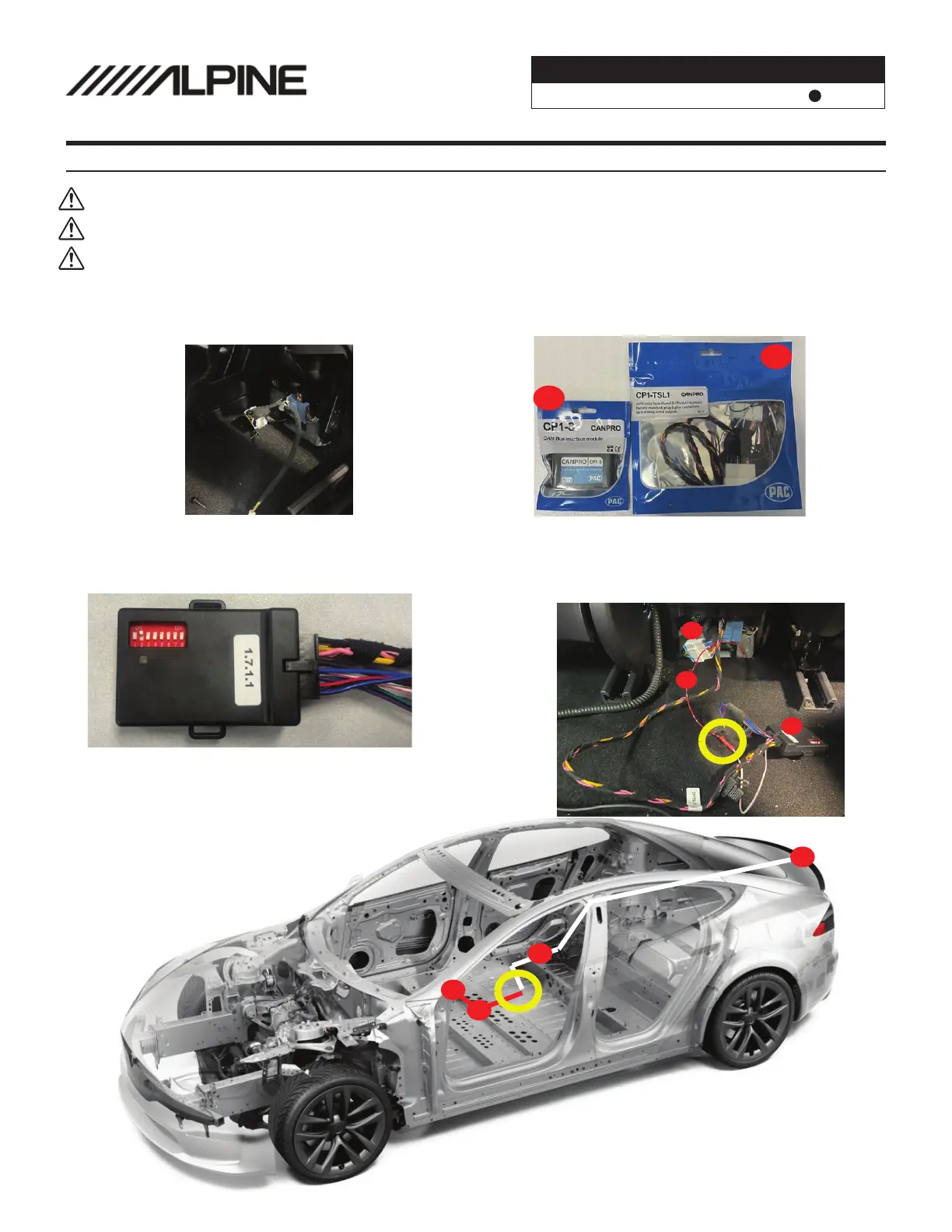

Installation Instruction (Power Harness)
IMPORTANT: For Optimal Sound Quality Sound Dampening Is Highly Recommended for Tesla Applications
1
Use a panel removal tool to remove the lower rear cover
of the center console, once removed this should reveal
two large plugs.
Locate and unpack the CP1-S CANPRO and CP1-TSL1
2
IMPORTANT: Re-install ALL Factory Plugs To Their Original Location, FAILURE TO DO SO CAN CREATE COMPUTER FAULTS.
FULLY POWER DOWN YOUR TESLA AND DISCONNECT BATTERY BEFORE CONTINUING. SEE POWER DOWN PROCEDURE
Connect Harness “K” black plastic molex end with
corresponding plug of CANPRO CP1-S Module “L” .
Set dipswitch 2 to ON position
3
Disconnect factory connectors and replace the white
plastic plugs from CP1-TSL1 “K” into the rear center
console Plugs. Trim the excess length wire from “M” and
crimp together with Output #1 from CP1-S “L”
4
J
K
L
Crimp Connector
M
K
L
L
K
Crimp Connector
M
When nished tuck all excess wiring and CANPRO
module into the rear center console compartment and
re-install the lower cover using factory clips.
5
