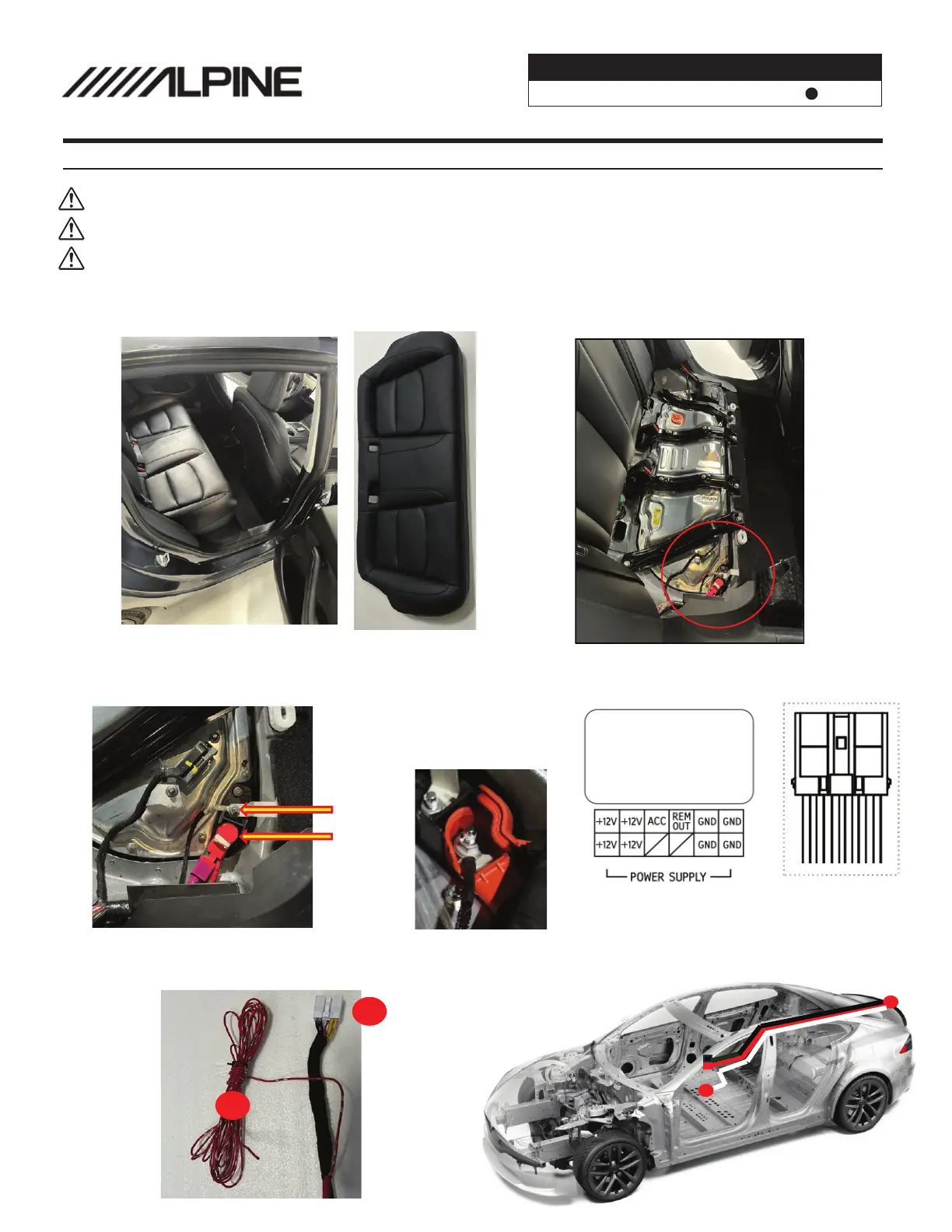

Installation Instruction (Power Harness)
IMPORTANT: For Optimal Sound Quality Sound Dampening Is Highly Recommended for Tesla Applications
4
Route 12V Power Harness (Plug J) from rear bench seat to
the trunk to the amp mounting location.
IMPORTANT: Re-install ALL Factory Plugs To Their Original Location, FAILURE TO DO SO CAN CREATE COMPUTER FAULTS.
FULLY POWER DOWN YOUR TESLA AND DISCONNECT BATTERY BEFORE CONTINUING. SEE POWER DOWN PROCEDURE
Connect the Alpine harness Positive and Negative lug to
the low voltage battery posts under the rear seat &
re-tighten hardware.
3
Route the remote trigger 18awg primary wire (M) to the
rear of the center console. Extra Length is OK
5
J
M
J
-
+
M
1
Remove the rear bench seat from the Model 3 using
the two release latches at the front of the cushion
Locate the low voltage 12V battery posts in the rear seat
passenger compartment (Under the seat) Use a socket to
remove the battery post hardware nuts
2
Positive
Negative
(Chassis Ground)
