DRM2 Mini-Converter Rack-Mount Frame Manual v1.0 9 www.aja.com
Twelve Mini-Converters Example Configuration
Below find an example of 12 AJA Mini-Converters of various sizes installed into a
single DRM2 frame.

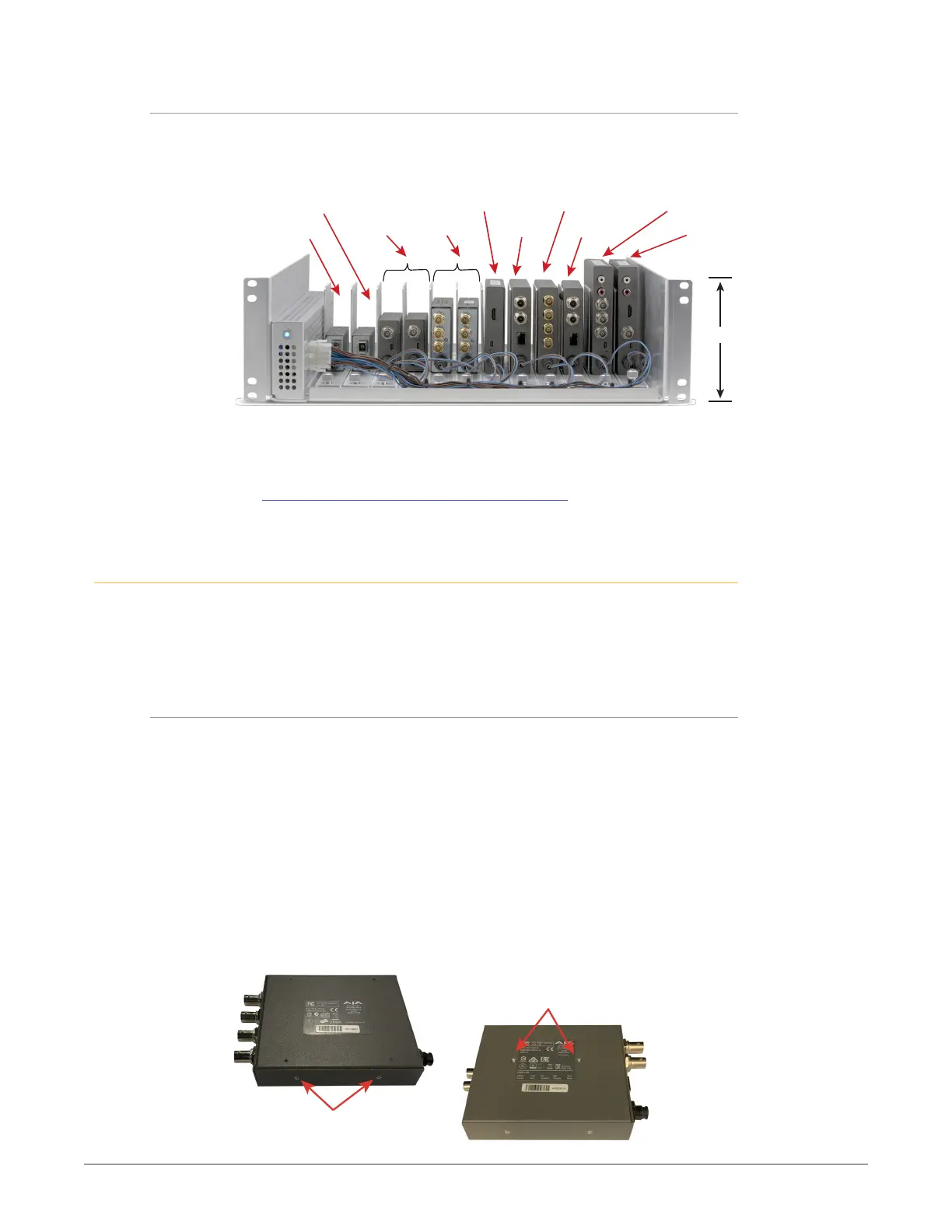

Figure 9. DRM2 with 12 AJA Mini-Converters installed
3-RU
ROI-DVI
12GDA (2)
Hi5-Plus (2)
FiDO TR-12G
FiDO R-12G-ST
HA5-12G Hi5-4K-Plus IPR-10G2-HDMI
12GM
IPR-10G2-HDMI
NOTE: The above example is for illustration purposes only, and is not intended to
represent a specific application. Only DC power is shown connected, for clarity.
NOTE: For details on the example AJA mini-converter products shown above, see:
https://www.aja.com/nav/products-mini-converters
Installation
DRM Carriers may be shipped pre-installed in the DRM2 frame. If so, first time
converter installation requires removing the Carriers from their Carrier Slots inside
the frame, in order to subsequently mount converters onto them. See "Remove
Carrier from DRM2 Frame" on page 15; then continue on below.
Mounting Converters onto Carriers
Which of two alternative methods to use for mounting converters onto Carriers
depends upon the particular model of Mini-Converter. When a particular model
converter has two threaded rear-mounting holes, then the provided rear-
mounting screws can be used through the carrier mounting slots in the Carrier's
vertical bracket. See "Rear-Mounting Mini-Converters" on page 10.
Other Mini-Converter models which don't have rear-mounting holes, will have to
be attached through the Carrier's bottom plate and into the bottom of the Mini-
Converter housing. You will reuse the converter's bottom housing screws, or use
those provided. See "Bottom-Mounting Mini-Converters" on page 10.
Use the appropriate method for each Mini-Converter being mounted into the
DRM2. Procedures for both methods are detailed below.
Figure 10. Two methods of attaching Mini-Converters onto Carriers
Mount to Carrier using
bottom housing screws
Mount to Carrier using
rear mounting holes
