DRM2 Mini-Converter Rack-Mount Frame Manual v1.0 8 www.aja.com
Overview of Installation
Rack Mount Frame with Carrier Slots
The DRM2 is a standard 19-inch, 3-RU tall, 15" deep rack mount frame with 12
Carrier Slots, into which Mini-Converter Carrier mounting brackets slide into and
are secured.

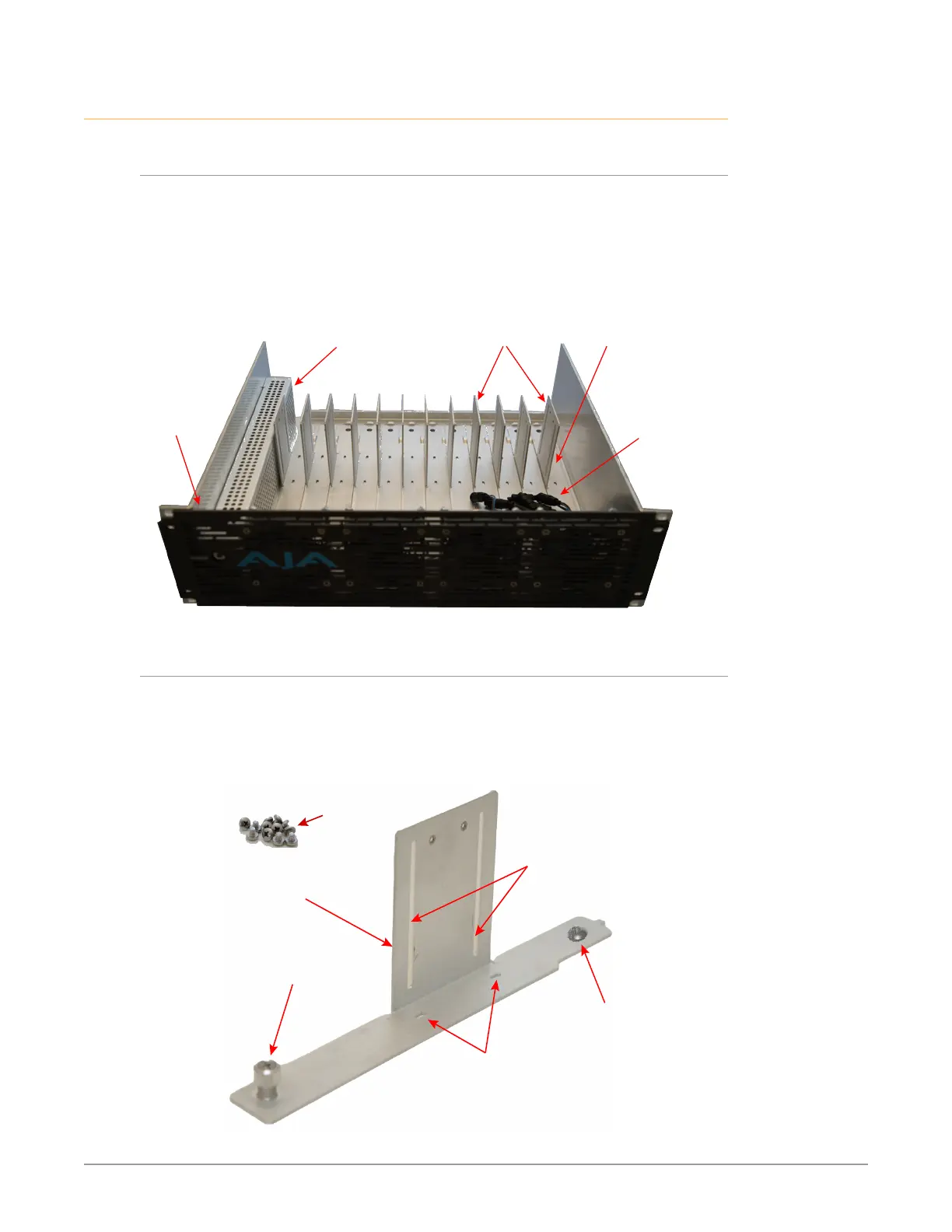

Figure 7. DRM2 with empty Carriers in Carrier Slots
Carrier
Mounting
Slots (12)
(empty)
Carrier
Mounting
Brackets (12)
+5V DC
Power
Harness
Active
Cooling
Faceplate
Power
Supply
Mini-Converter Carriers
Mini-Converters are not mounted directly into the DRM2 frame. They are first
attached to the Mini-Converter Carrier mounting brackets. The Carriers each
include screws for mounting mini-converters to them, as well as a Carrier Rear
Screw for optional anti-vibration use.
Figure 8. Mini-Converter Carrier mounting bracket and screws
Mounting Screws
Carrier
Mounting Bracket
Converter
Rear Mounting
Slots
No-Tools
Secure Screw
Converter
Bottom
Mounting Slots
Rear Screw
(Anti-Vibration
Option)
