19ADDER USER MANUAL
3. Then, you can try to fit the scope before placing the upper rings.
The scope rings need to be at a proper distance from the objective
bell as well as the turrets so that the eye relief adjustment can be
done.
4. You can insert a thread locker and tighten the fixing screws of the
lower parts of the rings.
5. Place the upper rings and slightly fixing them with the screws only
enough to allow the scope to rotate and move back and forth.
6. Adjust the eye relief. Position the scope far enough to keep your
eye safe from recoil.
7. Turn on the power of the scope and activate the reticle.
8. With the rifle held level, rotate the scope until the reticle is
precisely vertical and horizontal.
9. Сheck the position of the scope and tighten the ring screws.
Ensure an even fit by alternately tightening the screws.
2.1.16 INSTALLING THE ADDER ON A PICATINNY/
WEAVER RAIL WITH QUICK RELEASE MOUNT
You can mount the Adder scope on a Picatinny/Weaver rail of
weapon using quick release (QR) mount (Figure 2-6).
1. Unlock the clamping devices of the QR mount by pushing down on
the lever holders (A) and unlocking the levers (B).

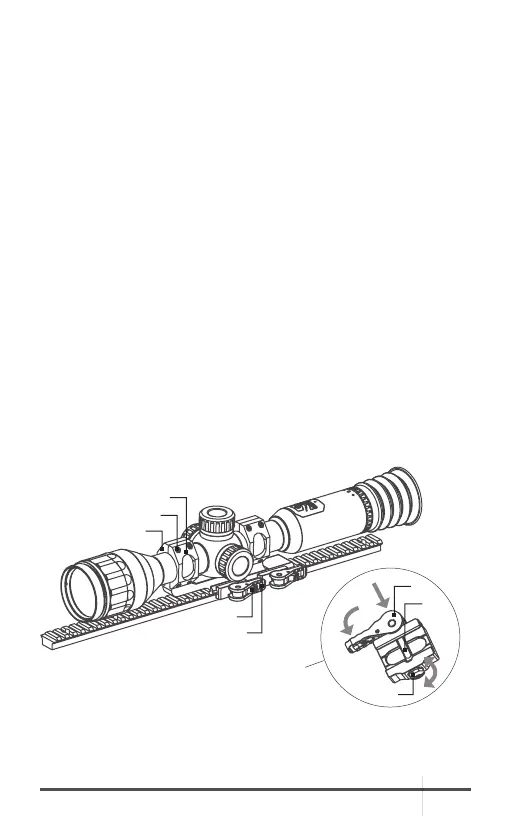

FIGURE 2-6. INSTALLATION WITH QUICK RELEASE MOUNT
H
F
G
B
A
UNLOCKED
CLAMPING DEVICE
(UNDERSIDE VIEW)
UNLOCK
TURN
PUSH
C
D
E
