13 WISE-750 User Manual
Chapter 3 Hardware Overview and Signal Connections
Figure 3.5 WISE-750 connect to PCL-M10
3.3.3 Isolated Digital Input
Each of the isolated digital input channels accepts bi-directional 10 ~ 30 VDC voltage
inputs. This means that both positive and negative voltage can be applied to an iso-
lated input pin (VIN). Figure 2 shows how to connect an external input source to one
of the module's isolated input channels.

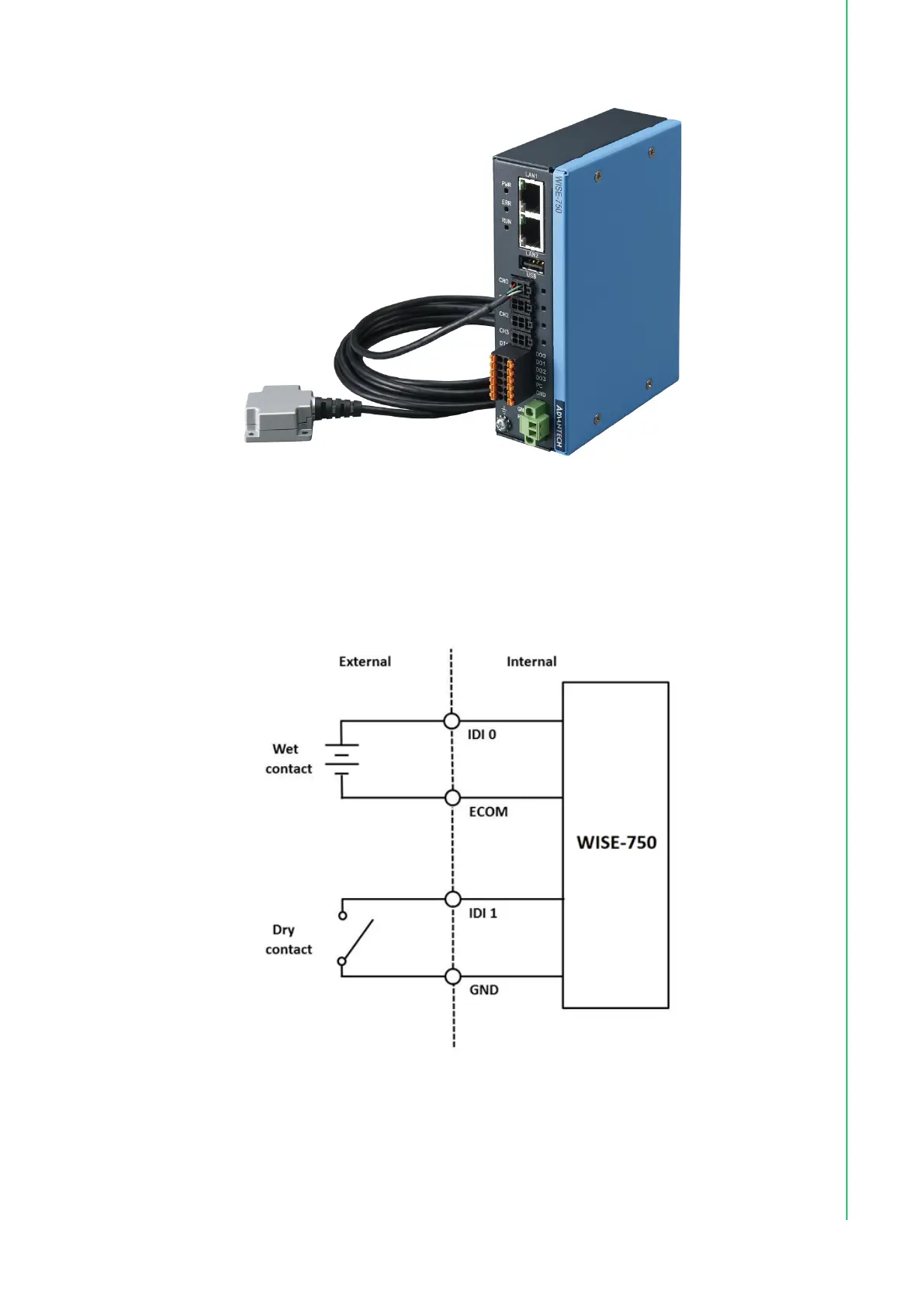

Figure 3.6 Isolated Digital Input Connection
