UNO-3483G User Manual 14
2.11 PCIe Slot
In order to fulfill user's extensive requirements, UNO-3483G provide one PCIe x4
slot. The PCIe slot could provide user to install standard PCIe card compatible with
PCIe x4, for example, USB expansion card, Ethernet expansion card...etc.
2.12 Dual Power Input and Remote Power Control
There are two additional functions for field applications combined in the power con-
nector. One is a secondary power input that helps users plug-in a second power
source to prevent main power source failure. The other is the remote power button
that helps users remotely power up or power down the controller from a distance.
2.13 SATA HDD Drive
The UNO-3400G series product supports two 2.5" SATA HDD with up to 6Gbps
speed.The UNO-3483G support RAID 0 and RAID1. The RAID function should be
enabled in BIOS setup before you install an operating system into a RAID volume.
User can enable RAID function in BIOS sub-menu "Advance\SATA Configuration".
Follow the steps below to create a RAID volume.
1. Mount two SATA HDDs in the system.
2. Power on the system.
3. Press “F2” to enter into BIOS setup during POST.
4. Enable RAID mode in BIOS setup menu "Advance\SATA Configuration".

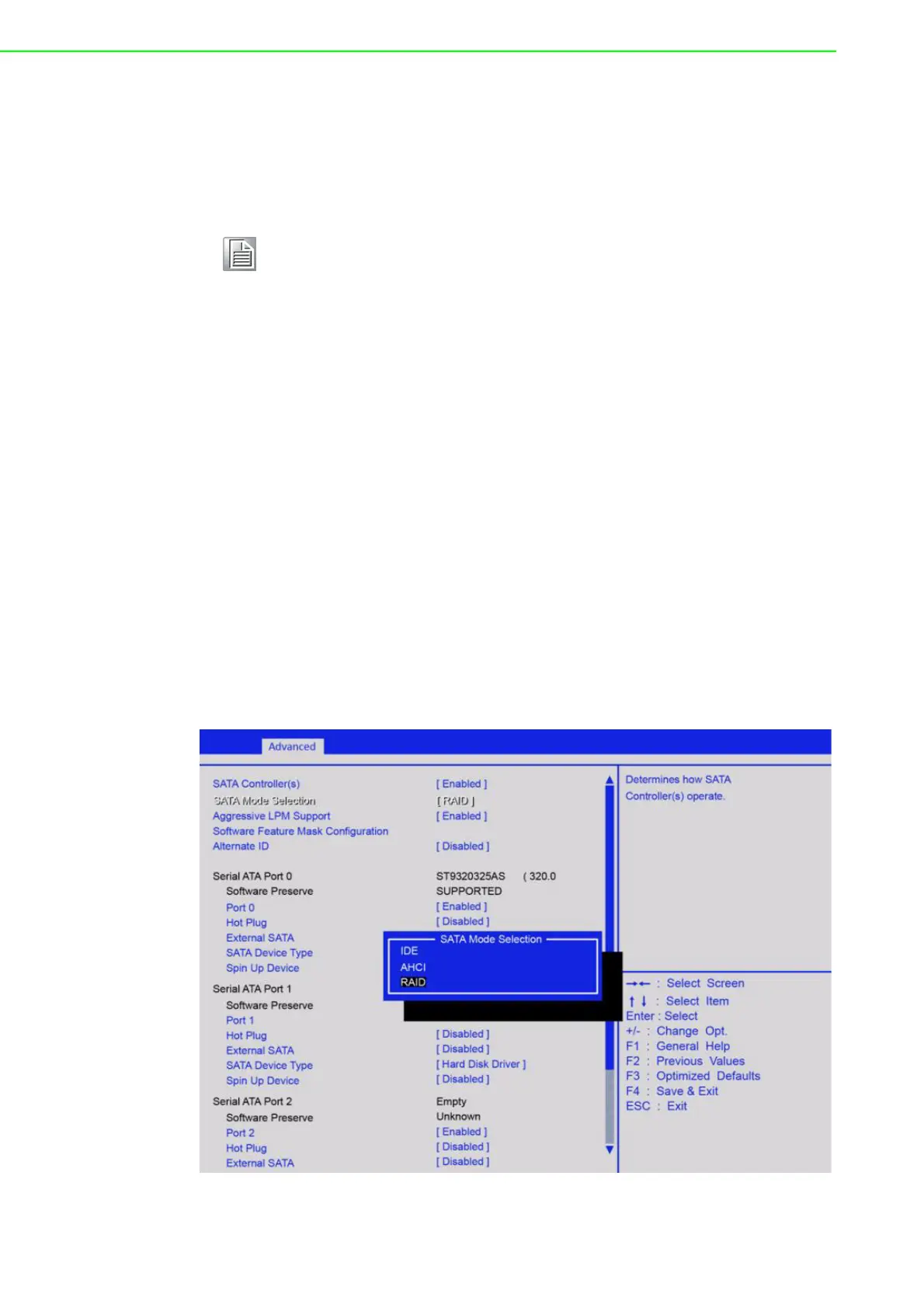

Figure 2.12 SATA Mode Selection
Note! This PCIe slot support 25W (max). The detail operates as below:
12 V / 2.1 A max
3.3 V / 3 A max
3.3 V (standby) / 0.375 A max
