15 UNO-3483G User Manual
Chapter 2 Hardware Functionality
5. Press “F4” to save and exist the BIOS setup.
6. Press “Ctrl+I” to enter RAID configuration utility when the Intel Rapid Storage
Technology option ROM screen appears.

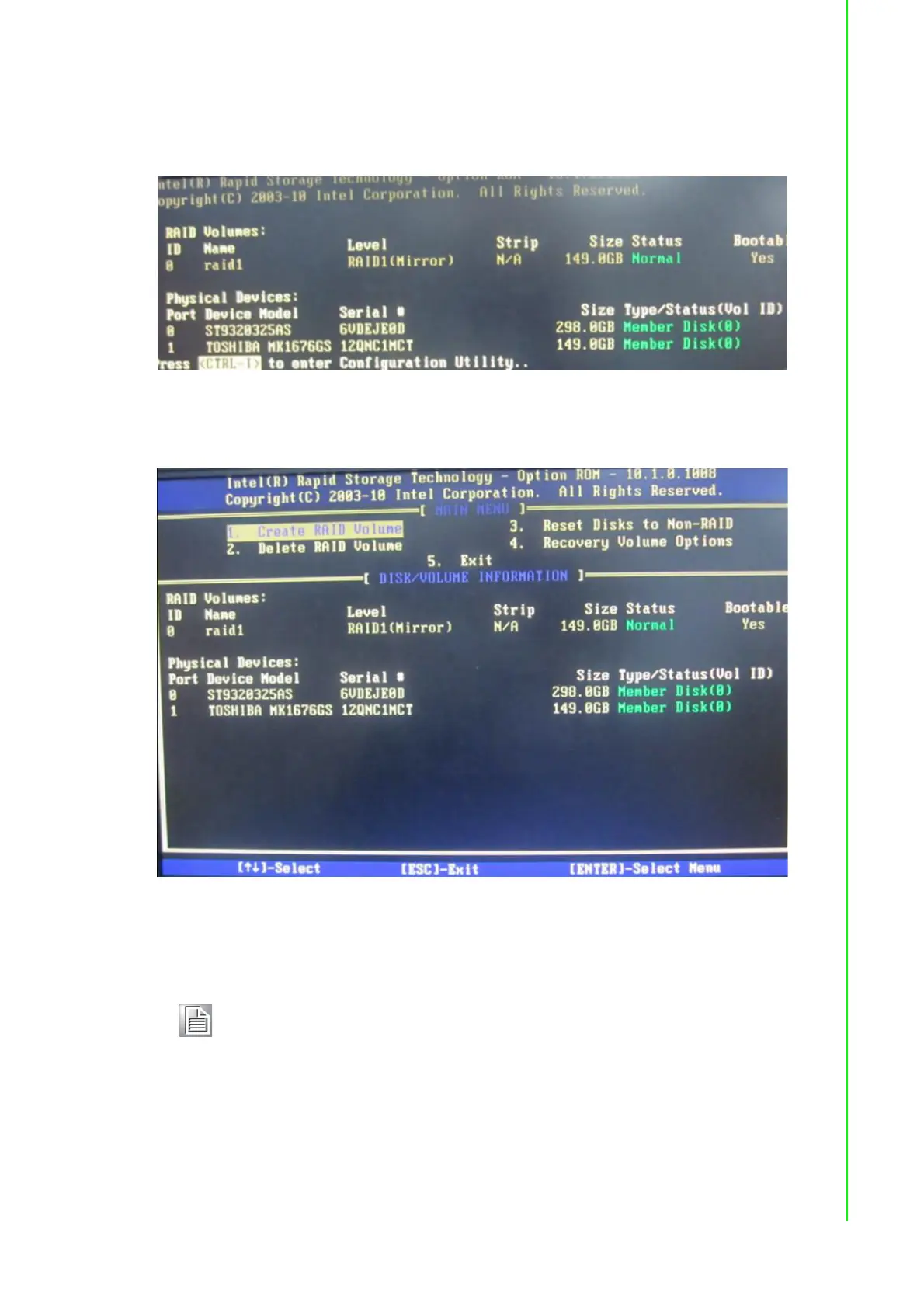

Figure 2.13 Detecting RAID configuration
7. Create a RAID volume in the RAID configuration utility.
Figure 2.14 Create RAID Volume
8. Follow the standard procedure to install OS into the RAID volume.
2.14 Audio Jack
This product provides one Line-out port, one Line-in and one MIC (Pin Header).
Note! 1. The Maximum height of 2.5" HDD supported on UNO-3483G is
9.5mm, and Maximum Power is 5V / 700mA per SATA port.
2. Hot-swappable function of HDD is in conflict with operation of
RAID.
