4 UNO-137 V2 Startup Manual

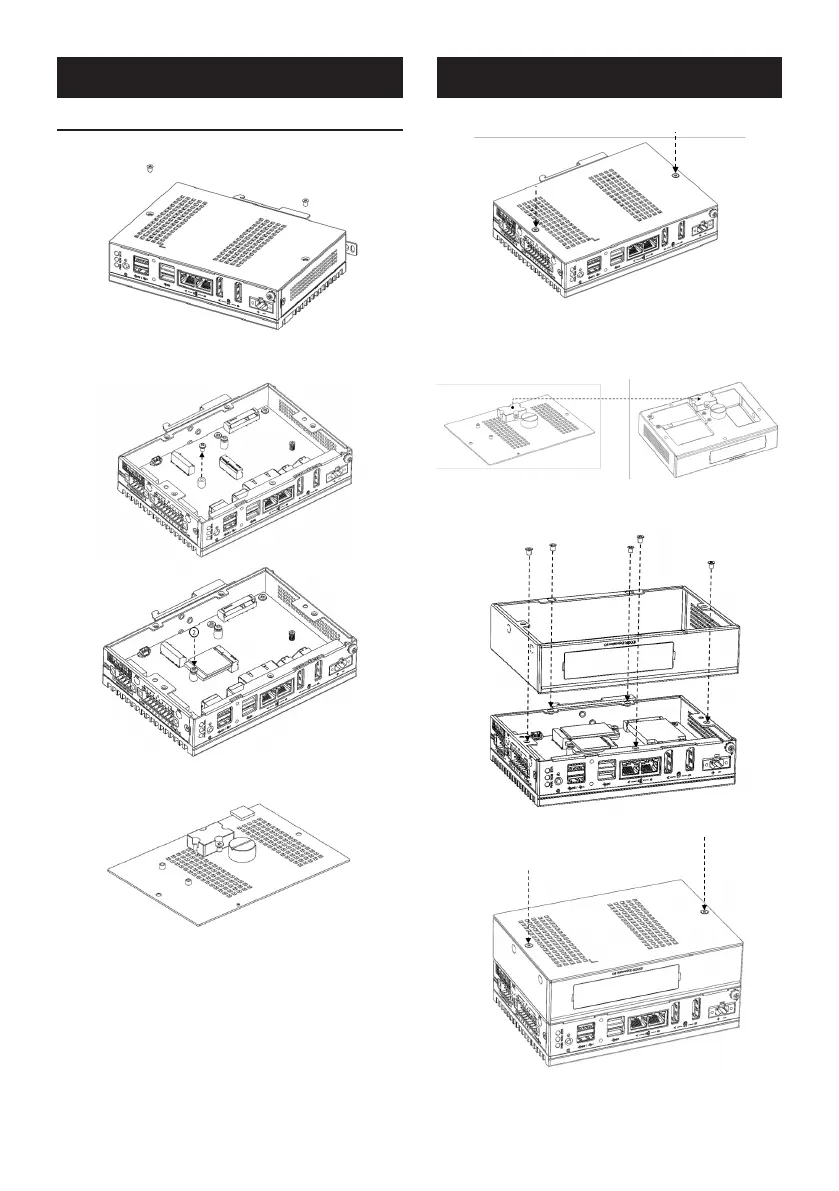

M.2 (2230 E-Key) Installation
1. Remove 2 screws from the UNO back cover.
2. Remove the pre-installed screw and insert the M.2.2230
card, then put the screw back in place.
3. Stick the thermal pad on the aluminum column.
Simple Maintenance Process (Cont.)
4. Attach the back cover with the provided screws.
OPTIONAL: Expansion for the second stack
5. If a second UNO-137 V2 stack is needed, the aluminum
column on the base unit should be removed and placed
on the second stack.
6. Attach the second stack with 5 screws on the base unit.
7. Attach the back cover with the provided screws.
