UNO-137 V2 Startup Manual 3

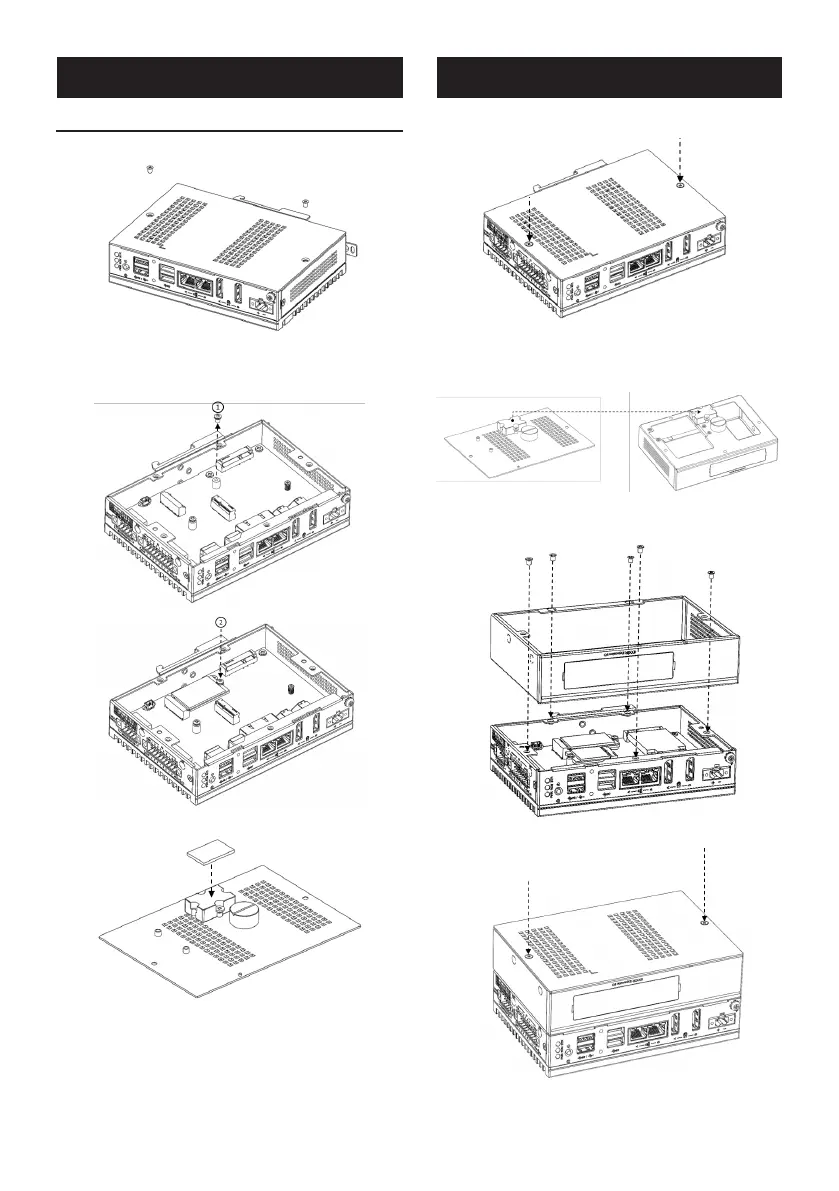

M.2 (2242 M-Key) Installation
1. Unscrew the bottom cover.
2. Remove the provided screws from the board. Insert the
M.2 2242 card into the location. Then secure it with the
provided screws.
3. Paste the thermal pad onto the aluminum column.
4. Attach the back cover with the provided screws.
OPTIONAL: Expansion for the second stack
5. If a second UNO-137 V2 stack is needed, the aluminum
column on the base unit should be removed and placed
on the second stack.
6. Secure the second stack with 5 screws on the base
unit.
7. Attach the back cover with the provided screws.
Simple Maintenance Process
Simple Maintenance Process (Cont.)
