3. Hook the clamp into the holes around the four sides of the bezel and fas-
ten the screws (torque: 2 kgf-cm). These screws will push the mounting
panel and secure the unit.
0.

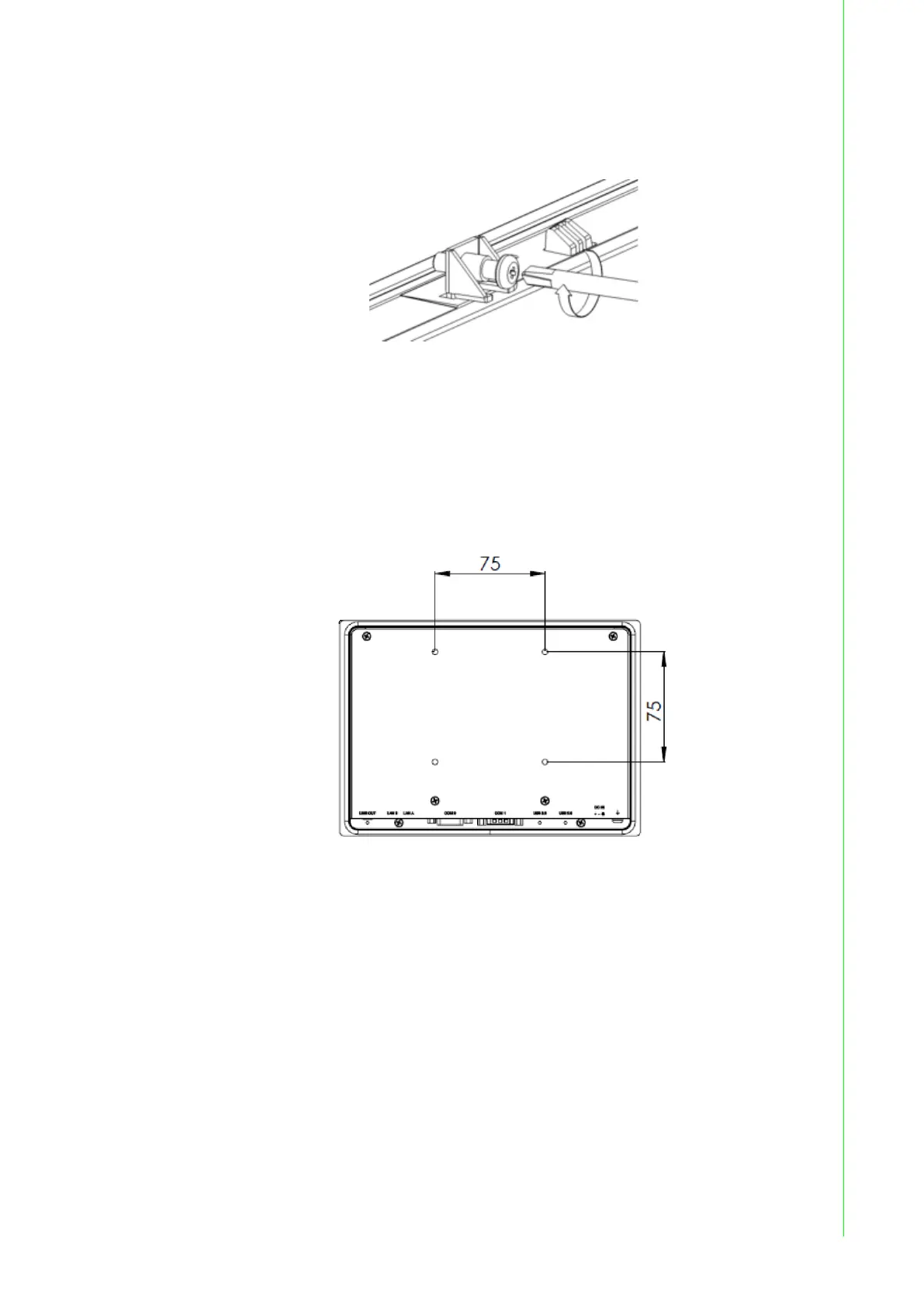

Figure 2.6 Panel Mounting – Clamp Fixing
2.3 VESA Mount
The TPC-307W’s rear cover features four VESA mounting (75 x 75 mm) holes.
The VESA mounting kit needs to be installed by 4pcs M4x10L screws. Please use
suitable mounting apparatus to avoid risk of injury.
Figure 2.7 VESA Mounting
