TPC-307W User Manual
2.2 Panel Mount
There is an adhesive waterproof gasket on the front bezel. Make sure the water-
proof gasket is in position before installing the TPC-307W panel computer into
the panel opening.
1. Install the TPC into the panel opening. For adequate air circulation, the
TPC requires a certain clearance on all sides. The following diagram illus-
trates the minimum clearance (100mm) and the air inlet and outlet direc-
tions (blue arrows). The suggested mounting panel thickness is less than
6mm (0.236").
Unit: mm

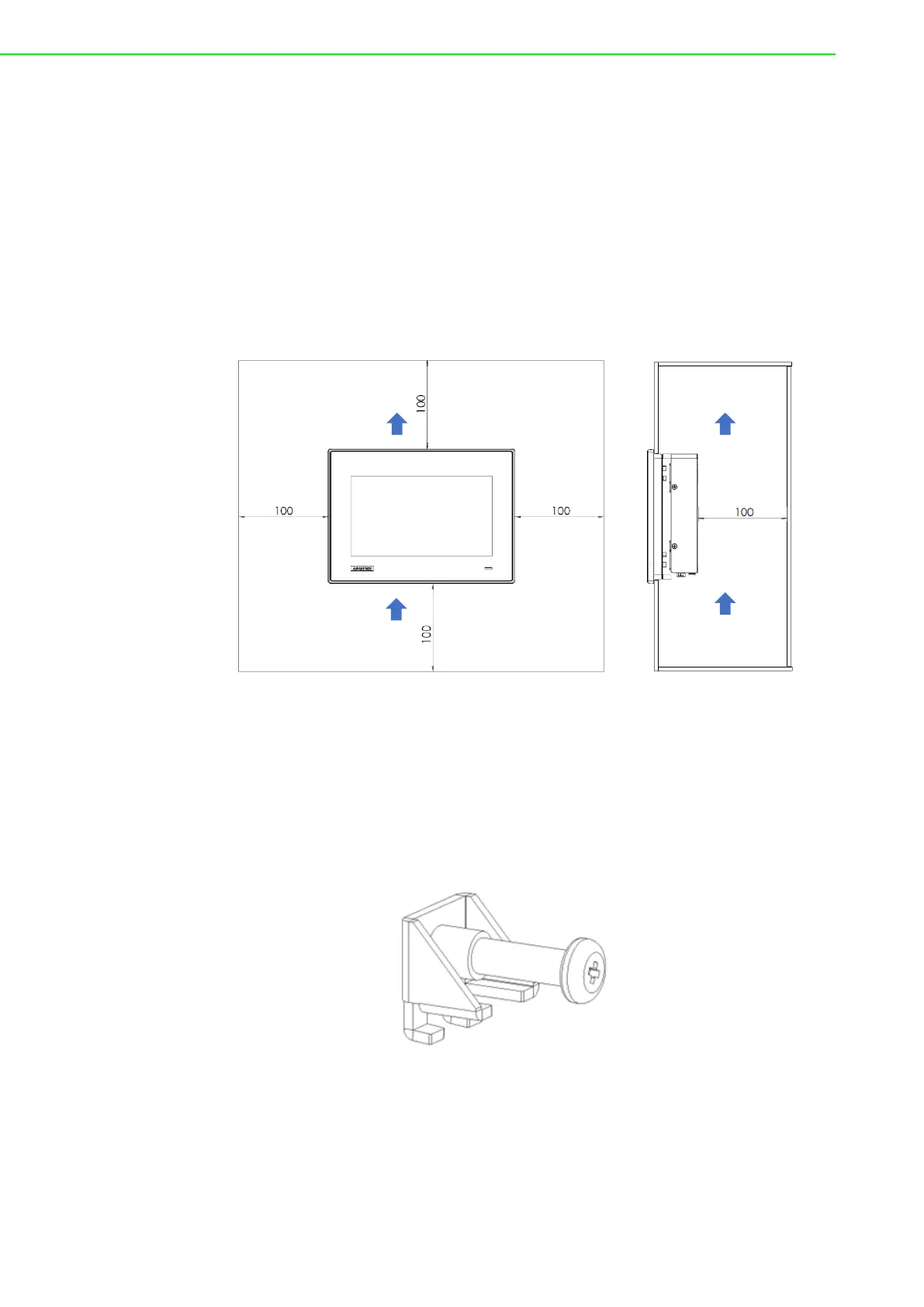

Figure 2.4 Panel Mounting – Positioning
2. Find the four clamps and four long screws in the accessory pack. Insert
the screws (M4 x 25mm) into each clamp and tighten them to fasten the
clamp in place.
Figure 2.5 Panel Mounting – Clamp with Screw
