TPC-307W User Manual
7
Chapter
2
Install
ation
4. Plug the power lines into the system power receptor.
The terminal block is suitable for 12-24 AWG. Torque value 3 lb-in. Use
copper conductors only. Must be installed by skilled person.
At. No.
Wire
Range
Wire
Type
FW
TQ
Lb In.
V
A
UG
CA
MC420, MC421 (1C)
16-26
Cu
2
3
300
10
B, C
2(105), 4*

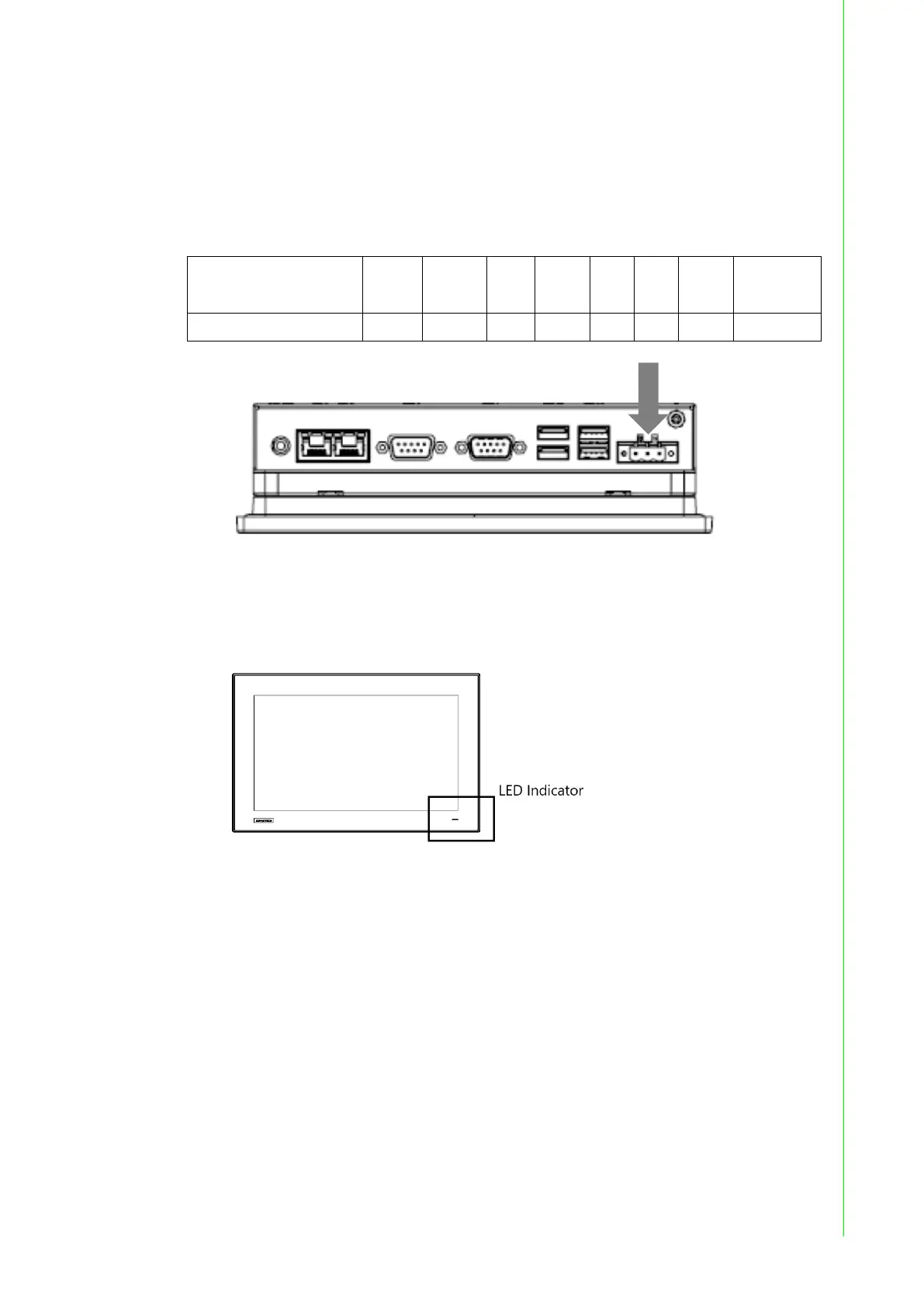

Figure 2.2 Power Connector
5. Power on the system. The power LED turns to blue.
LED Indicator:
Off - “dark”
ON - “blue”
Standby - “orange”
Figure 2.3 Power LED
6. Calibrate the touchscreen.
