11 POC-821 Series User Manual
Chapter 2 System Setup
2.1.2 Rear view
When you turn the Point-of-Care terminal around and look at its rear cover, the
sunken I/O section is at the bottom of the panel PC, as shown in Figure 2.2 with a
zoomed-in view in Figure 2.3. (The I/O section includes various I/O ports, including
serial ports, HDMI port, Ethernet port, USB ports, and so on.)

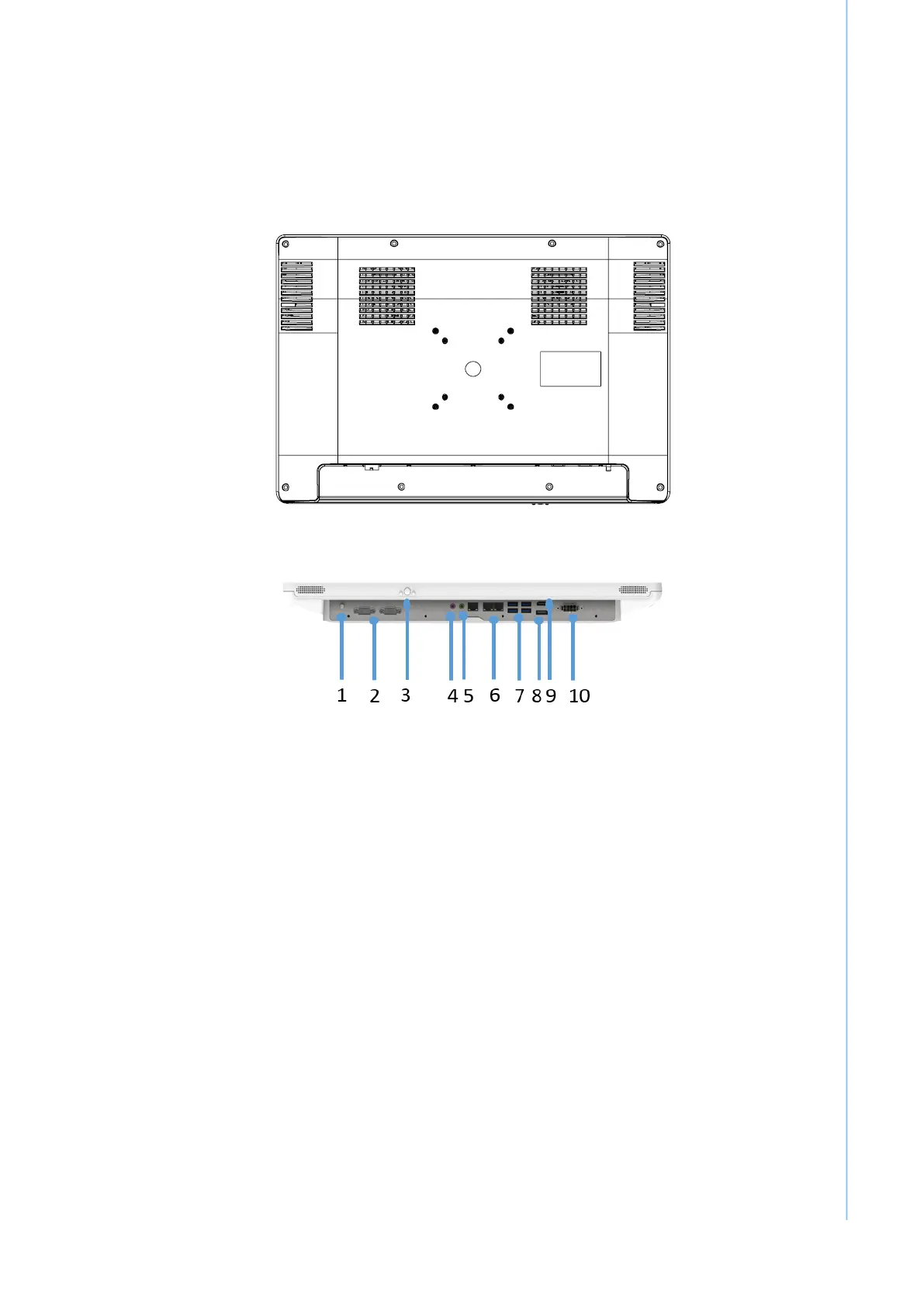

Figure 2.2 Rear View of the Point-of-Care Terminal
Figure 2.3 Bottom Panel with the Various I/O Ports
1. Equipotential Terminal Pin
2. 2 x COM ports (RS232)
3. Power button
4. Line-Out
5. Mic-In
6. 3 x LAN ports
7. 4 x USB 3.0
8. DisplayPort
9. HDMI
10. DC-In
