POC-821 Series User Manual 12
2.2 Installation Procedures
2.2.1 Connecting the power cord
The POC-821 can only be powered by DC adapters as follows.
Adapter Technology / ATM250T-A120, 100-240 Vac, 50-60 Hz, 3.3-1.3A or
Adapter Technology / ATM300T-A120, 100-240 Vac, 50-60 Hz, 3.5-1.5A or
Adapter Technology / ATM250T-P120, 100-240 Vac, 50-60 Hz, 3.3-1.3A
When using ATM250T-A120 or ATM300T-A120, be sure to always handle the
power cords by holding the plug ends and not pulling on the cords.
Follow these procedures in order:
1. Connect the female end of the power cord to the AC adapter.
2. Connect the 3-pin male plug of the power cord to an electrical outlet.

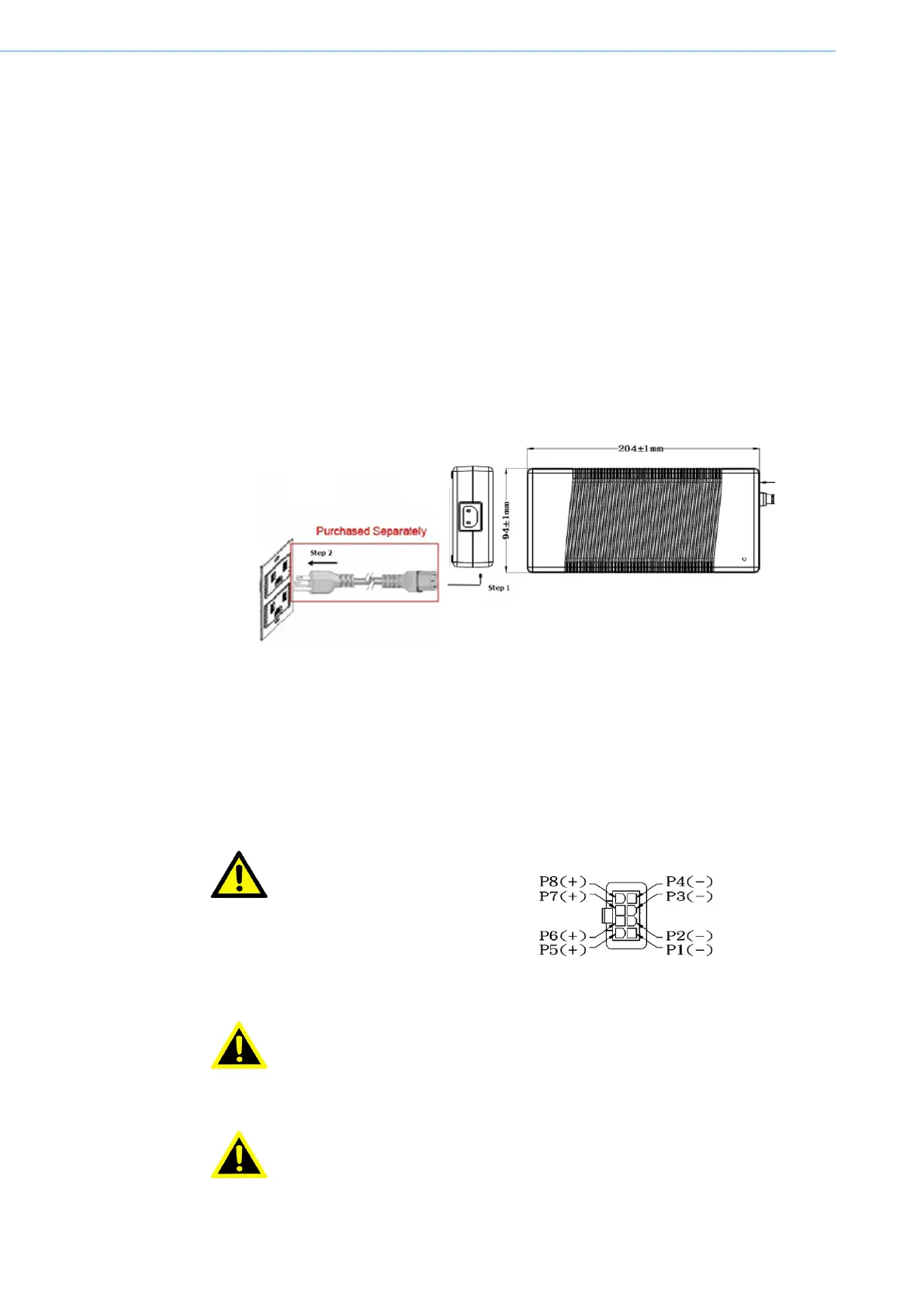

Figure 2.4 Connecting the Power Cord
2.2.2 Connecting the DC-In
Connect the AC Adapter DC-In output plug to the DC power for the POC system.
Please plug the AC adapter into the POC DC-In.
Caution! The Adapter DC-In plug has a specific orientation. Please align the plug
and DC-In connector correctly.
Warning! Incorrect orientation of the plug into the DC-In may damage the POC
system or adapter.
Attention! La prise DC-In de l'adaptateur a une direction spécifique. Veuillez
aligner correctement la fiche et le connecteur DC-In.
