PCI-1285/1285E User Manual 28
5.3 Single-Axis Motion
5.3.1 Operate Axis

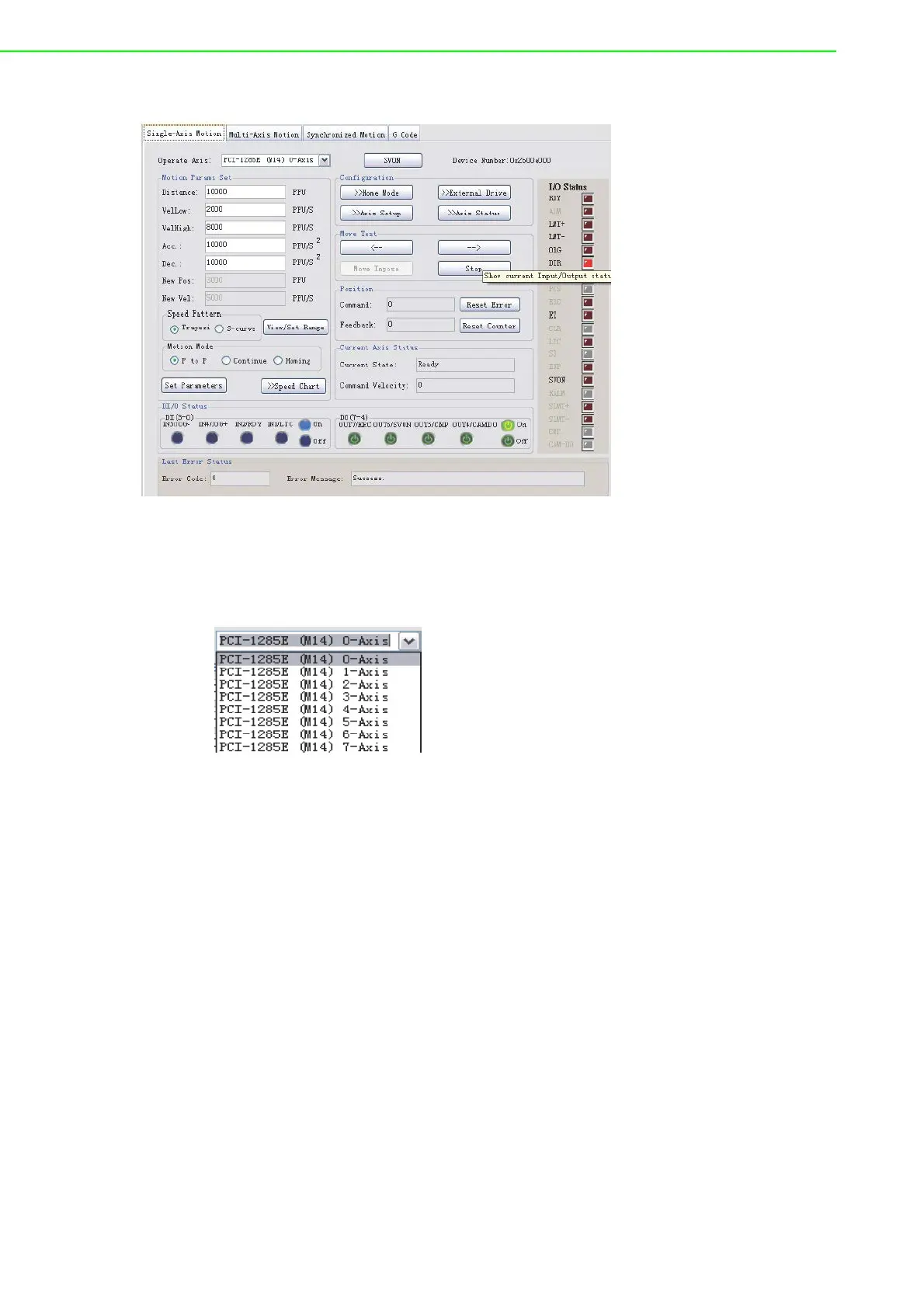

Select the operating axis. Click the check box drop-down symbol, all axes of the
selected device will display as follows:
5.3.2 Motion Params Set
After finishing the parameter setting for operation, click [Set Parameters] to save the
values to device.
5.3.2.1 Basic Parameter Setup
It's mainly about the settings of distance(Distance) in point to point movement, initial
velocity (VelLow), movement velocity (VelHigh), acceleration (Acc.) and deceleration
(Dec.) in single-axis motion, movement distance (New Pos.) and velocity (New Vel) in
superimposed movement (Move Impose).
5.3.2.2 Speed Pattern
Set the speed pattern of movement, which can be trapezoidal pattern (Trapezi) or S-
type (S-curve).
5.3.2.3 View/Set Range
Click [View/Set Range] to check or set the maximum velocity, acceleration and decel-
eration. The dialog will show as follow.
