27 PCI-1285/1285E User Manual
Chapter 5 Utility

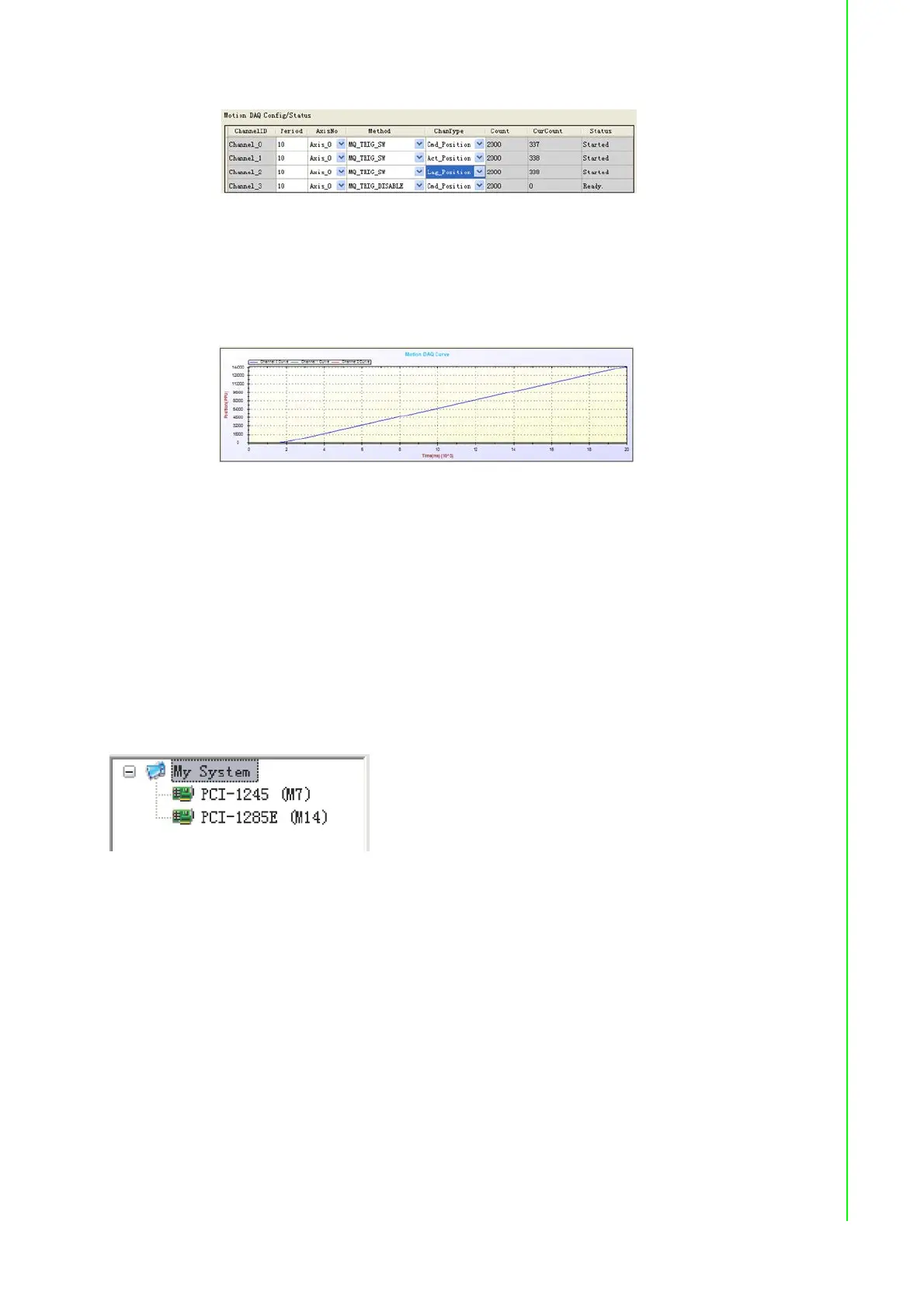

When data acquisition is finished, the curve of corresponding acquisition data of
each channel will be displayed in the below picture box, which is shown as
bleow:
4. Display
Display area in the uppper right corner is to configure the color of each channel
curve and the max value of vertical coordinate of picture box. Select a color
from combo box, then the color of corresponding curve will be changed.
5.2.2.7 Hide Tree
This button is provided to hide/show Device Tree.
If Device Tree is currently shown, click the button to hide it and the text on the button
will change to "Show Tree".
If Device Tree is currently hided, click the button to show it and the text on the button
will change to "Hide Tree".
5.2.3 Device Tree
Click any device of tree view; you will see the operation interface.
