PCI-1285/1285E User Manual 26
Method: Trigger mode. Trigger modes of data acquisition are as followings:
0: MQ_TRIG_DISABLE: Disable data acquisition function;
1: MQ_TRIG_SW: Trigger by software (Click MDAQ Start to trigger);
2: MQ_TRIG_DI£½Trigger by DI (reserved);
3: MQ_TRIG_AX0_START: Trigger when axis 0 starts to move;
4: MQ_TRIG_AX1_START: Trigger when axis 1 starts to move;
5: MQ_TRIG_AX2_START: Trigger when axis 2 starts to move;
6: MQ_TRIG_AX3_START: Trigger when axis 3 starts to move;
7: MQ_TRIG_AX4_START: Trigger when axis 4 starts to move;
8: MQ_TRIG_AX5_START: Trigger when axis 5 starts to move;
9: MQ_TRIG_AX6_START: Trigger when axis 6 starts to move;
10: MQ_TRIG_AX7_START: Trigger when axis 7 starts to move;
11: MQ_TRIG_AX8_START: Trigger when axis 8 starts to move;
12: MQ_TRIG_AX9_START: Trigger when axis 9 starts to move;
13: MQ_TRIG_AX10_START: Trigger when axis 10 starts to move;
14: MQ_TRIG_AX11_START: Trigger when axis 11 starts to move;
So far in PCI-1245/1245V/1245E, only 0-6 trigger methods are supported; In
PCI-1265, only 0-8 trigger modes are supported. Moreover, trigger by DI is
reserved.
ChanType: The source of data acquisition, the available values of which are:
0: Cmd_Position: Command Position;
1: Act_Position: Actual Position;
2: Lag_Position: Lag Position, which means the difference between Command
Position and Actual Position;
3: Cmd_Velocity (reserved): Command Velocity.
Count: Count of acquired data, the range of which is 0-2000. The max value is
2000 by default in Utility.
CurCount: Acquired data count will be returned after motion data is acquired.
Status: Display current acquisition status:
0: Ready: Data acquisition function is not started yet;
1: Wait Trigger: Data acquisition function is started, but waits for trigger; 2:
Started: Motion data is being acquired.

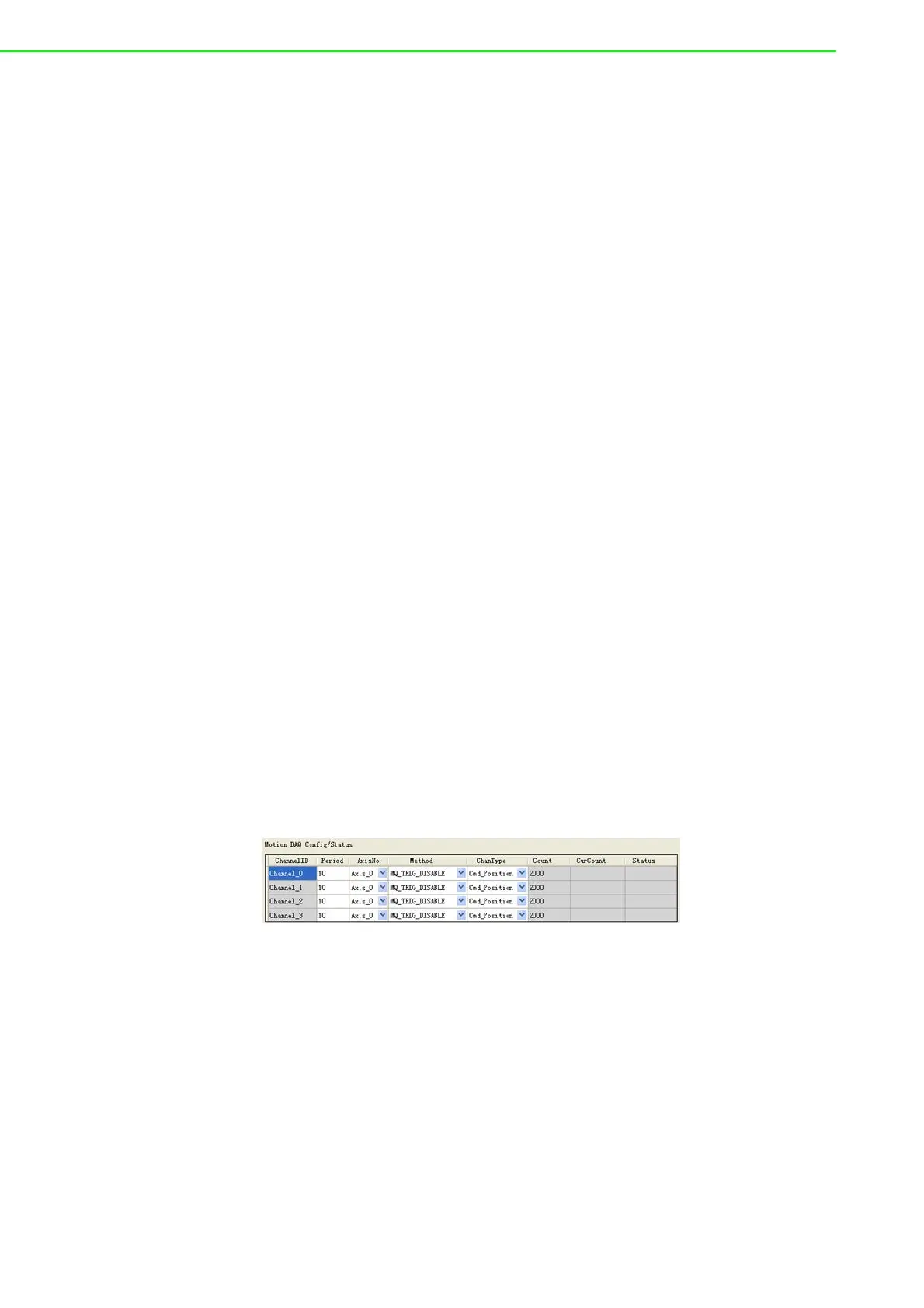

After the mouse moves away from the edit box, the setting values will take
effect. You can check current configurations of each channel in DataGridView,
which is shown as below:
2. Function Opeartions
MDAQ Start: Start motion data acquisition function. When trigger conditions are
met, the acquisition of motion data will be started; MDAQ Stop: Stop motion data
acquisition;
Clear: Clear curve of each channel.
3. Curve Display
When MDAQ Start is started, data acquisition will be started when trigger condi-
tions are met. You can check current sample count the status of each channel,
which is shown as below:
