PCE-5133/5033 User Manual 20
2.7.5 ATX Soft Power Switch (JFP1)
If your computer case is equipped with an ATX power supply, you should connect the
power on/off button on your computer case to JFP1. This connection enables you to
turn your computer on and off.
2.8 H/W Monitor/Watchdog Timer

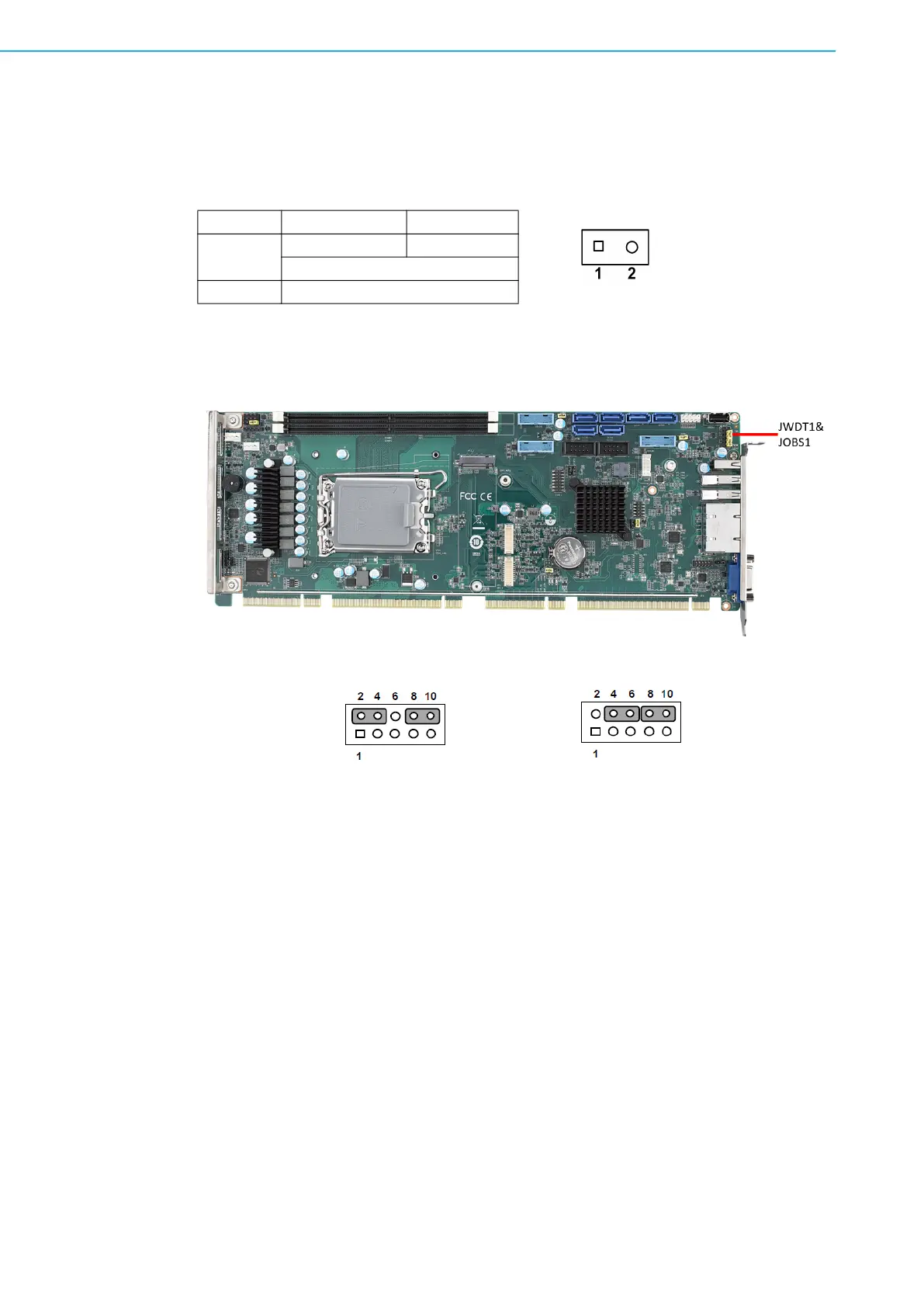

2.8.1 Watchdog timer output and H/W Monitor Alarm (JOBS1)
This 10-pin header is for enabling/disabling the Watchdog timer and H/W monitor
alarm function.
Closed: Enables OBS Alarm
Open: Disables OBS Alarm
2-4 Pin Close: Disable
4-6 Pin Close: Reset
JFP1 PWR_SW Reset
JFP2
HDD LED SNMP
Speaker
JFP3 PWR_LED & Key Lock
