21 PCE-5133/5033 User Manual
Chapter 2 Connecting Peripherals
2.9 LAN Ports (LAN1 & LAN2) and Front Panel LAN
Indicator Connector (LANLED1)

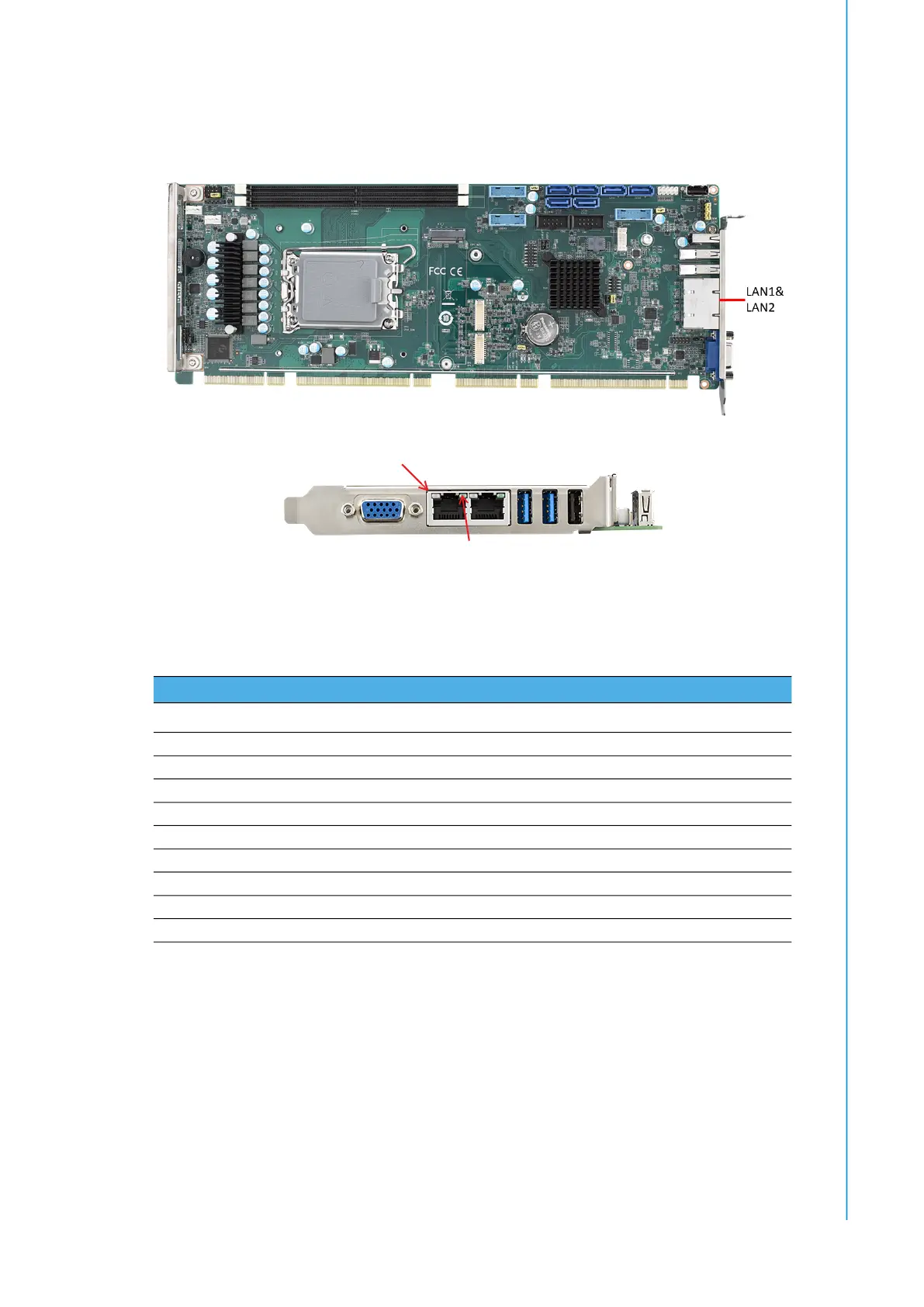

The SBC is equipped with one or two high-performance 1000 Mbps Ethernet LANs.
They are supported by all major network operating systems. The RJ-45 jacks on the
rear plate provide convenient connectivity.
Table 2.2: LAN LED Indicators
LAN Mode LED1 LED2
1000Mbps Link On Green On On
1000Mbps Active Green on Flash
1000Mbps Link Off Off Off
100Mbps Link On Orange On On
100Mbps Active Orange On Flash
100Mbps Link Off Off Off
10Mbps Link On Off On
10Mbps Active Off Flash
10Mbps Link Off Off Off
LED 1
LED 2
