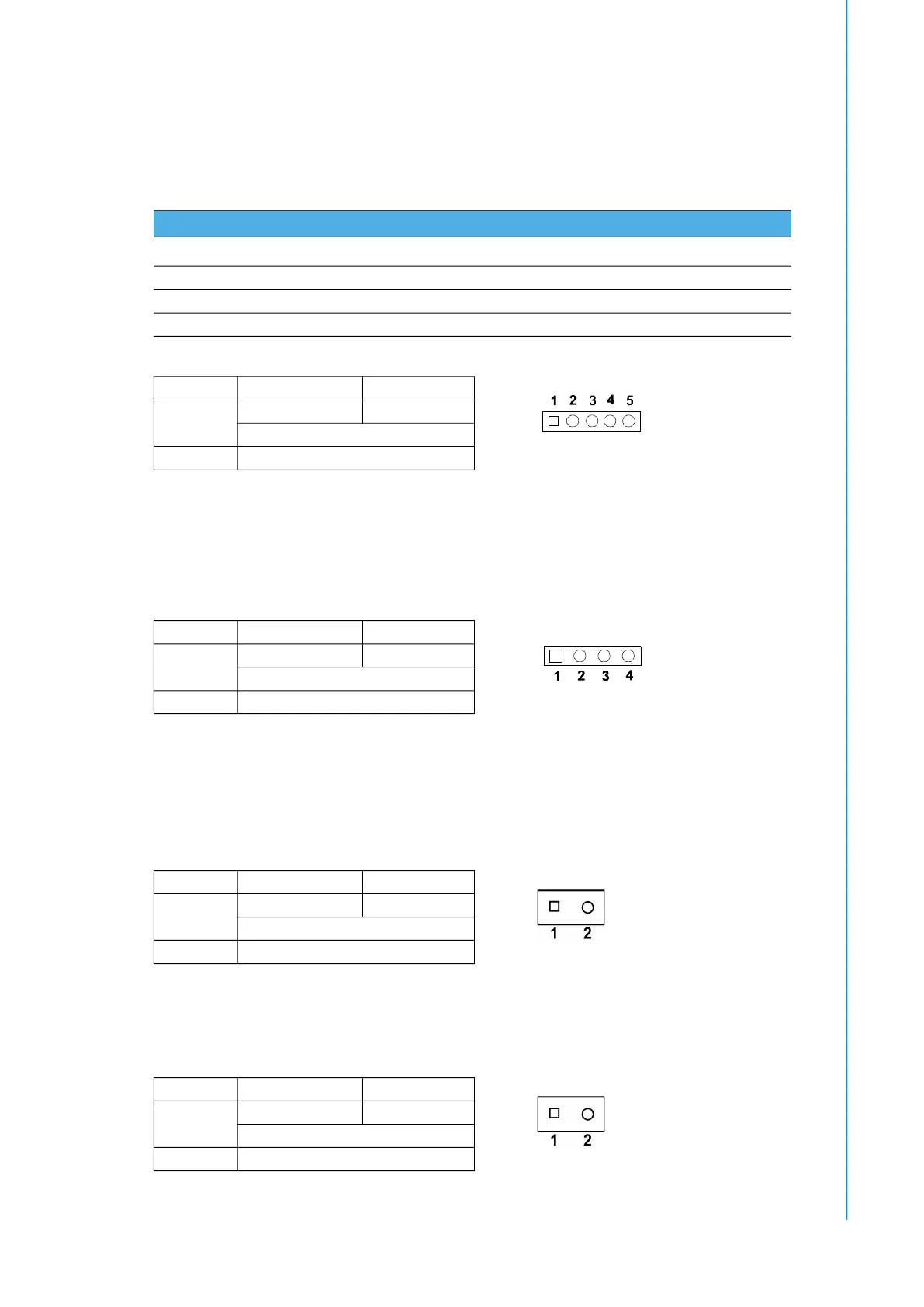

19 PCE-5133/5033 User Manual
Chapter 2 Connecting Peripherals
2.7.1 Power LED and Keyboard Lock (JFP3)
JFP3 is a 5-pin connector for the power LED. Refer to Appendix B for detailed infor-
mation on the pin assignments. If a PS/2 or ATX power supply is used, the system’s
power LED status will be as indicated below.
2.7.2 External Speaker (JFP2)
JFP2 is a 4-pin connector for an external speaker. The PCE-5133/5033 provides an
onboard buzzer as an alternative to an external speaker. To enable the buzzer, set
pins 3 and 4 as closed.
2.7.3 Reset Connector (JFP1)
Many computer cases offer the convenience of a reset button. Connect the wire from
the reset button.
2.7.4 HDD LED Connector (JFP2)
You can connect an LED to connector JFP2 to indicate when the HDD is active.
Table 2.1: PS/2 or ATX Power Supply LED Status
Power mode LED (PS/2 power) LED (ATX power)
System On On On
System Suspend Flashes Flashes
System Off Off Off
JFP1 PWR_SW Reset
JFP2
HDD LED SNMP
Speaker
JFP3 PWR_LED & Key Lock
JFP1 PWR_SW Reset
JFP2
HDD LED SNMP
Speaker
JFP3 PWR_LED & Key Lock
JFP1 PWR_SW Reset
JFP2
HDD LED SNMP
Speaker
JFP3 PWR_LED & Key Lock
JFP1 PWR_SW Reset
JFP2
HDD LED SNMP
Speaker
JFP3 PWR_LED & Key Lock
