IDK-2115 User Manual 14
3.3 Backlight Unit (LED Driver Board)
3.3.1 Connectors

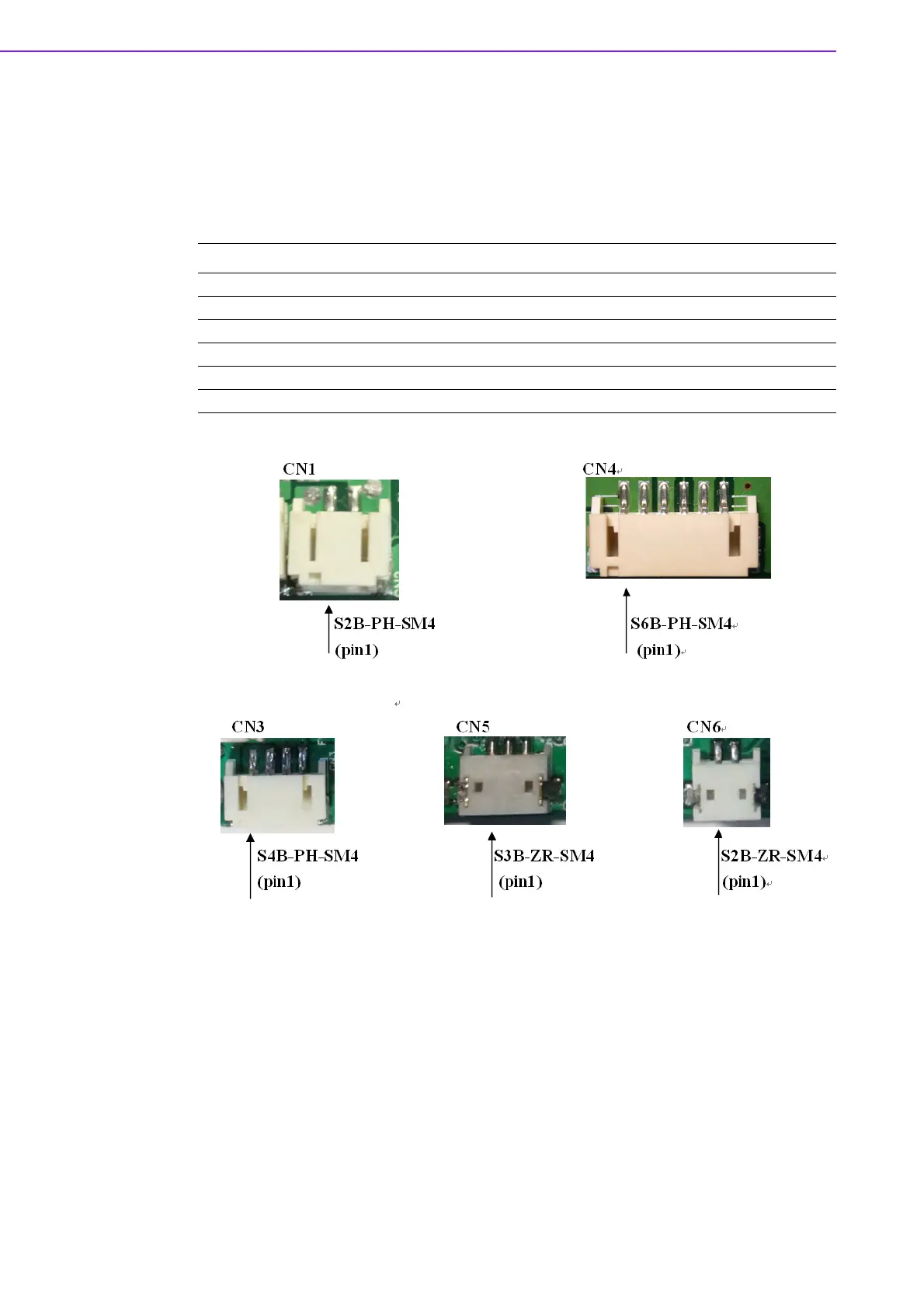

These connectors are capable of accommodating the following signals and consist of
the following components.
No. Connector Name Manufacturer Part Number
CN1 Output Connector JST or Compatible S2B-PH-SM4
CN2 Output Connector JST or Compatible S2B-PH-SM4
CN3 Input Connector JST or Compatible S4B-PH-SM4
CN4 Input Connector(Optional) JST or Compatible S6B-PH-SM4
CN5 Input Connector (Optional) JST or Compatible S3B-ZR-SM4
CN6 Input Connector (Optional) JST or Compatible S2B-ZR-SM4
