ECU-1052 User Manual 12
All metal parts, including the box, are interconnected with the negative pole of the
power supply (common pole). If recommended for the installation environment, pro-
tect the device by properly grounding it using the grounding screw, as depicted in Fig-
ure 2.6. The maximum tightening torque for the grounding screw is 0.6 Nm (6 kg.cm).

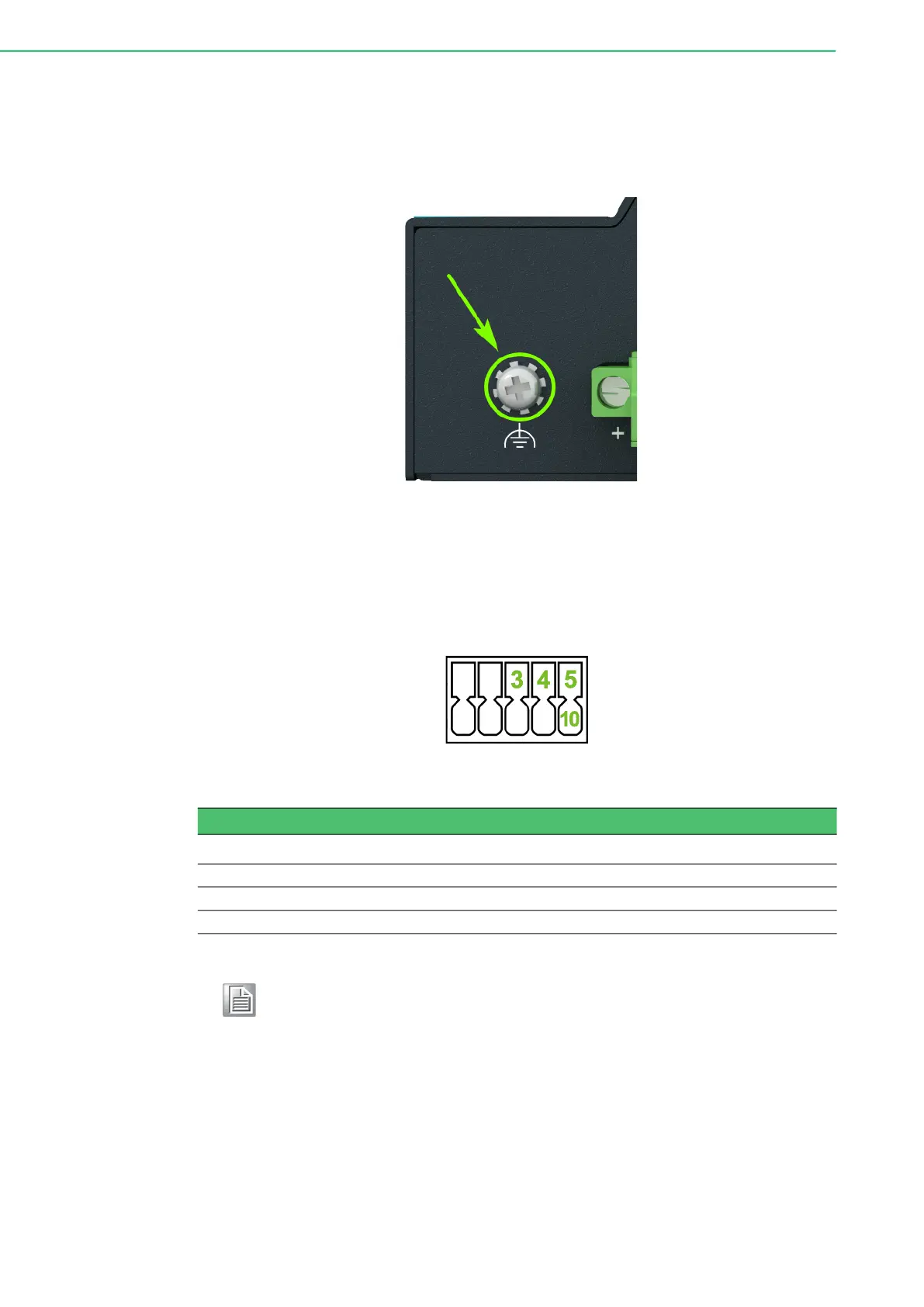

Figure 2.6 Position of the Grounding Screw
2.6 DIN & DOUT Interfaces
The pins of I/O interface are physically connected to the 10-pin terminal block panel
socket. The pinout of the I/O interface is described in Figure 2.7 and Table 7.
Figure 2.7 I/O Connector Pinout
Table 2.5: I/O Ports Pinout
Pin Signal mark Description
3 BIN Digital input
4 BOUT Digital output
5,10 GND Ground (common negative pole)
Note! The I/O interface is not electrically isolated from the device.
