13 ARK-1220 User Manual
Chapter 2 Hardware Installation
2.4.4 USB 3.0 Connector
ARK-1220 supports four USB 3.0 interfaces, which support Plug-and-Play functional-
ity and hot swapping for up to 127 external devices. The USB interfaces comply with
USB UHCI, Rev. 3.0.
USB 3.0 connectors contain legacy pins to interface to USB 2.0 devices and a new
set of pins for USB 3.0 connectivity.

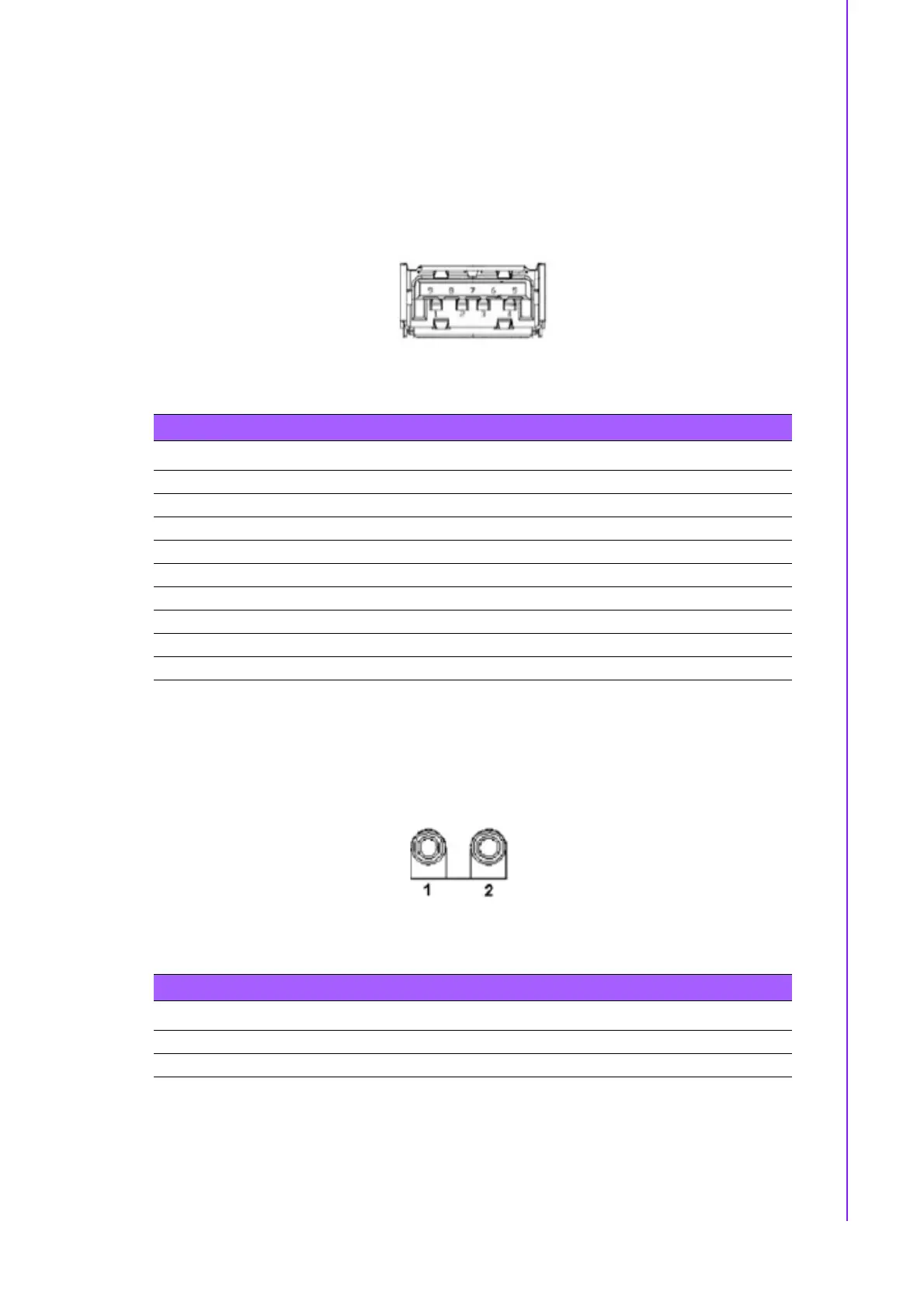

Figure 2.3 USB Connector
2.4.5 Audio Connector
ARK-1220 features two phone jack connectors that support stereo Line Out and Mic
In audio ports. The audio chip is controlled by ALC888S and compliant with the Aza-
lea standard.
Figure 2.4 Audio Connector
Table 2.6: USB Connector Pin Definition
Pin Signal Name
1+5V
2D-_0
3D+_0
4GND
5 USB0_SSRX-
6 USB0_SSRX+
7GND
8 USB0_SSTX-
9 USB0_SSTX+
Table 2.7: Audio Connector Pin Definition
Pin Signal Name
1 Mic In
2Line Out
