ADAM-5000/TCP Series User Manual 14
2.3 Selecting Link Terminal and Cable
Ethernet Network
Use the RJ-45 connector to connect the Ethernet port of the ADAM-5000/TCP Series
to the Hub. The cable for connection should be Category 3 (for 10Mbps data rates) or
Category 5 (for 100Mbps data rates). UTP/STP cables are compliant with EIA/TIA
586 specifications. The maximum length between the Hub and any ADAM-5000/TCP
Series is up to 100 meters (approx. 300ft).

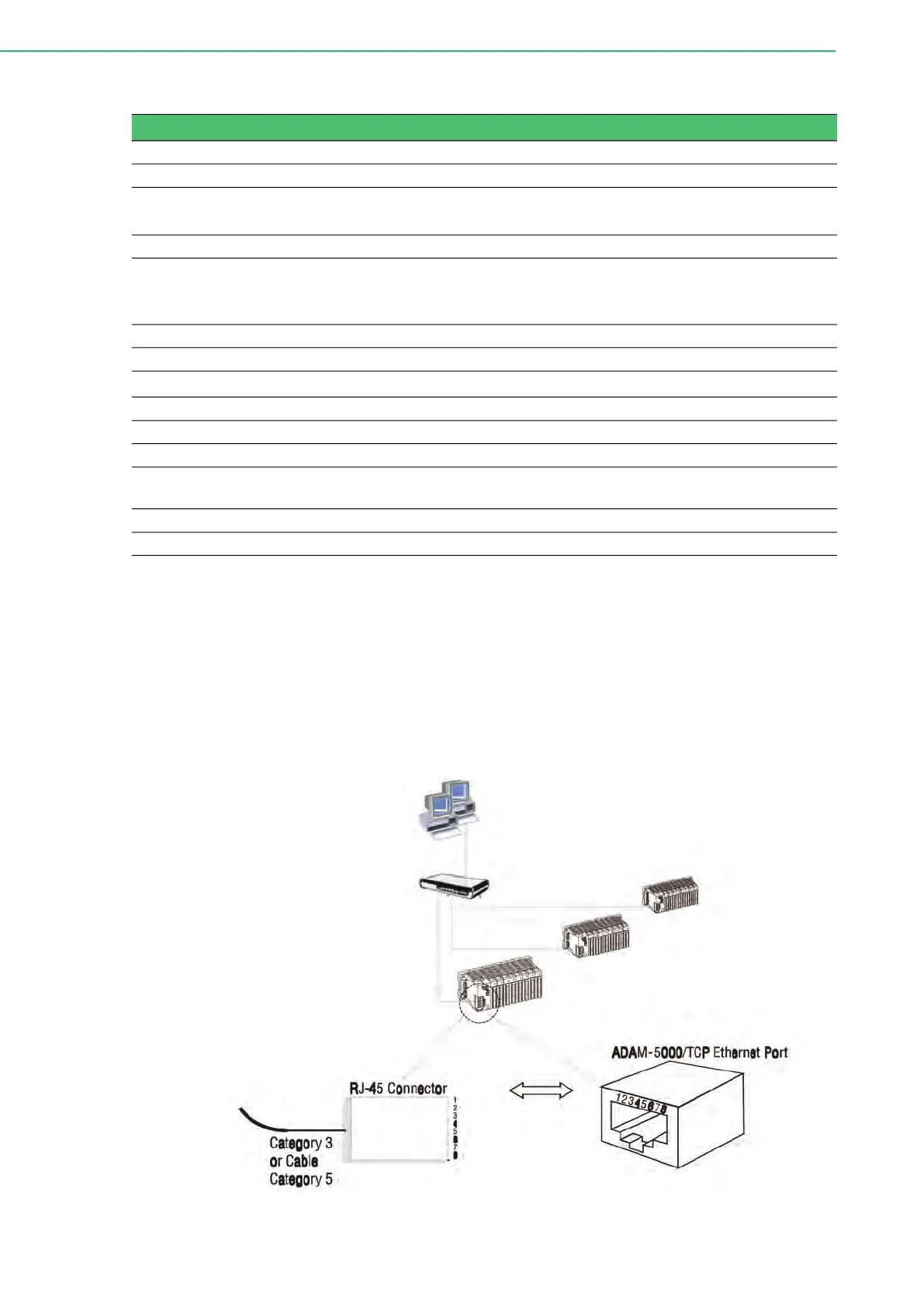

Figure 2.2 Ethernet Terminal and Cable Connection
Table 2.4: Power Supply Specification Table
Specification PWR-242 PWR-243 PWR-244
Input
Input Voltage
90~264 V
AC
85~132 V
AC
170~264 V
AC
100~240 V
AC
Input Frequency 47~63 Hz 47~63 Hz 47~63 Hz
Input Current 1.2 A max. 1.4 A max.
25 A/110 V
AC
50 A/220 V
AC
(Inrush current)
Short Protection Yes Yes Yes
Output
Output Voltage
+24 V
DC
+24 V
DC
+24 V
DC
Output Current 2.1 A 3 A 4.2 A
Overload Protection Yes Yes Yes
General
Dimension
181 mm x 113 mm x
60 mm (L x W x H)
181 mm x 113 mm x
60 mm (L x W x H)
181 mm x 113 mm x
60 mm (L x W x H)
Operating Temperature 0~50º C (32~122º F) 0~50º C (32~122º F) 0~50º C (32~122º F)
DIN-rail Mountable Yes No No
