15 ADAM-5000/TCP Series User Manual
Chapter 2 Selecting Your Hardware Components
Serial Network
The system uses screw terminal for RS-485 twisted pair connection as a data gate-
way between Ethernet Sever and serial Modbus devices. See Figure 2-3. The follow-
ing information must be considered.
1. Twisted-pair wire compliant with EIA-422 or EIA-485 standards, which contains
24 AWG thin copper conductor with copper mesh and aluminum foil for shield-
ing.
2. Always use a continuous length of wire, do not combine wires to attain needed
length.
3. Use the shortest possible wire length.
4. Use wire trays for routing where possible.
5. Avoid running wires near high energy wiring.
6. To reduce electrical noise, it should be twisted as tightly as possible.

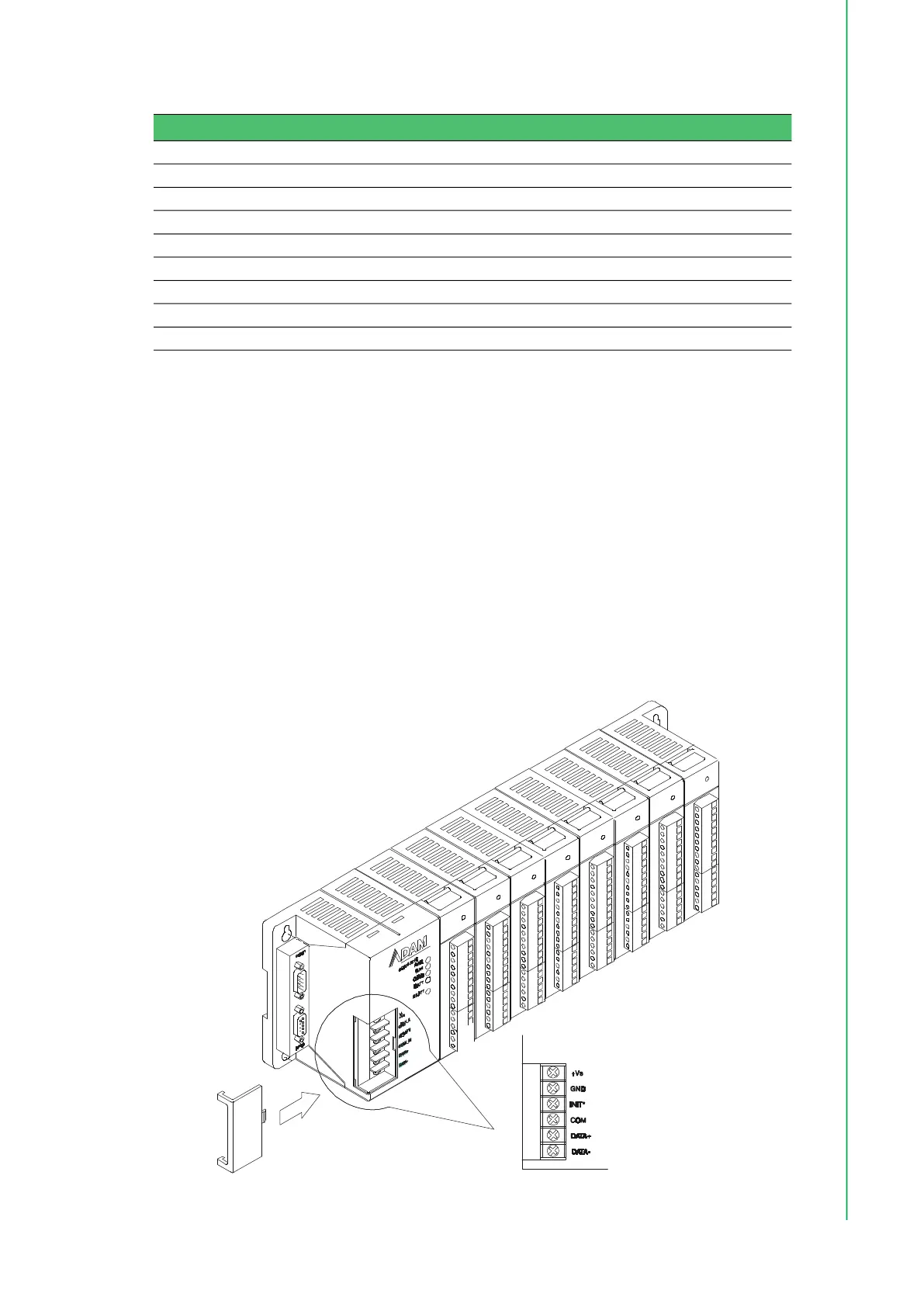

Figure 2.3 RS-485 Terminal and Cable Connection
Table 2.5: Ethernet RJ-45 port Pin Assignment
Pin number Signal Function
1 RD+ Receive (+)
2 RD- Receive (-)
3 TD+ Transmit (+)
4 (Not Used) -
5 (Not Used) -
6 TD- Transmit (-)
7 (Not Used) -
8 (Not Used) -
