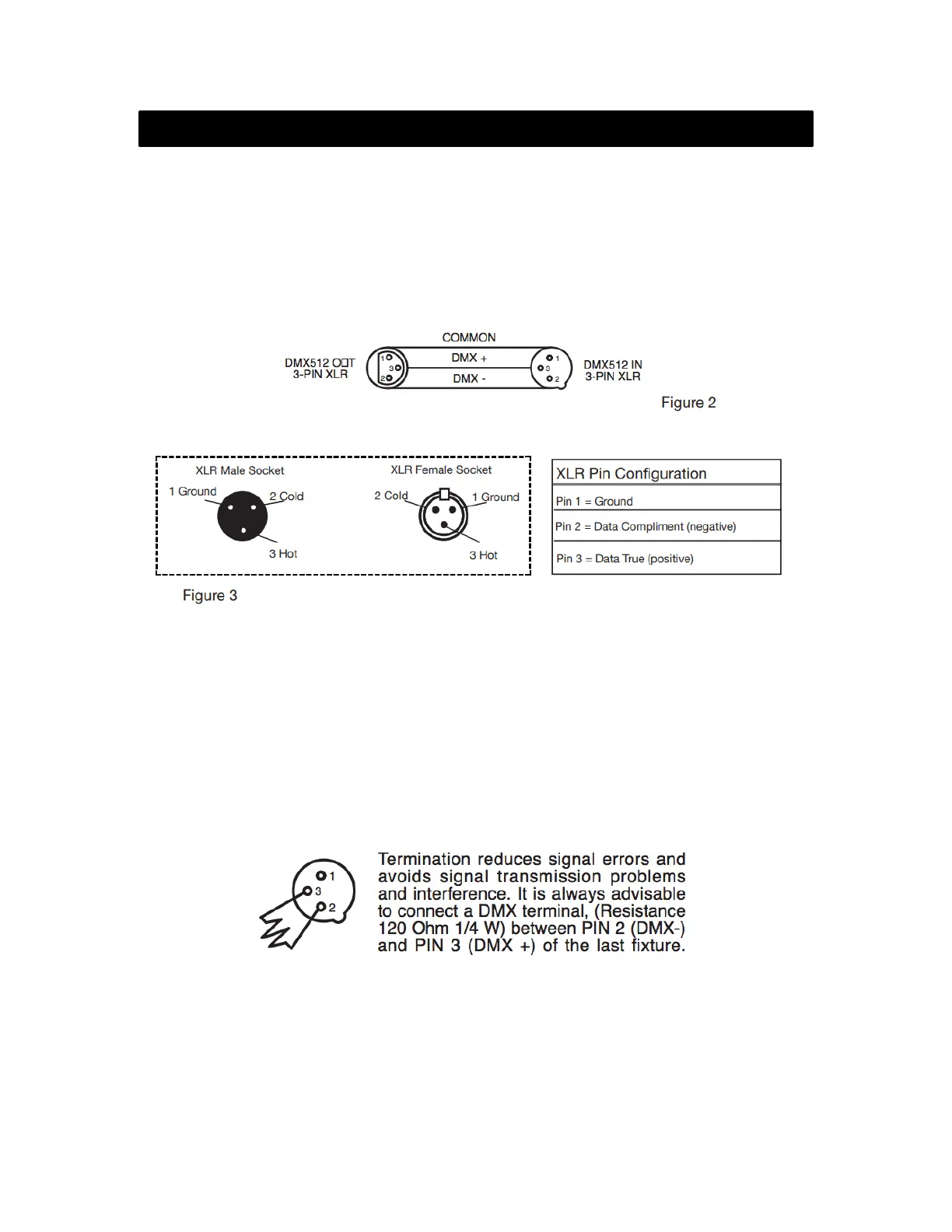

ADJ Products, LLC ! ww.adj.com ! VIZI CMY 16RX User Instructions Page 13
Notice: Be sure to follow figures two and three when making your own cables.
Do not use the ground lug on the XLR connector. Do not connect the cable’s
shield conductor to the ground lug or allow the shield conductor to come in
contact with the XLR’s outer casing. Grounding the shield could cause a short
circuit and erratic behavior.
Special Note: Line
Termination:
When longer runs of cable are used, you may
need to use a terminator on the last unit to avoid erratic behavior. A terminator is a
110-120 ohm 1/4 watt resistor, which is connected between pins 2 and 3 of a male
XLR connector (DATA + and DATA -). This unit is inserted in the female XLR
connector of the last unit in your daisy chain to terminate the line. Using a cable
terminator (ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
VIZI CMY 16RX
DMX Setup
Figure 4
DMX512 IN
3-PIN XLR
