ADJ Products, LLC ! ww.adj.com ! VIZI CMY 16RX User Instructions Page 12
Power Supply: The Vizi CMY 16RX contains an electronic ballast, which will auto
sense the voltage when it is plugged into the power source. With the electronic
ballast you do not need to worry about wall voltage, this unit can be plugged in
anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal
pro
tocol used
by most lighting and controller manufactures as a form of communication
between intelligent fixtures and controllers. A DMX controller sends DMX data
instructions from the controller to the fixture. DMX data is sent as serial data that
travels from fixture to fixture via the DATA “IN” and DATA “OUT” XLR terminals
located on all DMX fixtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of different
manufactures to be linked together and operate from a single controller, as
long as all fixtures and the controller are DMX compliant. To ensure proper
DMX data transmission, when using several DMX fixtures try to use the
shortest cable path possible. The order in which fixtures are connected in a DMX
line does not influence the DMX addressing. For example, a fixture assigned a
DMX address of 1 may be placed anywhere in a DMX line, at the beginning, at
the end, or anywhere in the middle. Therefore, the first fixture controlled by the
controller could be the last fixture in the chain. When a fixture is assigned a
DMX address of 1, the DMX controller knows to send DATA assigned to address
1 to that unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements: The Vizi CMY 16RX can be controlled
via DMX-512 protocol. The Vizi CMY 16RX has two DMX channel modes (22
channel mode and 24 channel mode). The DMX address is set electronically using
the controls on the rear panel of the unit. Your unit and your DMX controller require
an approved DMX-512 110 Ohm Data cable for data input and data output (Figure
1). We recommend AccuCable DMX cables. If you
are making your own cables, be sure to use standard
110-120 Ohm shielded cable (This cable be
purchased at almost all professional sound and
lighting stores). Your cables should be made with a
male and female XLR connector on either end of the
cable. Also remember that DMX cable must be daisy
chained and cannot be split.

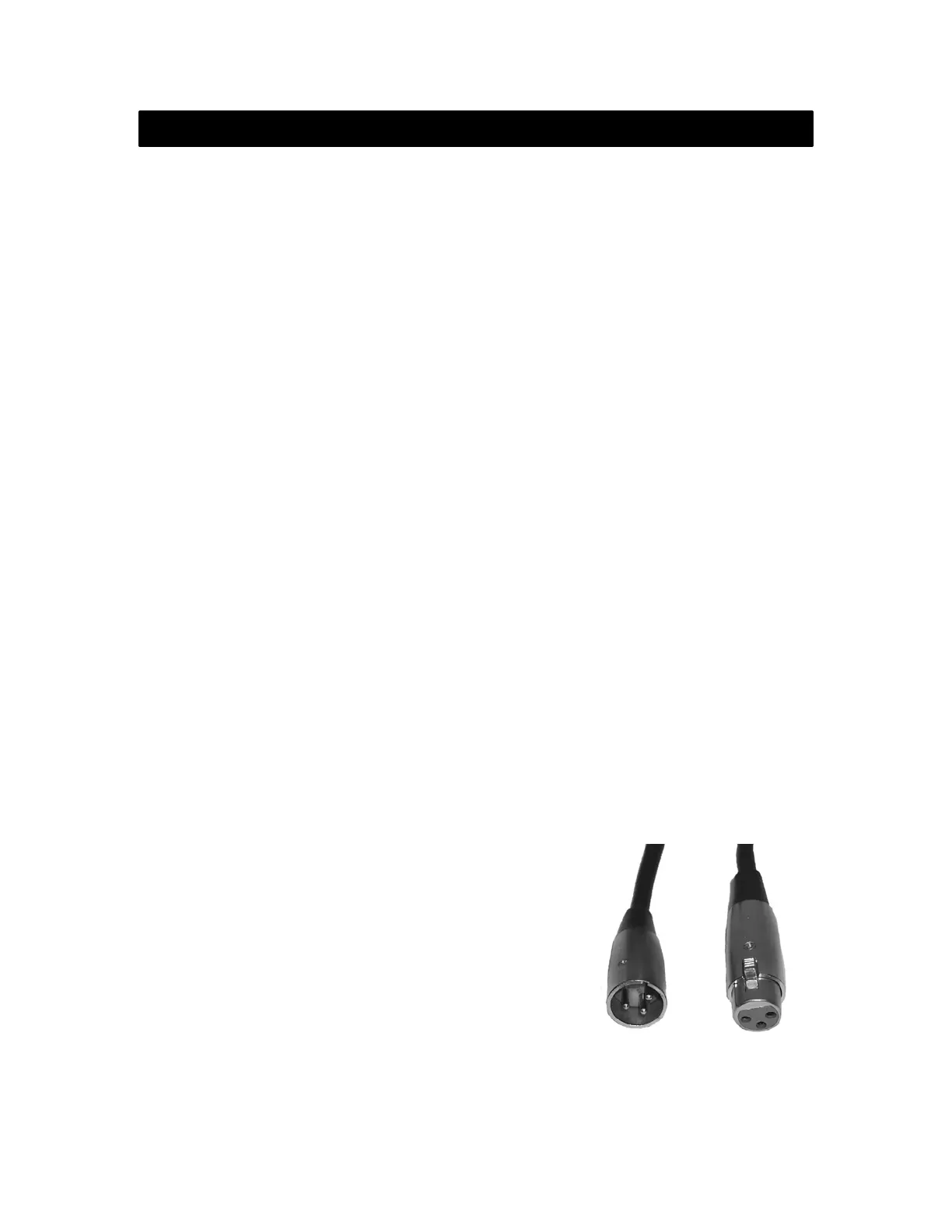

VIZI CMY 16RX
DMX Setup
Figure 1
