Dimmer Manager software
Instruction Manual - page 27
Issue: 004
Lighting Technologies

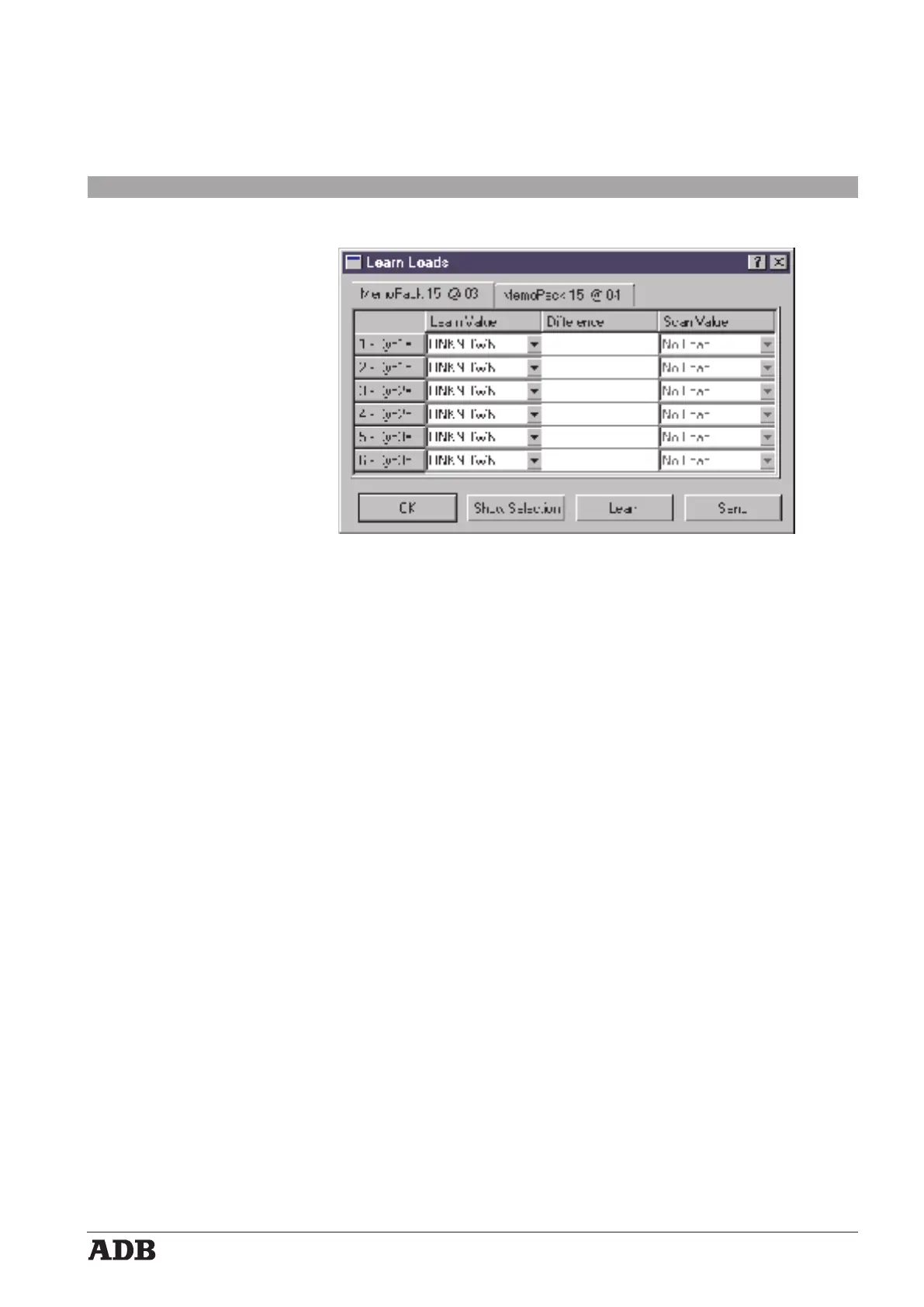

This opens a dialogue window "Learn Loads"
To perform a Learn Loads to the dimmers which are used in the show
• click Show Selection (this will highlight the Used dimmers)
• click Learn
To perform a Learn Load for all the dimmers in the selected units
• click Learn
You can follow the progress of the process.
• click Exit to close the window
Note: when you apply Learn Loads to several dimmer units, the tests will run simultaneously in
all the selected units. Learning a complete system takes about as long as learning its
largest dimmer unit.
Note: Learn Loads affects the lights on stage. When you apply Learn Loads to a dimmer unit,
this will set all its dimmers to Off, and will fade up each dimmer in turn. Partial testing of the
system, without affecting the other dimmers, is easy because you can select the dimmer
units to be Learned.
Note: if a dimmer has been set to the NonDim law in the dimmer unit, then that dimmer will be
skipped by Learn Loads and the Learn value will show “NonDim”. This is to protect the
load: the Learn Loads process fades up the dimmer level, and setting a local NonDim law
implies that you don’t want that load to be dimmed.
Scan Loads
Scan Loads tests the dimmers, measures the connected load, and compares it with the Learned
value.
• select the dimmer units
• Menu Bar > Dimmers > Command > Scan Loads
This opens a dialogue window "Scan Loads".
To perform a Scan Loads only on the dimmers which are used in the show
• click Show Selection (this will highlight the Used dimmers)
• click Scan
To perform a Scan Loads for all the dimmers in the selected dimmer units
• click Scan
You can follow the progress of the process.
• click Exit to close the window
