Linking Effects

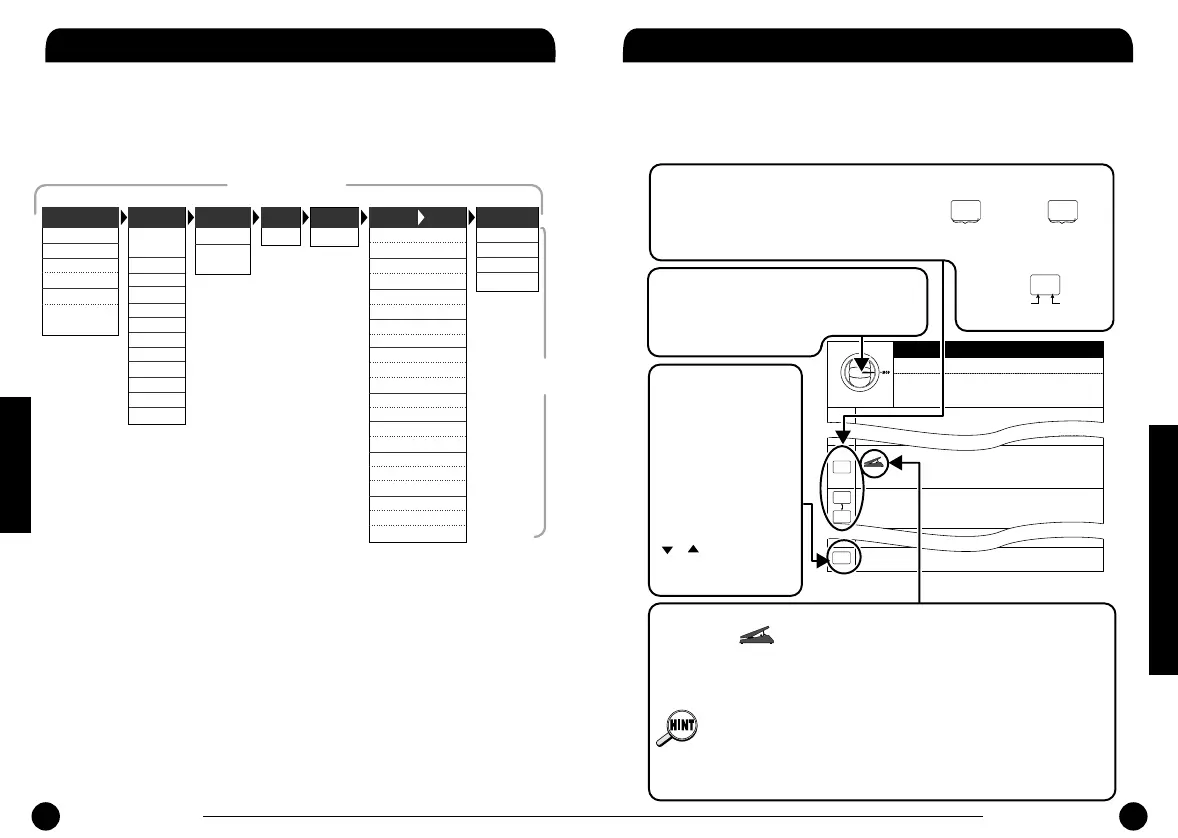

The patches of the 506 II consist of seven serially linked effect
modules, as shown in the illustration below. (The maximum number of
effects that can be used simultaneously is 8.) You can use all effect
modules or selectively set certain modules to on or off.
Within the effect modules, you can select an effect type from several
possible choices. For example, the COMP module contains various
compressor and limiter effect types, from which you can choose one.
The MOD module allows you to choose two effect types
simultaneously, such as OCTAVE > CHORUS.
COMPRESSOR
LIMITER
FAT WAH
PEDAL FAT WAH
RESONANT WAH
PEDAL
RESONANT WAH
BANDPASS
ENH
HIPASS ENH
CLEAN 1
CLEAN 2
RICH
FAT
SLAP
EDGE
DRIVE
VINTAGE
FUZZ
THRASH
4 BAND EQ
PHASE
SHIFT
ZNR
AMP SIM CHORUS 1
PEDAL CHORUS 1
CHORUS 2
PEDAL CHORUS 2
FLANGER
PEDAL FLANGER
STEP
PEDAL STEP
CRY1
CRY2
PEDAL CRY
DEFRET
PEDAL DEFRET
BASS SYNTH
PEDAL BASS SYNTH
OCTAVE
OCTAVE>CHORUS
PEDAL OCTAVE
PITCH SHIFT
PEDAL PITCH DOWN
PEDAL PITCH UP
DELAY
ECHO
HALL
ROOM
AMP
ZNREQCOMP DIST MOD CHO
DLY/REV
Effect module
Effect
type
Effect Types and Parameters
Starting on the next page, all effect types in all effect modules are
listed, together with their parameters.
How to read the listing
MOD
MOD module basic parameters
CHORUS (Chorus)
This effect mixes a variable pitch-shifted component to the original signal,
resulting in full-bodied and expansive sound. Higher setting values result
This effect module comprises modulation effects such as
chorus, flanger, and octaver. Use the [+]/[-] keys to select
the effect type and adjust the effect intensity.
OFF (Off)
Turns the MOD module off.
PEDAL BASS SYNTH (Pedal Bass Synthesizer)
Using the expression pedal (FP01/FP02) connected to the
CONTROL IN jack, the mixing ratio of b2 effect sound and original sound
can be adjusted.
OCTAVE (Octaver)
This effect downshifts the sound by one octave and mixes it to the original
sound. Higher right-digit setting values result in a higher effect sound ratio.
o
F
o
1
o
6
b
P
[PLAY/EDIT] selector
The drawing of the [PLAY/EDIT] selector
shows the position which is used to call up
that module and parameter.
Display
The display example shown at the left side of
the effect parameter listing shows the setting
that can be adjusted with the [+]/[-] keys.
Which setting this is depends on the module.
Module on/off
For every effect module,
the last basic parameter
setting is " ". When this
is selected, the respective
module is turned off,
which means that it will
not affect the sound output
by the 506 II. (The effect
is the same as when both
[ ]/[ ] foot switches are
pressed together in edit
mode.)
F
U
Effect type
only shown
Effect type
4
0
Parameter setting
value only shown
Setting value
Setting
value
C
9
Effect type and parameter
setting value shown
Effect type
Expression pedal
A pedal icon ( ) in the listing indicates a parameter that can be controlled
with the expression pedal (FP01/FP02).
When such a parameter is selected, the respective module can be controlled in
real time with a connected expression pedal.
When a parameter marked with a pedal icon is selected, the
sound will correspond to the representative setting of that effect.
If there is no parameter marked with a pedal icon selected in the entire patch,
the expression pedal operates as a volume pedal.
o
F
Effect Types and Parameters
Linking Effects
